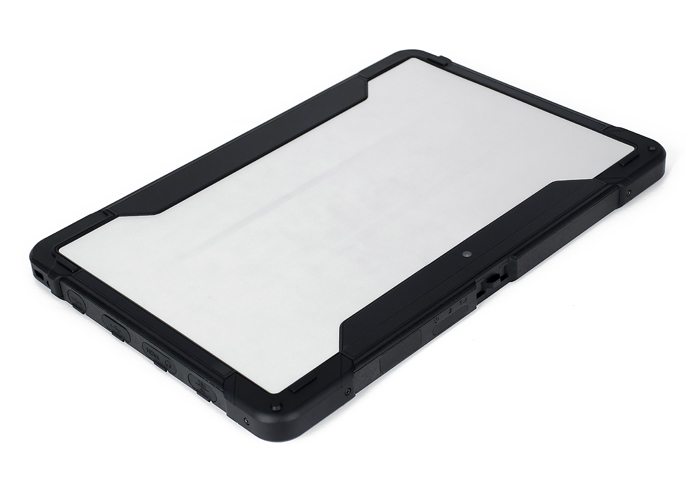

| BL11 11.6 inch rugged notebook,rugged laptop.tough notebook |
| Type | Details | Standard Configuration |

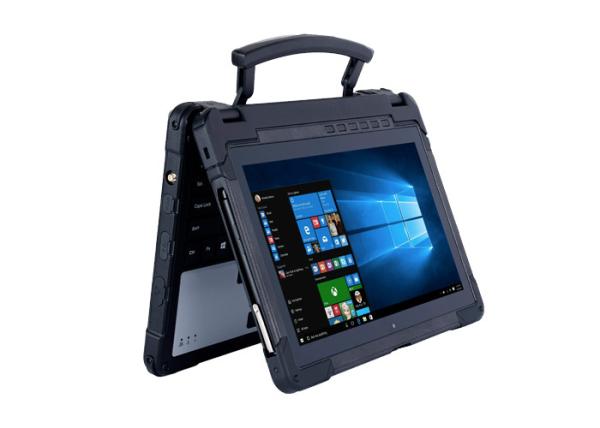

| Product Form | Product Form | 11.6 inch 2in1 reinforce notebook |
| Dimension | 305*205*16.5 mm (host) |
| Weight | Bare machine 3140g |
| Device Color | Silver+black |
| LCD | Screen Size | 11.6“ 16:9 |
| Resolution | 1920(H)×1080(V) |
| Brightness | 350cd/㎡ |
| TP | Touch panel | ,G+G,Corelle gorilla, hardness over 7H, scratch resistant,TP
thickness:1.1mm,COF,support windows ink |
| Camera | Front | Front 2.0MP |
| Rear | Rear 8.0MP (USB) |
| Speaker | Built-in | Embedded 8Ω/0.8W waterproofBOX horn x1 |
| Built-in | Sensitivity:-42db, output impedance2.2kΩ |
| Mic | Built-in | NA |
| keyboard | Built-in | 78 key IP65 waterproof keyboard |
| Battery(host ) | type | Li_polyment,battery loadable |
| capacity | 5000mHA/7.4V |
| Duration of flight | 6 hours (default 50% volume, default 200 lumens brightness, play
1080p HD video) |
| Battery(keyboard) | Type | Built in polymer lithium ion battery |
| Capacity | 6300mHA/7.4V |
| Duration of flight | 5 hours (default 50% volume, default 200 lumens brightness, play
1080p HD video) |
| System Hardware Configuration |
| Type | Details | Descriptions |
| CPU | Type | Intel®skylake Core™ m3-7Y30 |
| Speed | 4M Cache, 2.60 GHz |
| GPU | Type | Intel® HD Graphics 515 |
| RAM | DDR3L | 8GB |
| SSD | NGFF SSD | 128GB |
| Compass | Built-in | Compass |
| gyroscope | Built-in | gyroscope |
| Honeywellswitch | hall | hall |
| G_sensor | Built-in | g-sensor |
| Internet Connections |
| Type | Details | Description |
| WIFI | WIFI module | WIFI 802.11(a/b/g/n/ac) frequency 2.4G+5.8G double frequency WIFI |
| Bluetooth | Built-in | BT4.1 (BLE) class1 transmission distance:10m |
| 3G | Built-in | FIBOCOM_H380-GL frequency range:GSM/GPRS/EDGE
Band(850&900&1800&1900 MHZ), WCDMA
Band(850&900&1900&2100MHz),HSDPA 21Mbps,HSUPA 5.76 Mbps |
| 4G | option | ME936 LTE M.2
LTE: B1/B2/B3/B4/B5/B7/B8/B13/B17/B20
WCDMA/HSDPA/HSUPA/HSPA+ :850MHZ/900MHZ/1700
MHZ(AWS)/1900MHZ/2100MHZ
GPRS/EDGE:850MHZ/900MHZ/1800MHZ/1900MHZ
GPS/GLONASS:L1 |
| GPS | Built-in | U-blox NEO-7,support :GLONASS,QZSS,GPS;acquisition sensitivity:-160
dBm；Cold start time:<30 second,Hot start time:<28
second,frequency:0.25 Hz … 10 MHz (configurable) |
| Data collection |
| Type | Details | Description |
| Two-dimension code | option | 2D QR code Scanner: Honeywell N3680 Hardware decode
Scan Speed: 50 times/s
Optical resolution: 5mil
Support code system: PDF417, MicroPDF417, Data Matrix, Data Matrix
Inverse Maxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec
Inverses, Han Xin, Han Xin Inverse. |
| Fingerprint | option | S22A (FPC1020 sensor, capacitive press type),120MHz basic
frequency,1M Bits Flash Memory,128KB SRAM,Processing speed:
fingerprint feature extraction take time<0.45 |
| Interface |
| Type | Details | Description |
| USB3.0 | USB3.0 | USB3.0*1 host |
| Earphone Jack | Earphone Jack | ∮3.5mm standard earphone interface x1 host |
| HDMI C | HDMI C | HDMI C x1 host |
| TF Card | TF Card | support SDHC/SDXC x1 max:64G host |
| SIM Card | SIM Card | SIM card x1 host |
| DC interface(host) | DC interface | DC 12V 4A power interface x1 host |
| GPS antenna interface SMA | antenna interfaceSMA | GPS_SMA x1 keyborad |

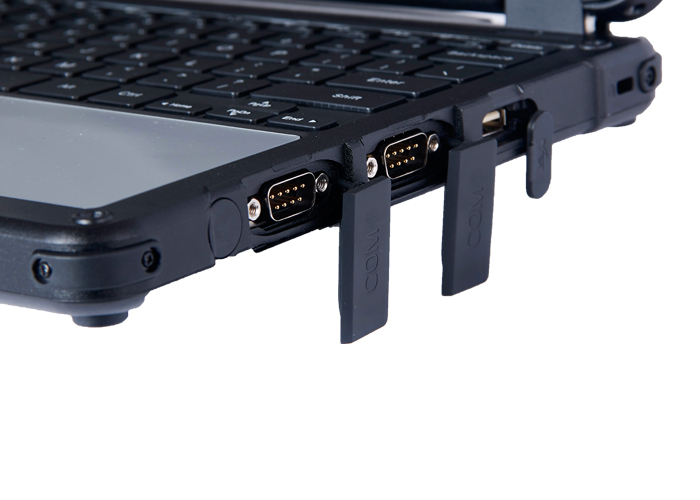

| Serial port interface | serial port | DB9 (RS232,RS485) ×2 keyborad |
| RJ45 interface | ethernet | 10/100Mbps self-adaption ×1 keyborad |
| USB2.0 | USB2.0 | USB2.0*2 keyborad |
| DC interface(keyboard) | DC interface | DC 12V 4A power interface x1 |
| Air socket | Air socket | option Air socket x1 |
| Key |
| Type | Details | Description |
| power | Power key | x1 |
| volume | volume+_ | Volume subtraction x2 |
| Windows home | Windows home | Windows home x1 |
| system keyboard | system keyboard | System soft keyboard x1 |
| F KEY | barcode scan key | Barcode scanning (back of machine) |
| Standard Accessories |
| Type | Details | Description |
| Power adaptor | Standard | AC100V ~ 240V,50Hz/60Hz outputting DC 12V/4A CE certification |
| Software Configuration |
| Type | Details | Description |
| Operation system | Operation system
version | windows 10 HOME 64bit default language: English Option Windows 10
IOT/Pro/enterprise |
| Product Certificate |
| Type | Details | Description |
| Certificates System | IP65 | IP65 report: Waterproof test: IP-x5, dustproof test: IP-6X
a.ozzle bore: 6.3mm; B. water flow: 12.5 + 0.625L/min;
c.Water pressure: according to the regulation of water flow
regulation;
d. the main part of the main flow: a circle about 40mm in diameter
from the nozzle 2.5m;
e.Shell surface water per square metre: About 1min; F. test time:
at least 3min;
g.Nozzle to shell surface distance: 2.5 ~ 3m.
After test, the sample is not flooded |
| CE | |
| 810G | |
| Reliability |
| Type | Details | Description |
| Product reliability | Fall height | 100cm composite wooden floor boot status |
| Work temperature | ‘-20 °C to 60 °C -4 °F to 140 °F |
| Storage temperature | ’-30 °C to 70 °C / -22 °F to 158 °F |
| Humidity | Humidity: 95% Non-Condensing |
