Handheld PDA With Thermal Printer Handheld Terminal With Printer

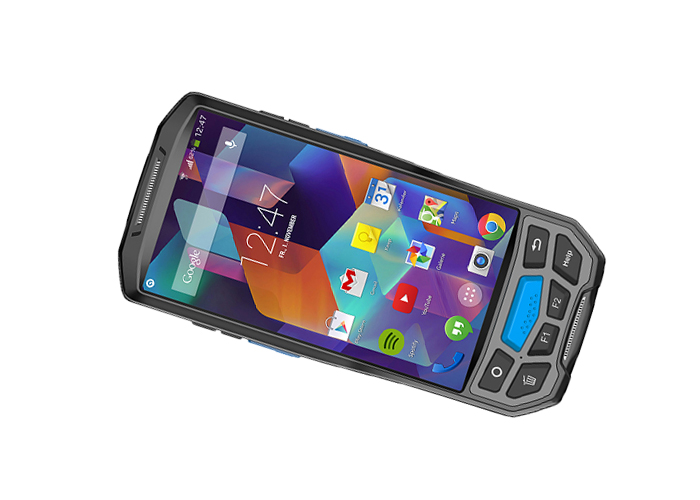

PDA Handheld BH98
Dual band WIFI,BT 4.0,2G/3G/LTE data transfer
Back 8.0M camera
4800mah big battery continuously working 8-10 hours
IP65 5 inch
MTK Quad core Android 7 o.s
Corning touch panel and Double injection mould housing for better
shockproof
Big memory 2GB RAM and 16GB ROM
GPS navigation
Optional LF 125K,fingerprint for security etc
Standard accessories hand strap,charger,USB cable etc
Option docking station
| Physical Parameters | Weight | 389g,including battery |
| Size | 172mm(L) X 80mm(W) X 27mm(D) |
| Basic | CPU | Quad A53 1.3GHz quad-core |
| Memory | 2GB+16GB |
| OS | Android 7.0 |
| Display | 5.0 inch Corning Gorilla glass,IPS TFT-LCD, 1280x720 |
| Touch Screen | 5 point capacitive touch screen backlight |
| WWAN | TDD-LTE (B1/B2/B3/B5/B7/B8/B20),FDD-LTE (B40),WCDMA B1,B2,B5,B8,GSM
Quad band |
| Camera | 8.0MP Camera, Auto-focus with LED flash |
| WIFI | 2.4GHz/5.8GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac |
| Bluetooth | Support Bluetooth 2.0+EDR/3.0+HS/4.1+HS, transmission distance is
5-10m |
| GPS | GPS(embedded A-GPS), accuracy of 5m |
| Battery | Rechargeable li-ion polymer, 3.7V, 4800mAh |
| Optional Modules |
| Thermal printer | Effective print width | 58mm |
| Print method | Thermal line printing |
| Print speed | Up to 90mm/sec |
| Resolution | 8 dots/mm(203dpi) |
| Print font | 12x24/ 24x24 |
1D Barcode
(Optional) | Module | HONEYWELL N4313, Minde966 |
| Support | All major 1D barcodes, Code 39, Code 93, Code 128, Code bar,
EAN-13, EAN-8, UPC-A, UPC-E, ITF 14, UCC/EAN-128, etc |
2D Barcode
(Optional) | Module | HONEYWELL N6603, HONEYWELL N3680, NewLand 3096 |
| Support | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code,
Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US
Planet, Dutch Postal. etc. |
Fingerprint
(Optional) | Sensor types | TCS2SS, Capacitive, area sensor 508 DPI or FBI certification
fingerprint |
| Performance | FRR<0.008%, FAR<0.005% |
| Capacity | 1000 |
RFID
(Optional) | Ultra High frequency | 1-1.5 m distance for EPC C1 GEN2/ISO 18000-6C protocol of
865~868MHz or 920~925MHz tag reading, Circular antenna(2dBi) |
| HF/NFC | 2-8 cm range for ISO15693, ISO14443A double deal 13.56 MHz tags for
reading and writing |
| PSAM | Support two PSAM card |
| Low frequency | 125KHz/134.2KHz, ISO 11784&11785, reading range up to 2-10cm |
| Development Environment |
| SDK | HHW Software Development Kit |
| Language | Java |
| Environment | Android Studio or Eclipse |
| Accessories |
| Accessories | Standard | 1xPower Supply; 1xLithium Polymer Battery;1xUSB data cable |
| Optional | Cradle docking station and bag |
| Other features |
| Environment | Operating temperature | (-20℃) - (50℃) |
| Storage temperature | (-20℃) - (70℃) |
| Relative humidity | 5%RH to 95%RH |
| ESD | ±15kv air discharge, ±8kv direct discharge |
Bright Alliance Services
We focus on rugged tablet and handheld pda over 8 years.
We can support completely Free SDK and technical support for you.
ODM/OEM customization services according to your requirements.
12 months warranty for your devices and other parts. and 6 months
for the batteries. Free maintenance of the devices and part of
accessories replacement in the warranty .if out of the warranty,
you'll have to pay the basic cost for them.
And experienced sales have better communication to get what you
need and save your time
FAQ
Q: What kind of services do you support ?
1.We provide you Free SDK and Technical Support
2.We also provide ODM/OEM Customization Services based to your
demands.
3.We support 12 months Warranty for all the device and 6 months for
the batteries. Extension warranty, it costs 10% at the first year,
and 20% for the second year.
Q: Are you a manufacturer of rugged devices?
Yes, we have our own R&D team including software and hardware
engineers and assembly factory,mainly producing industrial PDA and
rugged tablet ,.
Q:how many pcs we have sold one year.
A:we sold 30000 pcs one year
Q: How can I pay for the order?
A: Our payment terms: T/T, Western Union, Paypal, Credit card
1) For sample order: 100% T/T or Western Union in advance, Paypal
is also acceptable.
2) For bulk order: 40%deposit T/T in advance, balance clear before
pick up or shipment.
Q: Do you have any devices with thermal printer?

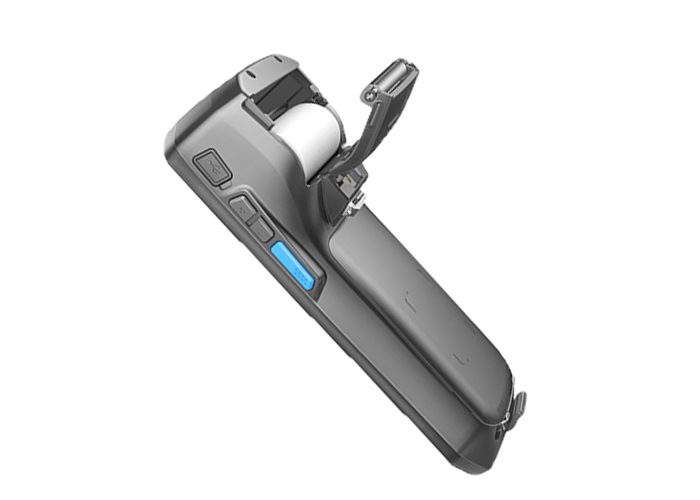

Yes.BH98 it is 5.0 inch with width 58mm thermal printer
Q: do you have any bags to make hands free?
Yes,we customized a bags to carry it
Q: how many modules can be in one devices?
For BH88,normally we can add 3-4 modules,but better within 3
modules.for example
2D+UHF,2D+Barcode scanner,UHF+Fingerprint etc
Q: do you have any certification for the model?
Yes,now we passed CE/IP65 etc certification.
