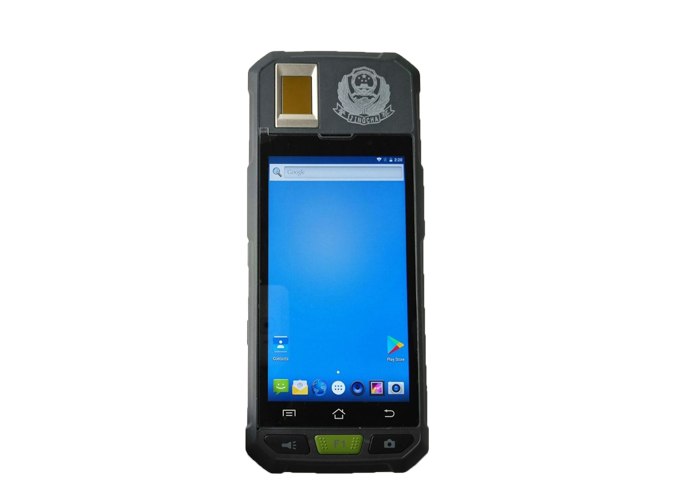

Handheld Computer Rugged Handheld PDA Handheld Android Pos Terminal
BH88
2GB RAM /16GB ROM memory
Dual band WIFI,BT 4.0,2G/3G/LTE data
5 inch IP65 Handheld rfid reader with option 1D/2D Barcode
scanner,front NFC or LF
Android 7.0 o.s all in one
Corning touch panel and Double injection housing for better
protection
Support GPS navigation
Back 8.0 M/Front 2.0M
Removable 4750mah big battery
Standard accessories hand strap,USB cable etc
Scenario: secondary development according to our SDK to fulfill
some special projects
| Android multi function PDA BH88 |
| Model No. | BH88 |
| IP Standard | IP65 Waterproof/Shockproof |
| Drop rating | 1m drop to concrete across the operating temperature range |
| Basic | CPU | Quad A53 1.3GHz quad-core |
| Memory | 2GB+16GB |
| OS | Android 7.0 |
| Display | Gorilla Glass 3, 5.0 inch, TFT-LCD, 1280x720 |
| Touch Screen | 5 point capacitive touch screen backlight |
| WWAN | TDD-LTE B38/B39/B40 FDD-LTE B1/B2/B3/B4/B7/B17/B20
WCDMA 850/1900/2100MHz
GSM 850/900/1800/1900MHz |
| Camera | 2.0MP+8.0MP Camera, Auto-focus with LED flash |
| WIFI | 2.4GHz/5GHz Dual Frequency, IEEE 802.11 a/b/g/n |
| Bluetooth | Bluetooth v4.0 |
| GPS | GPS(embedded A-GPS), accuracy of 5 m |
| Battery | Rechargeable li-ion polymer, 3.7V, 4750mAh |
| Optional Modules |
RFID
(Optional) | Ultra High frequency | 2-4 m distance for EPC C1 GEN2/ISO 18000-6C protocol of 865~868MHz
or 902~928MHz tag reading, Circular antenna(2dBi) |
| High frequer | 0-7 cm range for ISO15693, ISO14443A double deal 13.56 MHz tags for
reading and writing |
| PSAM | Support two PSAM card(optional) |
| Low frequency | 125KHz/134.2KHz(FDX-B/HDX), ISO 11784&11785, reading range up
to 2-10cm |
Active in Close Communication
(Optional) | Active 2.45G | Reading range more than 200 m |
| 433MHz | Reading range more than 200m |
1D Barcode
(Optional) | Module | Honeywell N431x |
| Support | All major 1D barcodes, Code 39, Code 93, Code 128, Code bar, EAN-8,
UPC-A, UCC/EAN-128, ITF 25, Matrix 25, EAN-128, ISBN, ect. |
2D Barcode
(Optional) | Module | Honeywell N6603 |
| Support | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code,
Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US
Planet, Australian Postal, Japan Postal, . etc. |
Fingerprint
(Optional) | Sensor types | TCS1CT, Capacitive, area sensor 508 DPI or FBI certification
fingerprint |
| Performance | FRR<0.008%, FAR<0.005% |
| Capacity | 1000 |
| PSAM SECURITY(OPTIONAL) | Protocol | ISO 7816 |
| Baudrate | 9600, 19200, 38400,43000, 56000, 57600, 115200 |
| Slot | 2 slots(maximum) |
| Development Environment |
| SDK | HHW Software Development Kit |
| Language | Java |
| Environment | Android Studio or Eclipse |
| Accessories |
| Accessories | Standard | 1xPower Supply; 1xLithium Polymer Battery; 1xDC charging cable;
1xUSB data cable |
| Optional | Carrying case; Docking Cradle |
| Other features |
| Environment | Operating temperature | (-20℃) - (50℃) |
| Storage temperature | (-20℃) - (70℃) |
| Relative humidity | 5%RH to 95%RH |
| ESD | ±15kv air discharge, ±8kv direct discharge |
| Physical Parameters | Weight | 450g(including battery and wrist strap) |
| Size | 195mm(H)x82mm(W)x23mm(D)±2 mm |
FAQ
Question 1: How about the shockproof of your models?
For professional rugged devices manufacture,we will make shockproof
from 3 items
1. Corning Gorilla glass
2. Housing,we use double injection mould or outside rubber+inside
Aluminum Alloy/magnesium Alloy
Inside structure
Question 2: Would you like to supply 1 sample for testing?
Yes, Of course. We can provide 1 sample android rugged tablet for
your testing.
Question 3: What's the total price for 1 sample?
As a manufacturer of rugged devices,the more you buy, the cheaper
it'll be.
The sample price is a little bit higher than the common wholesale
price excluding the freight fee.
Question 4: What's for payment term and delivery term ?
1.It's generally 40%-100% TT in advance for all orders. Meanwhile,
Paypal or West Union is acceptable.
2. Exw Shenzhen or FCA HK as Trade Term.
Question 5: Do you have any devices with front NFC reader?
Yes.we have many models the NFC on the front or Top.because
traditional NFC reader if on the backside.it will be block by
holding hands.
Bright Alliance based on the continuous development of industrial
terminal technology, and independently develops the industrial
rugged devices, including rugged handheld PDA and rugged tablet.And
a variety of accessories can be selected to meet customers' demand
for industry, aviation, aerospace, vehicle-mounted, police,
education, exploration, fishing animal husbandry, finance and other
industries
