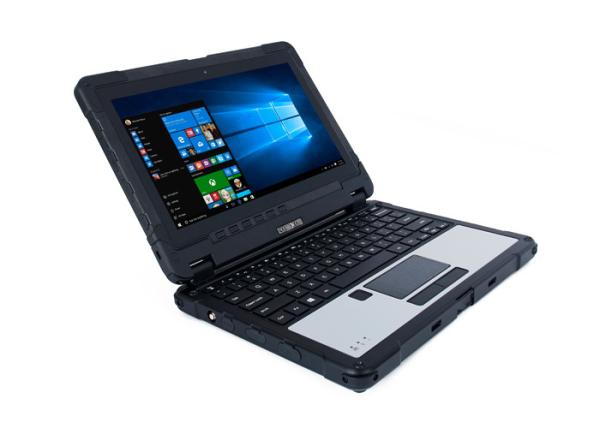

Tough Rugged Laptops Rugged Laptop Tablet Heavy Duty Notebook BL11
Military grade laptop IP65 and 11.6 inch,Corning Gorilla glass
touch panel and double injection mould housing, 2.6GHZ
Intel®kabylake CPU and Linux os,2.0M front camera and 8.0M rear
one,2.4G/5.8G Dual band WIFI,BT 4.1 and 2G/3G/LTE etc wireless
technology,totally 11300mah big battery to make it continuously
working 10-14 hours, And there are HDMI,USB 3.0,Type A,RS232,RS485
etc ports,external GPS SMA
| BL11 11.6 inch rugged notebook,rugged laptop.tough notebook |
| Type | Details | Standard Configuration |
| Product Form | Product Form | 11.6 inch 2in1 reinforce notebook |
| Dimension | 305*205*16.5 mm (host) |
| Weight | Bare machine 3140g |
| Device Color | Silver+black |
| LCD | Screen Size | 11.6“ 16:9 |
| Resolution | 1920(H)×1080(V) |
| Brightness | 350cd/㎡ |
| TP | Touch panel | ,G+G,Corelle gorilla, hardness over 7H, scratch resistant,TP
thickness:1.1mm,COF,support windows ink |
| Camera | Front | Front 2.0MP |
| Rear | Rear 8.0MP (USB) |
| Speaker | Built-in | Embedded 8Ω/0.8W waterproofBOX horn x1 |
| Built-in | Sensitivity:-42db, output impedance2.2kΩ |
| Mic | Built-in | NA |
| keyboard | Built-in | 78 key IP65 waterproof keyboard |
| Battery(host ) | type | Li_polyment,battery loadable |
| capacity | 5000mHA/7.4V |
| Duration of flight | 6 hours (default 50% volume, default 200 lumens brightness, play
1080p HD video) |
| Battery(keyboard) | Type | Built in polymer lithium ion battery |
| Capacity | 6300mHA/7.4V |
| Duration of flight | 5 hours (default 50% volume, default 200 lumens brightness, play
1080p HD video) |
| System Hardware Configuration |
| Type | Details | Descriptions |
| CPU | Type | Intel®skylake Core™ m3-7Y30 |
| Speed | 4M Cache, 2.60 GHz |
| GPU | Type | Intel® HD Graphics 515 |
| RAM | DDR3L | 8GB |
| SSD | NGFF SSD | 128GB |
| Compass | Built-in | Compass |
| gyroscope | Built-in | gyroscope |
| Honeywellswitch | hall | hall |
| G_sensor | Built-in | g-sensor |
| Internet Connections |
| Type | Details | Description |
| WIFI | WIFI module | WIFI 802.11 frequency 2.4G+5.8G double frequency WIFI |
| Bluetooth | Built-in | BT4.1 (BLE) class1 transmission distance:10m |
| 3G | Built-in | FIBOCOM_H380-GL frequency range:GSM/GPRS/EDGE
Band(850&900&1800&1900 MHZ), WCDMA
Band(850&900&1900&2100MHz),HSDPA 21Mbps,HSUPA 5.76 Mbps |
| 4G | option | ME936 LTE M.2
LTE: B1/B2/B3/B4/B5/B7/B8/B13/B17/B20
WCDMA/HSDPA/HSUPA/HSPA+ :850MHZ/900MHZ/1700
MHZ(AWS)/1900MHZ/2100MHZ
GPRS/EDGE:850MHZ/900MHZ/1800MHZ/1900MHZ
GPS/GLONASS:L1 |
| GPS | Built-in | U-blox NEO-7,support :GLONASS,QZSS,GPS;acquisition sensitivity:-160
dBm；Cold start time:<30 second,Hot start time:<28
second,frequency:0.25 Hz … 10 MHz |
| Data collection |
| Type | Details | Description |
| Two-dimension code | option | 2D QR code Scanner: Honeywell N3680 Hardware decode
Scan Speed: 50 times/s
Optical resolution: 5mil
Support code system: PDF417, MicroPDF417, Data Matrix, Data Matrix
Inverse Maxicode, QR Code, QR Inverse, Aztec,etc |
| Fingerprint | option | S22A (FPC1020 sensor, capacitive press type),120MHz basic
frequency,1M Bits Flash Memory,128KB SRAM,Processing speed:
fingerprint feature extraction take time<0.45 |
| Interface |
| Type | Details | Description |
| USB3.0 | USB3.0 | USB3.0*1 host |
| Earphone Jack | Earphone Jack | ∮3.5mm standard earphone interface x1 host |
| HDMI C | HDMI C | HDMI C x1 host |
| TF Card | TF Card | support SDHC/SDXC x1 max:64G host |
| SIM Card | SIM Card | SIM card x1 host |
| DC interface(host) | DC interface | DC 12V 4A power interface x1 host |
| GPS antenna interface SMA | antenna interfaceSMA | GPS_SMA x1 keyborad |
| Serial port interface | serial port | DB9 (RS232,RS485) ×2 keyborad |
| RJ45 interface | ethernet | 10/100Mbps self-adaption ×1 keyborad |
| USB2.0 | USB2.0 | USB2.0*2 keyborad |
| DC interface(keyboard) | DC interface | DC 12V 4A power interface x1 |
| Air socket | Air socket | option Air socket x1 |
| Key |
| Type | Details | Description |
| power | Power key | x1 |
| volume | volume+_ | Volume subtraction x2 |
| Windows home | Windows home | Windows home x1 |
| system keyboard | system keyboard | System soft keyboard x1 |
| F KEY | barcode scan key | Barcode scanning |
| Standard Accessories |
| Type | Details | Description |
| Power adaptor | Standard | AC100V ~ 240V,50Hz/60Hz outputting DC 12V/4A CE certification |
| Software Configuration |
| Type | Details | Description |
| Operation system | Operation system
version | windows 10 HOME 64bit default language: English Option Windows 10
IOT/Pro/enterprise |
| Product Certificate |
| Type | Details | Description |
| Certificates System | IP65 | IP65 report: Waterproof test: IP-x5, dustproof test: IP-6X
a.ozzle bore: 6.3mm; B. water flow: 12.5 + 0.625L/min;
c.Water pressure: according to the regulation of water flow
regulation;
d. the main part of the main flow: a circle about 40mm in diameter
from the nozzle 2.5m;
e.Shell surface water per square metre: About 1min; F. test time:
at least 3min;
g.Nozzle to shell surface distance: 2.5 ~ 3m.
After test, the sample is not flooded |
| CE | |
| 810G | |
| Reliability |
| Type | Details | Description |
| Product reliability | Fall height | 100cm composite wooden floor boot status |
| Work temperature | ‘-20 °C to 60 °C -4 °F to 140 °F |
| Storage temperature | ’-30 °C to 70 °C / -22 °F to 158 °F |
| Humidity | Humidity: 95% Non-Condensing |
Bright Alliance Services
We focus on rugged tablet and handheld pda over 8 years.
We can support completely Free SDK and technical support for you.
ODM/OEM customization services according to your requirements.
12 months warranty for your devices and other parts. and 6 months
for the batteries. Free maintenance of the devices and part of
accessories replacement in the warranty .if out of the warranty,
you'll have to pay the basic cost for them.
And experienced sales have better communication to get what you
need and save your time
FAQ
Question 1: How about the rugged laptop memory?
Now our standard one it is 8GB+128GB.but ROM flash it can be 256 or
512M.
Question 2: for rugged laptop.do you have any other size one?
Yes,now we have 11.6 and 14 Inch one
Question 3: do you have Linux rugged tablet?
Yes, we have a 10.1 inch big memory 8GB+128GB Linux 16.04 model
BT616k
Question 4: What's your MOQ?
The MOQ of rugged tablet is 1 piece.
Question 5: How long is the delivery time?
The delivery time of rugged android tablet goods is different from
quantities:
for samples, It's about 3-5 working days;
If 100~500 pcs, it's about 10--20 working days;
If More than 500 pcs, It's about 20-30 working days.
Question 6: Would you like to supply 1 sample for testing?
Yes, Of course
Question 7: What's the total price for 1 sample?
As a manufacturer of rugged devices,the more you buy, the cheaper
it'll be.
The sample price is a little bit higher than the common wholesale
price excluding the freight fee.
