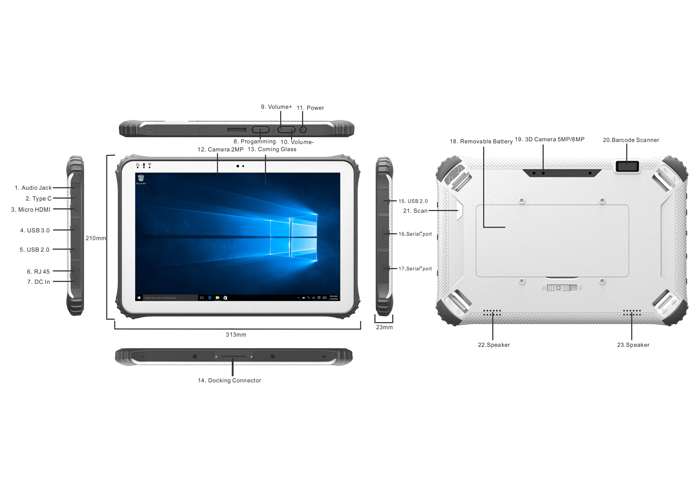

| Product Outlook |
| Type | Details | Standard Configuration |
| Product Form | Type | 12.2 inch Rugged Tablet (Optional keyboard ) |
| Dimension | 319.6*216*23.4 mm |
| Weight | 1500g |
| Device Color | black+black color(bottom shell black color,front shell black color) |
| LCD | Screen Size | 12.2 inch 16:10 |
| Resolution | 1920*1200 IPS |
| Brightness | 280cd/㎡ ,optional SLR Sunlight visible film |
| TP | Touch Panel | 10 points Capacitive,G+G,Corning Gorilla Rigidity: above
7H-Anti-scratch,TP thickness:1.1mm,COF,support handwrite |
| Camera | Front | front 2.0MP |
| Rear | rear 5.0MP |
| Speaker | Built-in | Embedded 8Ω/0.8W waterproof speaker x2 |
| Mic | Built-in | Sensitivity::-42db, output resistance 2.2kΩ |
| Battery | Type | Build in Lithium-ion polymer battery/large battery can hot plug
replacement |
| Capacity | 6500mHh/7.4V 1000mAh/7.4V (dual battery ) |
| Endurance | 6hrs(default 50% volumn,default200 lumens brightness play 1080P HD
video) |
| System Hardware Configuration |
| Type | Details | Description |
| CPU | Type | Intel®skylake Core™ m3-6Y30 |
| Speed | 4M Cache, up to 2.20 GHz |
| GPU | Type | Intel® HD Graphics 515 |
| RAM | DDR3L | 4GB |
| ROM | Emmc | 64GB |
| SSD | NGFF SSD | NA |
| Electronic compass | Built-in | Electronic compass |
| gyroscope | Built-in | gyroscope |
| G_sensor | Built-in | Gravity acceleration sensor |
| Network Connections |
| Type | Details | Descriptions |
| WIFI | WIFI module | WIFI 802.11(a/b/g/n) frequency 2.4G+5.8G dual band wifi, |
| Bluetooth | Built-in | BT4.0 (BLE) class1.5 transmission distance:10m |
| 3G | Built-in | FIBOCOM H380 WCDMA 900 MHz/2100 MHz GSM/GPRS/EDGE: 900MHz/1800 MHz |
| 4G | Built-in | ME936 LTE M.2 LTE: BI/B2/B3/B4/B5/B7/B8/B13/B17/B20
WCDMA/HSDPA/HSUPA/HSPA+: 850 MHz/900 MHz/1700 MHz
(AWS)/1900 MHz/2100 MHz
GPRS/EDGE: 850 MHz/900 MHz/1800 MHz/1900 MHz
GPRS: UL 85.6 kbps/DL 107 kbps
EDGE: UL 236.8 kbps/DL 296 kbps
WCDMA CS: UL 64 kbps/DL 64 kbps
WCDMA PS: UL 384 kbps/DL 384 kbps
HSPA+: UL 5.76 Mbps/DL 21.6 Mbps
LTE FDD: UL 50 Mbps/DL:100 Mbps @20M BW cat3 |
| GPS | Built-in | U-blox NEO-7,support :GLONASS,QZSS,GPS;Capture sensitivity:-160
dBm;Cool Start Time:<30‘,Hot start time:<28',frequency:0.25
Hz … 10 MHz (configurable) |
| NFC | Built-in | NXP NFC 13.56MHz SUPPORT ISO/IEC 14443A/14443B/15693/18092/mifare
mifare protocol,Card reading distance:4cm |
| Data Collection |
| Type | Details | Description |
| 1D | OPTIONAL | MOTO SE655E100R optical resolution: 5mil SCAN SPEED: 50times/s Code
support :UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code
128,GS1-128,ISBT 128,Code 39 |
| 2D | OPTIONAL | Honeywell N3680 hard decode optical resolution:5mil,scan
speed:50times/s Code support :PDF417, Data Matrix Inverse
Maxicode,QR Code, MicroQR, QR Inverse,Aztec,etc |
| Interface Configuration |
| Type | Details | Descriptions |
| TF slot | Extensive External Memory | support SDHC/SDXC x1 max:128G |
| SIM card slot | 3G/4G communication | SIM card x1 |
| USB interface | Extensive External Memory and data transmission | USB 2.0*2 (4pin) (Host)for windows |
| USB 3.0*1 (9pin) |
| Type C interface | USB2.0,charging,AV | Type c x1 |
| Earphone Jack | Audio Output | ∮3.5mm standard earphone jack x1 |
| DC Jack | Power | DC 12V 4A ∮3.5mm Power connector x1 |
| HDMI interface | AV Output | HDMI 1.4a x1 |
| Serial port Interface | serial port | DB9 (RS232) ×1, DB9 (RS485) ×1 |
| RJ45 interface | internet access | 10/100/1000Mbps self-adaption ×1 |
| Extensive Slot | pogo Pin | 12pin Pogo Pin x1 |
| Key |
| Type | Details | Descriptions |
| power | power on/off key | x1 |
| volume | VOL+ VOL- | VOL+ VOL- x2 |
| F KEY | Barcode scan key | barcode scan (backside of machine) x1 |
| program | progamming key | customized key function x2 |
| Standard Accessories |
| Type | Details | Description |
| handle | handle | handle |
| Option | | Keyboard | keyboard |
| Power Adaptor | Standard | AC100V ~ 240V,50Hz/60Hz output DC 12V/4A USA Standard CE approval |
| Software Configuration |
| Type | Details | Description |
| Operation System | OS version | windows 10 IOT 64bit Default language:English windows 10 Pro 64 bit |
| Product Certificate |
| Type | Details | Description |
| Certificate System | IP65 | IP65 Report: waterproof test:IP-X5,dustproof test: IP-6X
a.nozzle inner diameter: 6.3mm; b.water-carrying capacity:
12.5±0.625L/min;
c.water pressure;adjust according to specified water-carrying
capacity;
d.central part of main water flow:Away from the nozzle 2 . 5 m
diameter
about 40mm circle;
e.water spray time for outter shell per a square meter:about
1min;f. test time:at least 3min;
g. distance from nozzle to outter shell surface: 2.5～3m.
after tested,check sample and no water inside situation |
| CE-NB | Y |
| MIL-STD-810G | Y |
| Battery | UN38.3,MSDS,IEC62133 |
| Reliability |
| Type | Details | Descriptions |
| Product Reliability | Drop Height | 120cm composite wood floors, in operation status |
| Operate Temperature | ‘-10 °C to 50 °C (-20 °C to 60 °C optional ) |
| Store Temperature | ’-30 °C to 70 °C |
| Humidity | Humidity: 95% Non-Condensing |
