Ruggedized Android Tablet Rugged Android Tablet Ip67 Android Tablet
8.0 Inch BT86
Corning Gorrila tempered glass and Double injection mould housing to make it MIL-STD-810G standard and shockproof
Quad core Android 8.1 o.s with Google license
8.0 inch IP67 1280*800 above 400 nits brightness display
RAM 2GB/ROM 32GB
Dual band WIFI,BT 4.0,2G/3G/LTE wireless transmit
Support GPS/GLONASS
Front 2.0M/rear 13.0M camera
8500mah big battery
Option 1D/2D Barcode scanner for warehouse managment
Support OTG and USB transfer into RS232 or RJ45

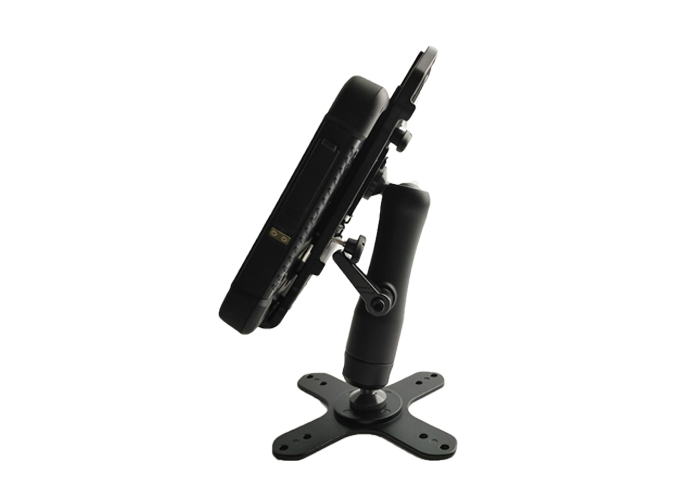

Option Docking station,vehicle mount,stylus etc
Scenario install customers app for special projects,fleet
management
| Product Outlook |
| Type | Details | Standard Configuration |
| Product Form | Type | Rugged Tablet |
| Dimension | 225*143*19mm |
| Weight | Device unit: 0.558kg ,Unit with giftbox and standard
accessories:1330g,docking:290g |
| Device Color | black fully |
| LCD | Screen Size | 8“ 16:10 800*1280 IPS 400 nits |
| TP | Touch Panel | Multipoints Capacitive,G+G,Rigidity: above 7H-Anti-scratch,TP
thickness:1.1mm,COF,support handwriting |
| Camera | Front/rear | Front: 2.0MP with indicator light,Rear: 13.0MP |
| Speaker | Built-in | Embedded 8Ω/0.8W waterproof speakerx 1 |
| Mic | Built-in | Sensitivity:-42db, output resistance2.2kΩ |
| Battery | Type | Build in Polymer li-ion battery,3.7V/8500mAh |
| System Hardware Configuration |
| Type | Details | Description |
| CPU | Type | MTK 8735A,1.45GHZ |
| GPU | Type | ARM ® Cortex-A53 |
| RAM | DDR3L | 2GB |
| ROM | Emmc | 32GB |
| Sensors | Built-in | Light sensor,electronic compass,gyroscope,Gravity acceleration
sensor |
| Network Connections |
| Type | Details | Descriptions |
| WIFI | WIFI module | WIFI 802.11(a/b/g/n) frequency 2.4G+5.8G dual band WIFI, |
| Bluetooth | Built-in | BT4.0 (BLE) class1.5 transmission distance:10m |
| 2G/3G/4G | Built-in | FDD(B1,B2,B3,B4,B5,B7,B8,B 17,B 20) |
| NFC | option | ST NFC 13.56MHz support SO/IEC 14443A/14443B/15693/18092/mifare
protocol, Card reading distance: 4cm |
| GPS | Built-in | MTK6625 4 in one,GPS+GLONASS |
| 1D/2D Barcode Scanner | Optional | MOTO 2707 Optical Resolution:1280*800；5mil Scan speed:50/s Symbol
system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, |
|
| Interface Configuration |
| Type | Details | Descriptions |
| TF slot | Extensive External Memory | support SDHC/SDXC x1 max: 128G |
| SIM slot | SIM card | SIM card x1 |
| USB interface | data transmission | Android OTG x1 |
| Earphone Jack | Audio Output | ∮3.5mm standard earphone jack x1 |
| DC Jack | Power | DC 5V 3A ∮3.5mm Power connector x1 |
| HDMI interface | Video Output | HDMI 1.4a Type C x1 |
| Extensive Slot | pogo Pin | 12pin Pogo Pin x1 |
| Power on | press key | power key x1 |
| Volume + - | press key | power key x1,Volume + - x2 |
| Accessories |
| Type | Details | Description |
| Standard | Standard | OTG cable/usb cable/Adaptor/handstrap |
| Optional | Optional | cradle/vehicle mount/stylus/car charger |
| Software Configuration |
| Type | Details | Description |
| Operation System | OS version | Android 8.1 |
| Reliability |
| Type | Details | Descriptions |
| Product Reliability | Drop Height | 1.2m composite wood floors, in operation status |
| Operate Temperature | ‘-10 °C to 50 °C (-20 °C to 60 °C optional) |
| Store Temperature | ’-30 °C to 70 °C |
| Humidity | Humidity: 95% Non-Condensing |
