Rugged Tablet Rugged Android Tablet Robust Tablet 8.0 Inch IP67
BT86
Rugged tablet IP67 and 8.0 inch,Corning Gorilla glass touch panel
and double injection mould housing Quad core MTK CPU and Android
8.1 OS with Google license,2.0M front camera and 13.0M rear
one,2.4G/5.8G Dual band WIFI,BT 4.0 and 2G/3G/LTE etc wireless
technology,built in 8500mah big battery to make it continuously
working 10-14 hours, And there are HDMI,D.C,Micro USB,Type A etc
ports,among them.the USB port it can support OTG and transfer into
RS232 and Ethernet,handstrap to protect sliding from hand,Docking
station for better charging and with Type A USB,Ethernet

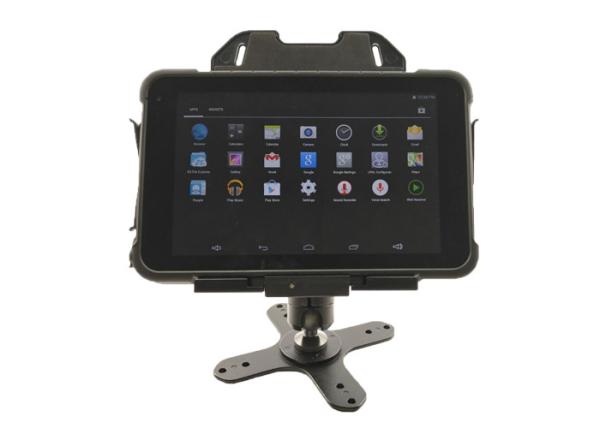

port.vehicle mount with RS232 port,the scenario warehouse
management and some install their own Application to control
special projects
| Product Outlook |
| Type | Details | Standard Configuration |
| Product Form | Type | Rugged Tablet |
| Dimension | 225*143*19mm |
| Weight | Device unit: 0.558kg ,Unit with giftbox and standard
accessories:1330g,docking:290g |
| Device Color | black( bottom shell in black, front shell in black) |
| LCD | Screen Size | 8“ 16:10 800*1280 IPS 400 nits |
| TP | Touch Panel | Multipoints Capacitive,G+G,Rigidity: above 7H-Anti-scratch,TP
thickness:1.1mm,COF,support handwriting |
| Camera | Front/rear | Front: 2.0MP with indicator light,Rear: 13.0MP |
| Speaker | Built-in | Embedded 8Ω/0.8W waterproof speakerx 1 |
| Mic | Built-in | Sensitivity:-42db, output resistance2.2kΩ |
| Battery | Type | Build in Polymer li-ion battery,3.7V/8500mAh 15Hrs(default 50%
volumn,default200 lumens brightness,play 1080P HD video) |
| System Hardware Configuration |
| Type | Details | Description |
| CPU | Type | MTK 8735A,1.45GHZ |
| GPU | Type | ARM ® Cortex-A53 |
| RAM | DDR3L | 2GB |
| ROM | Emmc | 32GB |
| Sensors | Built-in | Light sensor,electronic compass,gyroscope,Gravity acceleration
sensor |
| Network Connections |
| Type | Details | Descriptions |
| WIFI | WIFI module | WIFI 802.11(a/b/g/n) frequency 2.4G+5.8G dual band WIFI, |
| Bluetooth | Built-in | BT4.0 (BLE) class1.5 transmission distance:10m |
| 2G/3G/4G | Built-in | GSM/WCDMA Quad band,TD-SCDMA(B34,B39) & TDD(B38,B39,B40,B41)&
FDD(B1,B2,B3,B4,B5,B7,B8,B 17,B 20) |
| NFC | option | ST NFC 13.56MHz support SO/IEC 14443A/14443B/15693/18092/mifare
protocol, Card reading distance: 4cm |
| GPS | Built-in | MTK6625 4 in one,GPS+GLONASS |
| 1D/2D Barcode Scanner | Optional | MOTO 2707 Optical Resolution:1280*800；5mil Scan speed:50/s Symbol
system:PDF417, MicroPDF417, Data Matrix, Data Matrix
Inverse,Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec
Inverses,Han Xin,Han Xin Inverse |
|
| Interface Configuration |
| Type | Details | Descriptions |
| TF slot | Extensive External Memory | support SDHC/SDXC x1 max: 128G |
| SIM slot | SIM card | SIM card x1 |
| USB interface | data transmission | Android OTG x1 |
| Earphone Jack | Audio Output | ∮3.5mm standard earphone jack x1 |
| DC Jack | Power | DC 5V 3A ∮3.5mm Power connector x1 |
| HDMI interface | Video Output | HDMI 1.4a Type C x1 |
| Extensive Slot | pogo Pin | 12pin Pogo Pin x1 |
| Power on | press key | power key x1 |
| Volume + - | press key | power key x1,Volume + - x2 |
| Accessories |
| Type | Details | Description |
| Standard | Standard | OTG cable/usb cable/Adaptor/handstrap |
| Optional | Optional | cradle/vehicle mount/stylus/car charger |
| Software Configuration |
| Type | Details | Description |
| Operation System | OS version | Android 8.1 |
| Reliability |
| Type | Details | Descriptions |
| Product Reliability | Drop Height | 1.2m composite wood floors, in operation status |
| Operate Temperature | ‘-10 °C to 50 °C (-20 °C to 60 °C optional) |
| Store Temperature | ’-30 °C to 70 °C |
| Humidity | Humidity: 95% Non-Condensing |
Bright Alliance Services
We focus on rugged tablet and handheld pda over 8 years.
We can support completely Free SDK and technical support for you.
ODM/OEM customization services according to your requirements.
12 months warranty for your devices and other parts. and 6 months
for the batteries. Free maintenance of the devices and part of
accessories replacement in the warranty .if out of the warranty,
you'll have to pay the basic cost for them.
And experienced sales have better communication to get what you
need and save your time
FAQ
Question 1: What's your MOQ?
The MOQ of rugged tablet is 1 piece.
Question 2: How long is the delivery time?
The delivery time of rugged android tablet goods is different from
quantities:
for samples, It's about 3-5 working days;
If 100~500 pcs, it's about 10--20 working days;
If More than 500 pcs, It's about 20-30 working days.
Question 3: Would you like to supply 1 sample for testing?
Yes, Of course. We can provide 1 sample android rugged tablet for
your testing.
Question 4: What's the total price for 1 sample?
As a manufacturer of rugged devices,the more you buy, the cheaper
it'll be.
The sample price is a little bit higher than the common wholesale
price excluding the freight fee.
Question 5: Are you a manufacturer of rugged devices?
Yes, we have our own R&D team including software and hardware
engineers and assembly factory,mainly producing industrial PDA and
rugged tablet ,.
Question 6: What kind of services do you support ?
1.We provide you Free SDK and Technical Support
2.We also provide ODM/OEM Customization Services based to your
demands.
3.We support 12 months Warranty for all the device and 6 months for
the batteries. Exend warranty, it costs 10% at the first year, and
20% for the second year.
Question 7: What's for payment term and delivery term ?
1.It's generally 40%-100% TT in advance for all orders. Meanwhile,
Paypal or West Union is acceptable.
2. Exw Shenzhen or FCA HK as Trade Term.
Question 8: Who are your customers?
1. Our products have been sold to worldwide,especially market in
South/North America, Europe, Asia, Africa Mid-east, etc.
2.The market share is increasing quickly every year and we get more
and more positive feedbacks from our customers.
