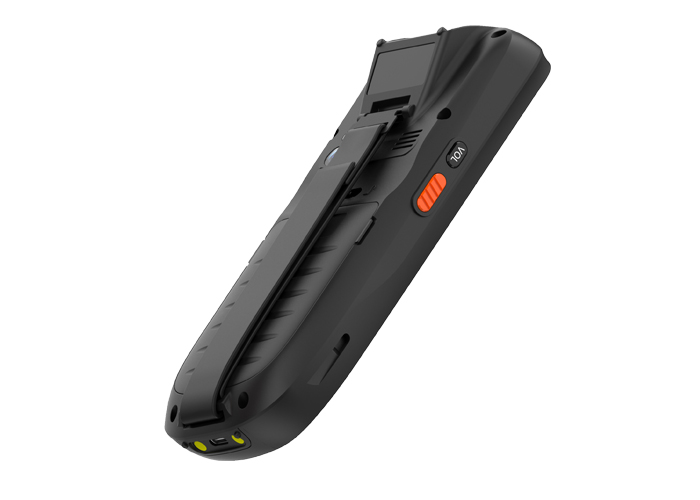

Android Pda Scanner Handheld Computer With Barcode Scanner Pda In
Mobile Computing BH85
Corning Gorilla tempered glass and Double injection mould housing
for better protection
4 inch IP65 800*480 android handheld pda
Dual band WIFI,Bluetooth 4.0,2G/3G/LTE for data and calling
GPS navigation
MTK Quad core Android 7.0 o.s
2GB RAM /16GB ROM
Front 5.0M and rear 8.0M camera
4100mah big battery for whole day working
Option docking station
Standard accessories USB cable,charger,usb cable etc
| Product Outlook |
| Type | Details | Standard Configuration |
| Product Form | Type | Rugged handheld computer |
| Dimension | 164*71*23 |
| Weight | Device unit: 400g ,Unit with giftbox and standard
accessories:550g,Docking:200g |
| Device Color | fully black |
| LCD | Screen Size | 4.0 inch |
| Resolution | 480*800 |
| Brightness | 300Nit |
| TP | Touch Panel | 5points Capacitive,Corning gorrila glass |
| Camera | Front | Front5.0MP |
| Rear | Rear 8.0MP,with flash and auto-focus |
| Speaker | Built-in | Embedded 8Ω/0.7W speaker x 1 |
| Mic | Built-in | Sensitivity:-42db, output resistance2.2kΩ |
| Battery | type | Li_polyment,battery loadable |
| Capacity | 3.8V/4100mAh |
| Endurance | 12hrs(default50%volumn,default 200lumens brightness,play1080P
video) |
| System Hardware Configuration |
| Type | Details | Descriptions |
| CPU | Type | 4core |
| Speed | 1.3GHz |
| GPU | Type | ARM MaliT720-MP3 450MHz |
| RAM | DDR3L | 2GB/ LPDDR3 |
| ROM | Emmc | 16GB |
| Network Connections |
| Type | Details | Descriptions |
| WIFI | WIFI | WIFI 802.11(a/b/g/n) Frequency 2.4G+5.8G dual band WIFI, |
| Bluetooth | Built-in | BT4.0(BLE) class1transmission |
| 3G/4G | Built-in | CMCC 5M:
LTE 1/2/3/4/7/17/20/38/39/40/41
WCDMA 1/2/5/8
TD-SCDMA 34/39
GSM 2/3/5/8 |
| GPS | Built-in | support:GPS;Capture sensitivity::-160 dBm；Cool Start Time:<60
seconds,Hot start time:<28seconds,frequency::0.25 Hz … 10 MHz |
| NFC | Option | ISO/IEC 14443A, ISO/IEC 14443B PCD 106 kbit/s to 848 kbit/s
ISO/IEC 14443A, ISO/IEC 14443B PICC 106 kbit/s to 424 kbit/s
MIFARE reader encryption mechanism (MIFARE 1K/4K)
Reading NFC Forum tags
Reading DESFire card
ISO/IEC 15693/ICODE reader
NFC-IP1 and NFC-IP2 protocols (ISO/IEC 18092 /ECMA 340 and
ISO/IEC 21481/ECMA 352) 106 kbit/s to 424 kbit/s
|
| 1D barcode scanner | Option | Honeywell N4313 |
| 2D barcode scanner | Option | SE4710 or 2100 |
| Interface Configuration |
| Type | Details | Descriptions |
| TF slot | Extensive External Memory | support SDHC/SDXC x1 max:64G |
| SIM slot | SIM card | SIMx1 |
| PSAM slot | PSAM card | PSAM*1 |
| Type c interface | data transmission | Type C usb 2.0*1 OTG |
| HOME key | home | HOME*1 |
| Menu Key | Menu | MENU*1, |
| Back Key | Back | BACK*1, |
| number key | number | numbers*10 |
| barcode | barcode | barcode *3 |
| D.C PIN | docking charger | charging function x1 |
| Power on | press key | power key x1 |
| Volume + - | press key | Volume + - x1 |
| Standard Accessories |
| Type | Details | Description |
| USB cable | USB cable | Type c USB cable |
| Power Adaptor | Standard | AC100V ~ 240V,50Hz/60Hz output DC 5V/2A USA Standard CE approval |
| Docking station | Optional | charing |
| bag | optional | holder |
| Software Configuration |
| Type | Details | Description |
| Operation System | OS version | Andriod 7.0 |
| Reliability |
| Type | Details | Descriptions |
| Product Reliability | Drop Height | 1.2m composite wood floors, in operation status |
| Operate Temperature | ‘-10 °C to 50 °C |
| Store Temperature | ’-30 °C to 70 °C |
| Humidity | Humidity: 95% Non-Condensing |
FAQ
Q: What kind of services do you support ?
1.We provide you Free SDK and Technical Support
2.We also provide ODM/OEM Customization Services based to your
demands.
3.We support 12 months Warranty for all the device and 6 months for
the batteries. Extension warranty, it costs 10% at the first year,
and 20% for the second year.
Q: How can I pay for the order?
A: Our payment terms: T/T, Western Union, Paypal, Credit card
1) For sample order: 100% T/T or Western Union in advance, Paypal
is also acceptable.
2) For bulk order: 40%deposit T/T in advance, balance clear before
pick up or shipment.
Q: How long is the delivery time?
The delivery time of rugged android tablet goods is different from
quantities:
for samples, It's about 3-5 working days;
If 100~500 pcs, it's about 10--20 working days;
If More than 500 pcs, It's about 20-30 working days
Bright Alliance Services
We focus on rugged tablet and handheld pda over 8 years.
We can support completely Free SDK and technical support for you.
ODM/OEM customization services according to your requirements.
12 months warranty for your devices and other parts. and 6 months
for the batteries. Free maintenance of the devices and part of
accessories replacement in the warranty .if out of the warranty,
you'll have to pay the basic cost for them.
And experienced sales have better communication to get what you
need and save your time
