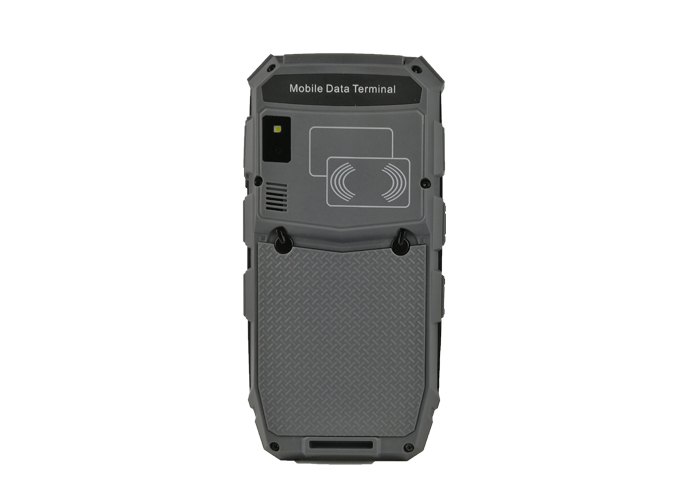

RFID Reader Handheld RFID Reader Pos Handheld Terminal 5.0 Inch
BH95
2GB RAM /16GB ROM memory or 3GB/32GB
Dual band WIFI,BT 4.0,2G/3G/LTE data
5 inch IP65 Handheld rfid reader with option 1D/2D Barcode
scanner,Biometric fingerprint etc
Android 7.0 o.s all in one
Corning touch panel and Double injection housing for better
protection
Support GPS navigation
Back 8.0 M
Removable 4500mah big battery or 8000mah
Standard accessories hand strap,USB cable etc
Option pistol grip,bags,docking station etc
Scenario: secondary development according to our SDK to fulfill
some special projects or we can add some customization modules
| Physical Parameters | Weight | 370g(including battery and wrist strap |
| Size | 170mm(H)x85mm(W)x23mm(D)±2 mm |
| Basic | CPU | Quad A53 1.3GHz quad-core |
| Memory | 2GB+16GB |
| OS | Android 7.0 |
| Display | Gorilla Glass 3, 5.0 inch, TFT-LCD, 1280x720 |
| Touch Screen | 5 point capacitive touch screen backlight |
| WWAN | TDD-LTE B38/B39/B40/B41 FDD-LTE B1/B2/B3/B4/B7/B17/B20
WCDMA 850/1900/2100MHz GSM 850/900/1800/1900MHz |
| Camera | 8.0MP Camera, Auto-focus with LED flash |
| WIFI | 2.4GHz/5.8GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac |
| Bluetooth | Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0 |
| GPS | GPS, accuracy of 5 m |
| Battery | Rechargeable li-ion polymer, 3.7V, 4500mAh |
| Optional Modules |
RFID
(Optional) | Ultra High frequency | 1-1.5 m distance for EPC C1 GEN2/ISO 18000-6C protocol of
865~868MHz or 920~925MHz tag reading, Circular antenna(2dBi) |
| High frequency | 2-8 cm range for ISO15693, ISO14443A double deal 13.56 MHz tags for
reading and writing |
| PSAM | Support two PSAM card |
| Low frequency | 125KHz/134.2KHz, ISO 11784&11785, reading range up to 2-10cm |
Active in Close Communication
(Optional) | Active 2.45G | Reading range more than 200 m |
| 433MHz | Reading range more than 200m |
1D Barcode
(Optional) | Module | 1D Laser Engine Symbol SE955 |
| Support | All major 1D barcodes, Code 39, Code 93, Code 128, Code bar,
EAN-13, EAN-8, UPC-A, UPC-E, ITF 14, UCC/EAN-128, ITF 25, Matrix
25, EAN-128, ect. |
2D Barcode
(Optional) | Module | Newland 3396 or Honeywell 6603 |
| Support | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code,
Micro QR code, Aztec, MaxiCode, Postal Codes, US Planet, UK Postal,
Australian Postal, Japan Postal, Dutch Postal. etc. |
Fingerprint
(Optional) | Sensor types | TCS1CT, Capacitive, area sensor 508 DPI or FBI certification
fingerprint |
| Performance | FRR<0.008%, FAR<0.005% |
| Capacity | 1000 |
| PSAM SECURITY(OPTIONAL) | Protocol | ISO 7816 |
| Baudrate | 9600, 19200, 38400,43000, 56000, 57600, 115200 |
| Slot | 2 slots |
| Development Environment |
| SDK | HHW Software Development Kit |
| Language | Java |
| Environment | Android Studio or Eclipse |
| Accessories |
| Accessories | Standard | 1xPower Supply; 1xLithium Polymer Battery; 1xDC charging cable;
1xUSB data cable |
| Optional | Carrying case; Cradle |
| Other features |
| Environment | Operating temperature | (-20℃) - (50℃) |
| Storage temperature | (-20℃) - (70℃) |
| Relative humidity | 5%RH to 95%RH |
| ESD | ±15kv air discharge, ±8kv direct discharge |
FAQ:
Question 3: do you have any certification for the model?
Yes,now we passed CE/IP65/SOTI etc certification.
Question 1: Would you like to supply 1 sample for testing?
Yes, Of course. We can provide 1 sample android rugged tablet for
your testing.
Question 2: What's the total price for 1 sample?
As a manufacturer of rugged devices,the more you buy, the cheaper
it'll be.
The sample price is a little bit higher than the common wholesale
price excluding the freight fee.
Question 3: What's for payment term and delivery term ?
1.It's generally 40%-100% TT in advance for all orders. Meanwhile,
Paypal or West Union is acceptable.
2. Exw Shenzhen or FCA HK as Trade Term.
Bright Alliance based on the continuous development of industrial
terminal technology, and independently develops the industrial
rugged devices, including rugged handheld PDA and rugged tablet.And
a variety of accessories can be selected to meet customers' demand
for industry, aviation, aerospace, vehicle-mounted, police,
education, exploration, fishing animal husbandry, finance and other
industries
