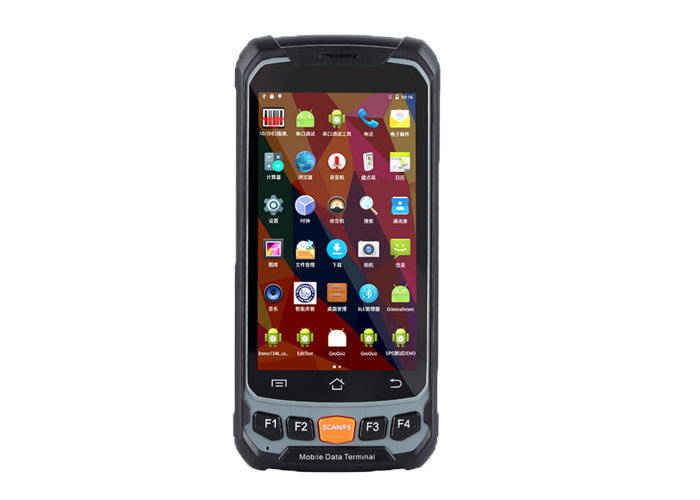

| Model No. | BH86 |
| Type | Handheld UHF RFID reader |
| Shockproof | 1 meter high drop |
| Basic | CPU | MTK6735 Quad A53 1.3GHz quad-core |
| Memory | 2GB RAM + 16GB ROM Micro SD(max 32GB expansion) |
| OS | Android 7.0 |
| Display | Gorilla Glass 3 9H 4.7inch,OGS sunlight readable,(720x1280)touch
screen |
| Keypads | 3 TP keys, 5 function keys, 4 side buttons |
| GSM | 850/900/1800/1900MHz |
| WCDMA | 850/1900/2100MHz |
| LTE | TDD-LTE Band 38, 39, 40, 41 FDD-LTE Band 1, 2, 3, 4, 7, 17, 20; |
| Camera | 8.0 megapixel Auto-focus with LED flash. |
| WIFI | 2.4GHz/5.8GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac |
| Bluetooth | Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0 |
| GPS | GPS(embedded A-GPS), accuracy of 5 m |
| Battery | 4300mAh |
RFID
(Optional) | Ultra High Frequency | Built-in 1.5m for EPC C1 GEN2 / ISO18000-6 - c protocol of
860-960MHZ tag read operation |
| High frequency | 0 - 7 cm range for ISO15693, ISO14443A double deal 13.56 MHz tags
for reading and writing |
| Low frequency | 125KHz/134.2KHz(FDX-B/HDX); |
NFC (NXP547)
(Optional) | Frequency | 13.56MHz |
| Baud Rate | 9600-115200 bits/s |
| Support Protocol | ISO/IEC 14443A/B/15693 |
| Support Card | Mifare One S50/Ultralight/One S70/Pro, Ntag203, AT88RF020,
66CL160S, SR176, SRIX4K, I-code 1/2, TI RFID Tag-it HF-I |
1D Barcode
(Optional) | Module | Honeywell 4313 |
| Support | Code 39, Code 93, Code 128, Code bar, EAN-13, EAN-8, UPC-A, UPC-E,
ITF 14, UCC/EAN-128, ITF 25, Matrix 25,etc |
| Read distance | 0 cm - 50 cm |
| Read Speed | 104 ± 12 scans/S |
| First read rate | > 99% |
| Error rate | < 0.01% |
| false reject rate | < 0.01% |
QR code scanner
(Optional) | Newland 3396 or Honeywell 6603 | Software decoding - error rate < 0.01% |
| 2D Code | PDF417, MicroPDF417, MaxiCode, Data Matrix, QR Code, Aztec, Aztec
Mesa, Code 49, UCC Composite |
| 1D Code | Code 39, Code 128, Codabar, UPC, EAN, Reduced Space Symbology, Code
93, Codablock |
| Postal Code | Postnet (US), Planet Code, BPO 4 State, Canadian Post, Japanese
Post, KIX Post |
Active in Close Communication
(Optional) | Active 2.45G | Distance is 200m, can be read all at once |
| 433 | Can Read more than 200m distance |
| Environment | Operating temperature | (-20℃) - (50℃) |
| Storage temperature | (-20℃) - (70℃) |
| Relative humidity | 10% - 90%RH |
| Physical Parameters | Weight | 380g(including battery) |
| Size | 162mm(H)x78mm(W)x22mm(D)±2 mm |
