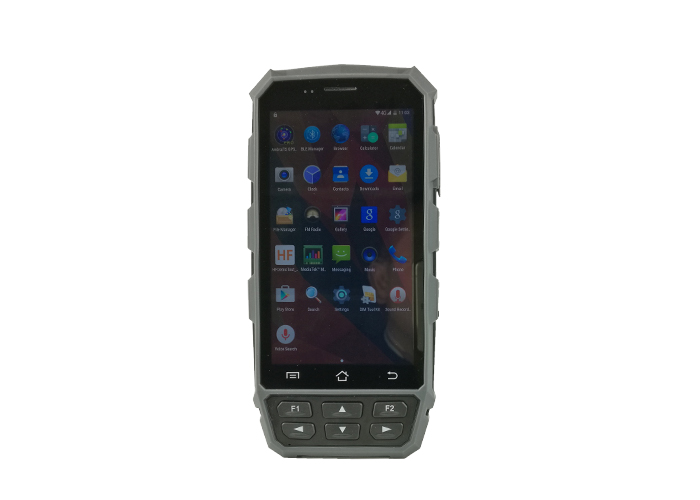

UHF RFID Handheld Reader Rugged With Fingerprint / 1D 2D Barcode Scanner And NFC Reader

SHENZHEN BRIGHT ALLIANCE TECHNOLOGY LIMITED
Contact Now
    Buy cheap UHF RFID Handheld Reader Rugged With Fingerprint / 1D 2D Barcode Scanner And NFC Reader from wholesalers

    Buy cheap UHF RFID Handheld Reader Rugged With Fingerprint / 1D 2D Barcode Scanner And NFC Reader from wholesalers
    • Buy cheap UHF RFID Handheld Reader Rugged With Fingerprint / 1D 2D Barcode Scanner And NFC Reader from wholesalers
    • Buy cheap UHF RFID Handheld Reader Rugged With Fingerprint / 1D 2D Barcode Scanner And NFC Reader from wholesalers

    UHF RFID Handheld Reader Rugged With Fingerprint / 1D 2D Barcode Scanner And NFC Reader

    Ask Lasest Price
    Brand Name : BATL
    Model Number : BH95
    Certification : CE/ROHS/IP65
    Price : negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 2000 pieces/month
    Delivery Time : 5-25 working days
    • Product Details
    • Company Profile

    UHF RFID Handheld Reader Rugged With Fingerprint / 1D 2D Barcode Scanner And NFC Reader

    UHF RFID Reader Handheld RFID Reader Rugged Handheld 5.0 Inch BH95


    IP65 5 inch UHF RFID handheld reader with option modules UHF RFID reader,long range uhf rfid reader,fingerprint,1D/2D barcode scanner and NFC reader,Android 7.0 OS the model with MTK Quad core CPU,Dual band 2.4/5.8G WIFI,BT 4.0 and 3G/LTE etc wireless data transfer,Corning Gorilla tempered glass touch panel and double injection mould housing to make it MIL-STD-810G standard and shockproof and Meanwhile the model 8.0M rear camera,Built in 4500mah big battery to make it continuously working 10-14 hours,scenario warehouse management and goods tracking,security checking,we also have hand strap to protecting slide from hand


    Physical ParametersWeight370g(including battery and wrist strap
    Size170mm*85mm*23mm ±2 mm
    BasicCPUQuad A53 1.3GHz quad-core
    Memory2GB+16GB
    OSAndroid 7.0
    DisplayGorilla Glass 3, 5.0 inch, TFT-LCD, 1280x720
    Touch Screen5 point capacitive touch screen backlight
    WWANTDD-LTE B38/B39/B40/B41 FDD-LTE B1/B2/B3/B4/B7/B17/B20
    WCDMA 850/1900/2100MHz GSM 850/900/1800/1900MHz
    Camera8.0MP Camera, Auto-focus with LED flash
    WIFI2.4GHz/5.8GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac
    BluetoothBluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0
    GPSGPS, accuracy of 5 m
    BatteryRechargeable li-ion polymer, 3.7V, 4500mAh
    Optional Modules
    RFID
    (Optional)
    Ultra High frequency1-1.5 m distance for EPC C1 GEN2/ISO 18000-6C protocol of 865~868MHz or 920~925MHz tag reading, Circular antenna(2dBi)
    High frequency2-8 cm range for ISO15693, ISO14443A double deal 13.56 MHz tags for reading and writing
    PSAMSupport two PSAM card
    Low frequency125KHz/134.2KHz, ISO 11784&11785, reading range up to 2-10cm
    Active in Close Communication
    (Optional)
    Active 2.45GReading range more than 200 m
    433MHzReading range more than 200m
    1D Barcode
    (Optional)
    Module1D Laser Engine Symbol SE955
    SupportAll major 1D barcodes, Code 39, Code 93, Code 128, Code bar, UCC/EAN-128, ITF 25, Matrix 25, EAN-128, ISBN, ect.
    2D Barcode
    (Optional)
    ModuleNewland 3396 or Honeywell 6603
    SupportPDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc.
    Fingerprint
    (Optional)
    Sensor typesTCS1CT, Capacitive, area sensor 508 DPI or FBI certification fingerprint
    PerformanceFRR<0.008%, FAR<0.005%
    Capacity1000
    PSAM SECURITY(OPTIONAL)ProtocolISO 7816
    Baudrate9600, 19200, 38400,43000, 56000, 57600, 115200
    Slot2 slots(maximum)
    Development Environment
    SDKHHW Software Development Kit
    LanguageJava
    EnvironmentAndroid Studio or Eclipse
    Accessories
    AccessoriesStandard1xPower Supply; 1xLithium Polymer Battery; 1xDC charging cable; 1xUSB data cable
    OptionalCarrying case; Cradle
    Other features
    EnvironmentOperating temperature(-20℃) - (50℃)
    Storage temperature(-20℃) - (70℃)
    Relative humidity5%RH to 95%RH(non-condensing)
    ESD±15kv air discharge, ±8kv direct discharge

    Question 1: What's for payment term and delivery term ?

    1.It's generally 40%-100% TT in advance for all orders. Meanwhile, Paypal or West Union is acceptable.
    2. Exw Shenzhen or FCA HK as Trade Term.

    Question 2: how many modules can be in one devices?

    For BH95,normally we can add 3-4 modules,but better within 3 modules.for example

    2D+UHF,2D+Barcode scanner,UHF+Fingerprint etc


    Why choose us


    1.we have professional sales team and engineers to know what the customers they need


    2.Production quality guarantee-verified by mass production of over 100.000 consumer product


    3.Strategic support from suppliers and original factory,gain more support of technique and cost due to big shipment quantity


    4.Professional after sale teams to solve customers problem quickly


    5.Focus on rugged devices over 8 years,familiar with whole process of the rugged case design and production
