| Product Outlook |
| Type | Details | Standard Configuration |

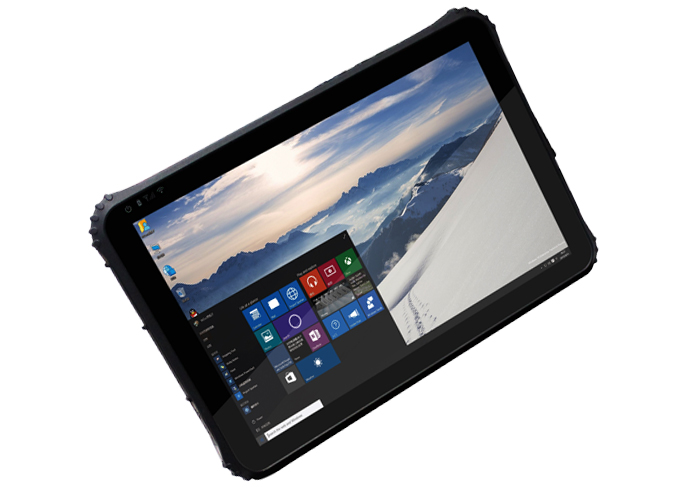

| Product Form | Type | 12.2 inch Rugged Tablet(optional keyboard) |
| Dimension | 319.6*216*23.4 mm |
| Weight | Main Unit: 1500g |
| Device Color | Black+silver(Back panel-silver,Front panel-black) |
| LCD | Screen Size | 12.2 inch 16:10 |
| Resolution | 1920*1200 IPS screen |
| Brightness | 280Nit,Optional SLR sunlight readable film |
| TP | Touch Panel | 10 point capacitive,G+G,Corning gorrila glass, Rigidity: 7H above,
anti-scratch,TP thickness:1.1mm,COF,support glove and wet hand
touch |
| Camera | Front | Front 2.0MP |
| Rear | rear 5.0MP |
| Speaker | Built-in | built-in 8Ω/0.8W water-proof speaker x2 |
| Mic | Built-in | sensivity:-42db, Output resistance:2.2kΩ |
| Battery | Type | Lithium-ion polymer / swappable |
| Capacity | 3.7V/13000mAh |
| Endurance | 8Hrs |
| System Hardware Configuration |
| Type | Details | Descriptions |
| CPU | Type | Intel Cherrytrail Z8350 |
| Speed | 1.44Ghz-1.84GHz |
| GPU | Type | Intel® HD Graphics |
| RAM | DDR3L | 4GB |
| ROM | Emmc | 64GB |
| compass | Built-in | compass |
| gyroscope | Built-in | gyroscope |
| G_sensor | Built-in | gravity sensor |
| Internet Connections |
| Type | Details | Description |
| WIFI | WIFI Module | WIFI 802.11(a/b/g/n) Frequency:2.4G+5.8G dual band WIFI |
| Bluetooth | Built-in | BT4.0 (BLE) class1.5 transmission distance:10m |
| 3G | Built-in | FIBOCOM_H380 M.2 :WCDMA 900 MHz/2100 MHz GSM/GPRS/EDGE: 900MHz/1800
MHz |
| 4G | optional | ME906S-158
• LTE (FDD) B1/B2/B3/B5/B7/B8/B20/B28,all bands with diversity
• DC-HSPA+/HSPA+/HSPA/WCDMA B1/B2/B5/B8, all bands with diversity
• EDGE/GPRS/GSM 1900/1800/900/850 MHz
• GPS/GLONASS: L1
• GPRS: DL 85.6 kbps/UL 85.6 kbps
• EDGE: DL 236.8 kbps/UL 236.8 kbps
• WCDMA CS: DL 64 kbps/UL 64 kbps
• WCDMA PS: DL 384 kbps/UL 384 kbps
• HSPA+: DL 21.6 Mbps/UL 5.76 Mbps
• DC-HSPA+: DL 42Mbps/UL 5.76 Mbps
• LTE FDD: DL 150 Mbps/UL 50 Mbps @20M BW cat4 |
| GPS | Built-in | U-blox NEO-7,Support:GLONASS,QZSS,GPS;Sensitivity:-160 dBm；Cold
start:<30S,Hot start:<28S,Frequency:0.25 Hz … 10 MHz |
| NFC | optional | NXP NFC 13.56MHz Support ISO/IEC : 14443A/14443B/15693/18092/mifare
protocol,read card distance:4cm |
| Data Collection |
| Type | Details | Description |
| 1D barcode scanner | Optional | Honeywell 4313 E100R Optical Position: 5mil Scan speed: 50/s Symbol
system:UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code
128,GS1-128,ISBT 128,Code 93 ,Code 11 |
| 2D barcode scanner | Optional | Honeywell N3680 Hardware decoder Optical Resolution:1280*800；5mil
Scan speed:50/s Symbol system:PDF417, MicroPDF417, Data Matrix
Inverse
Maxicode,QR Code, MicroQR, etc |
| Connectors |
| Type | Details | Description |
| TF slot | Extensive External Memory | support SDHC/SDXC x1 max:128G |
| SIM card slot | 3G/4G communication | SIM card x1 |
| USB connector | Extensive external memory and data transfer | USB 2.0*2 (4pin) (Host)for windows |
| USB 3.0*1 (9pin) |
| MICRO USB connector | USB2.0 | MICR USB x1 |
| Earphone Jack | Audio Output | ∮3.5mm standard earphone jack x1 |
| DC Jack | Power | DC 5V 3A ∮3.5mm power adaptor x1 |
| HDMI | Video Output | HDMI 1.4a x1 |
| Serial port connector | Serial Port | DB9 (RS232) ×1 DB9 (RS485) ×1 |
| RJ45 connector | Ethernet port | 10/100/1000Mbps ×1 |
| Extensive connector | pogo Pin | 12pin Pogo Pin x1 |
| Button Key |
| Type | Details | Description |
| power | On/Off | x1 |
| volume | volume up/volume down | volume+- x2 |
| F KEY | Scanner | Code scanner(back of unit) x1 |
| program | Program Key | Self define key x2 |
| Standard Accessories |
| Type | Details | Description |
| USB Cable | USB Cable | USB to micro 5P L=1.2M 4core aluminum foil shield cable |
| Power Adaptor | Standard | AC100V ~ 240V,50Hz/60Hz output DC 12V/2A USA standard CE approved |
|
| Software Configuration |
| Type | Details | Description |
| Operation System | OS version | Windows 10 Home Default language:English; option Windows pro or IOT |
| Product Certificate |
| Type | Details | Description |
| Certificate System | IP65 | IP65 Report: Water resistance:IP-X5,Dust resistance:IP-6X
a.Inner Nozzle diameter:6.3mm； b. water speed:12.5±0.625L/min；
c. Water Pressure:adjust according to water volumn；
d.Central part of water volumn:diameter of 40mm, distance from
nozzle: 2.5M
e.Spray time in surface of panel:about 1min；f.test time:at least
3min；
g.distance between nozzle and panel surface:2.5～3m.
After test,there is no water leakage in sample. |
| CE | Y |
| MIL-STD-810G | Y |
| Battery | UN38.3,MSDS,IEC62133 |
| Reliability |
| Type | Details | Descriptions |
| Product Reliability | Drop Height | 1.2m composite wood floors, in operation status |
| Operate Temperature | ‘-10 °C to 50 °C (-20 °C to 60 °C optional ) |
| Store Temperature | ’-30 °C to 70 °C |
| Humidity | Humidity: 95% Non-Condensing |
