| Product Outlook |
| Type | Details | Standard Configuration |

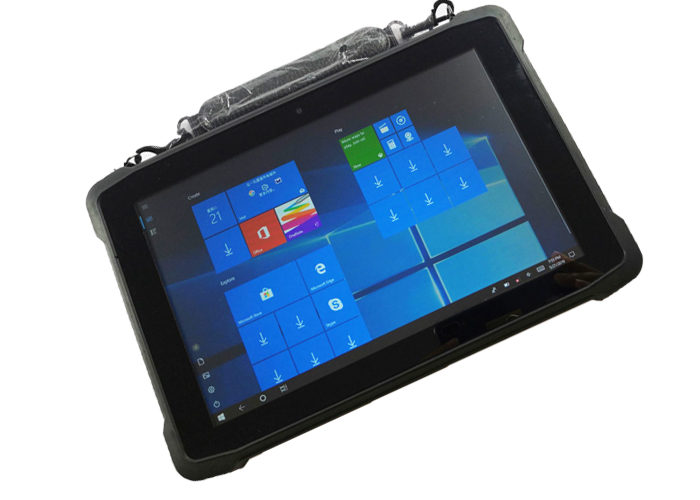

| Product Form | Type | Rugged Tablet |
| Dimension | 275.5*187.5*22mm |
| Weight | Device unit: 1014g
Unit with giftbox and standard accessories:1990g
Docking:290g,8000mAh battery:250g |
| Device Color | Black |
| LCD | Screen Size | 10.1 inch 16:10 |
| Resolution | 800 (RGB)*1280 |
| Brightness | 250 cd/m2 |
| TP | Touch Panel | 10 points Capacitive,G+G,Rigidity: above 7H-Anti-scratch,TP
thickness:1.1mm,COF |
| Camera | Front | Front:2.0MP with chargeing indicator light |
| Rear | Rear: 5.0MP |
| Speaker | Built-in | Embedded 8Ω/0.8W waterproof speaker x 1 |
| Mic | | Sensitivity:-42db, output resistance:2.2kΩ |
| Battery | Type | Lithium-ion polymer battery , pluggable, dimension: 21.8*92.3*9.5mm |
| Capacity | 3.7V/8000mAh |
| Endurance | 8hrs(default 50% volumn,default200nit,play 1080P HD video) |
| System Hardware Configuration |
| Type | Details | Description |
| CPU | Type | Intel cherry Trail Z8350 |
| Speed | 1.33Ghz-1.92GHz |
| GPU | Type | Intel HD Graphic(Gen7) |
| RAM | DDR3L | 2GB |
| ROM | Emmc | 32GB |
| G_sensor | Built-in | Gravity acceleration sensor |
| Network Connections |
| Type | Details | Descriptions |
| WIFI | WIFI Module | WIFI 802.11(a/b/g/n) Frequency 2.4G+5.8G dual band WIFI, |
| Bluetooth | Built-in | BT4.2 (BLE) class 1 Transmission distance :10m |
| 3G | Option | IC:H350-A30 WCDMA(900/2100MHz)HSDPA 7.2Mbps,HSUPA 5.76Mbps Huawei
MU609 WCDMA Band 1/2/5/8
GSM/GPRS/EDGE: 850 MHz/900
MHz/1800 MHz/1900 MHz |
| GPS | option | Support :GLONASS,QZSS,GPS; Capture sensitivity: -160 dBm；Cool Start
Time:<30second,Hot start time:<28seconds,frequency:0.25 Hz …
10 MHz (configurable) |
| NFC | option | NXP NFC 13.56MHz Support ISO/IEC 14443A/14443B/15693/18092/mifare
protocol,Card reading distance:4cm |
| Data Collection |
| Type | Details | Description |
| 2D Barcode Scanner | Option | Honeywell N3680 Hardware decoder Optical Resolution:1280*800；5mil
Scan speed:50/s Symbol system:PDF417, MicroPDF417, Data Matrix,
Data Matrix Inverse
Maxicode,QR Code, MicroQR, QR Inverse |
| Interface Configuration |
| Type | Details | Descriptions |
| TF slot | Extensive External Memory | Support SDHC/SDXC x1 max:128G |
| USB Interface | Extend external memory and data transfer | USB 2.0*1 (Host)for windows Android OTG x1 |
| Earphone Jack | Audio Output | ∮3.5mm standard earphone jack x1 |
| DC Jack | Power | DC 5V 3A ∮3.5mm Power connector x1 |
| HDMI | Video Output | HDMI 1.4a Type C x1 |
| Extensive Slot | pogo Pin | 12pin Pogo Pin x1 Option |
| Standard Accessories |
| Type | Details | Description |
| OTG Cable | OTG Cable | USB OTG to MICRO USB cable length:45mm |
| USB Cable | USB Cable | USB to micro 5P L=1.2M 4core aluminum foil shield cable |
| Power Adaptor | Standard | AC100V ~ 240V,50Hz/60Hz output DC 5V/3A USA Standard CE approval |
| Software Configuration |
| Type | Details | Description |
| Operation System | OS version | windows 10 Home or Pro or IOT Default language:English |
| Product Certificate |
| Type | Details | Description |
| Certificate System | IP67 | IP67 Report: Water resistance:IP-X7,Dust resistance:IP-6X Report ID
no.:SET2015-07677
a.Inner Nozzle diameter:6.3mm； b. water speed:12.5±0.625L/min；
c. Water Pressure:adjust according to water volumn；
d.Central part of water volumn
e.Spray time in surface of panel:about 1min；f.test time:at least
3min；
g.distance between nozzle and panel surface:2.5～3m.
After test,there is no water leakage in sample. |
| CE-NB | Y |
| MIL-STD-810G | Y |
| Battery | UN3803,MSDS,IEC62133 |
| Reliability |
| Type | Details | Descriptions |
| Product Reliability | Drop Height | 100cm composite wood floors, in operation status |
| Operate Temperature | ‘-10 °C to 50 °C (-20 °C to 60 °C optional) |
| Store Temperature | ’-30 °C to 70 °C |
| Humidity | Humidity: 95% Non-Condensing |
| Accessories | Standard | 1 USB cable,1 charger,1 handstrap, |
| Optional | Docking station |
