| Product Outlook |
| Type | Details | Standard Configuration |

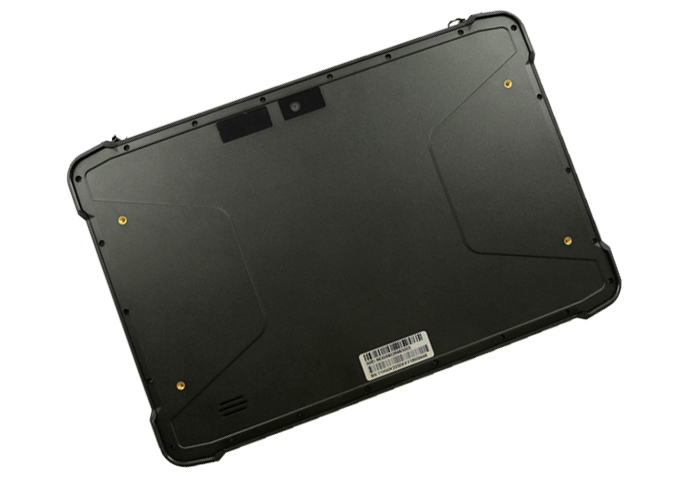

| Product Form | Type | Rugged Tablet |
| Dimension | 280*187*22mm |
| Weight | Device unit: 1014g |
| Device Color | Black(frant and rear Panel: black,Decorate board:black) |
| LCD | Screen Size | 10.1 inch 16:10 |
| Resolution | 800 (RGB)*1280 |
| Brightness | 250 cd/m2 |
| TP | Touch Panel | 10 points Capacitive |
| Camera | Front | Front:2.0MP with chargeing indicator light |
| Rear | Rear: 5.0MP |
| Speaker | Built-in | Embedded 8Ω/0.8W waterproof speaker x 1 |
| Mic | Built-in | Sensitivity:-42db, output resistance:2.2kΩ |
| Battery | Type | Lithium-ion polymer battery |
| Capacity | 3.7V/8000mAh |
| Endurance | 8hrs(default 50% volumn,default200nit,play 1080P HD video) |
| System Hardware Configuration |
| Type | Details | Description |
| CPU | Type | MTK 8735A |
| Speed | 1.45GHZ |
| GPU | Type | ARM ® Cortex-A53 |
| RAM | DDR3L | 2GB |
| ROM | Emmc | 32GB |
| Light sensor | Built-in | Light sensor |
| Electronic compass | Built-in | electronic compass |
| Gyroscope | Built-in | gyroscope |
| G_sensor | Built-in | Gravity acceleration sensor |
| Network Connections |
| Type | Details | Descriptions |
| WIFI | WIFI module | WIFI 802.11(a/b/g/n) frequency 2.4G+5.8G dual band WIFI, |
| Bluetooth | Built-in | BT4.0 (BLE) class1.5 transmission distance:10m |
| 2G/3G/4G | Built-in | GSM/WCDMA Quad band,TD-SCDMA(B34,B39) & TDD(B38,B39,B40,B41)&
FDD(B1,B2,B3,B4,B5,B7,B8,B 17,B 20) |
| NFC | option | NXP NFC 13.56MHz support SO/IEC 14443A/14443B/15693/18092/mifare
protocol, Card reading distance: 4cm |
| Barcode scanner | option | Moto 4710 Optical Resolution:1280*800；5mil Scan speed:50/s Symbol
system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse
Maxicode,QR Code |
| GPS | Built-in | MTK6625 4 in one,GPS+GLONASS |
| Interface Configuration |
| Type | Details | Descriptions |
| TF slot | Extensive External Memory | support SDHC/SDXC x1 max: 128G |
| SIM slot | SIM card | SIM card x1 |
| USB interface | data transmission | USB 2.0*1 (Host)for windows Android OTG x1 |
| Earphone Jack | Audio Output | ∮3.5mm standard earphone jack x1 |
| DC Jack | Power | DC 5V 3A ∮3.5mm Power connector x1 |
| HDMI interface | Video Output | HDMI 1.4a Type C x1 |
| Extensive Slot | pogo Pin | 12pin Pogo Pin x1 |
| Power on | press key | power key x1 |
| Volume + - | press key | power key x1,Volume + - x2 |
| Standard Accessories |
| Type | Details | Description |
| OTG cable | OTG cable | USB OTG to MICRO USB cable length:45mm |
| USB cable | USB cable | USB to micro 5P L=1.2M 4core aluminum foil shield cable |
| Power Adaptor | Standard | AC100V ~ 240V, 50Hz/60Hz output DC 5V/3A USA Standard CE approval |
|
| Optional Accessories |
| vehicle mount | vehicle mount | vehicle mount with charging/data transfer or USB transfer into RJ45 |
| docking station | docking station | docking station for charging and RJ45 |
| stylus | stylus | stylus |
| Software Configuration |
| Type | Details | Description |
| Operation System | OS version | Android 8.1 |
| Reliability |
| Type | Details | Descriptions |
| Product Reliability | Drop Height | 1.2m composite wood floors, in operation status |
| Operate Temperature | ‘-10 °C to 50 °C (-20 °C to 60 °C optional) |
| Store Temperature | ’-30 °C to 70 °C |
| Humidity | Humidity: 95% Non-Condensing |
