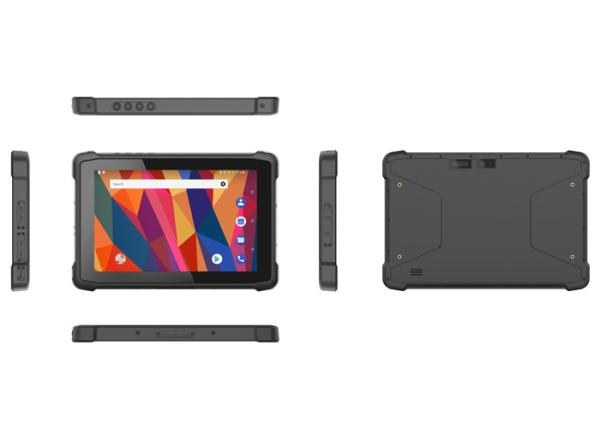

Industrial Rugged Tablet Pc Rugged Android Tablet Rugged 10.1 Inch
IP67 BT11
BT11 it is a 10.1 inch IP67 entry level Rugged tablet with option
modules Barcode scanner,Corning Gorilla tempered glass touch panel
and double injection mould housing to make it MIL-STD-810G standard
and shockproof and sealed completely to make it waterproof,and the
model with MTK Quad core CPU and Android 8.1 OS,2.4/5.8G WIFI,BT
4.0 and 2G/3G/4G etc wireless transfer,Meanwhile the model with
2.0M front camera and 5.0M rear one,the most important with built
in 8000mah big battery to make it continuously working 10-12 hours,
And there are HDMI,D.C,Micro USB,Type A etc ports,and USB port it
can support OTG and transfer into RJ45 port and RS232, And we also
have hand strap to better hold the device and briefcase strap for
hands free,and Docking station for better charging and vehicle
mount for better fixing and charging on the vehicle,Now our
customers they mainly use the devices in fleet management and
warehouse management and some install their own Application to
control special projects
| Product Outlook |
| Type | Details | Standard Configuration |
| Product Form | Type | Rugged Tablet |
| Dimension | 280*187*22mm |
| Weight | Device unit: 1014g
Unit with giftbox and standard accessories:1990g
Docking:290g,10000mAh battery:250g |
| Device Color | Black(frant and rear Panel: black,Decorate board:black) |
| LCD | Screen Size | 10.1 inch 16:10 |
| Resolution | 800 (RGB)*1280 |
| Brightness | 250 cd/m2 |
| TP | Touch Panel | 10 points Capacitive,G+G,Rigidity: above 7H-Anti-scratch,TP
thickness:1.1mm,COF |
| Camera | Front | Front:2.0MP with chargeing indicator light |
| Rear | Rear: 5.0MP |
| Speaker | Built-in | Embedded 8Ω/0.8W waterproof speaker x 1 |
| Mic | Built-in | Sensitivity:-42db, output resistance:2.2kΩ |
| Battery | Type | Lithium-ion polymer battery , pluggable, dimension: 21.8*92.3*9.5mm |
| Capacity | 3.7V/8000mAh |
| Endurance | 8hrs(default 50% volumn,default200nit,play 1080P HD video) |
| System Hardware Configuration |
| Type | Details | Description |
| CPU | Type | MTK 8735A |
| Speed | 1.45GHZ |
| GPU | Type | ARM ® Cortex-A53 |
| RAM | DDR3L | 2GB |
| ROM | Emmc | 32GB |
| Light sensor | Built-in | Light sensor |
| Electronic compass | Built-in | electronic compass |
| Gyroscope | Built-in | gyroscope |
| G_sensor | Built-in | Gravity acceleration sensor |
| Network Connections |
| Type | Details | Descriptions |
| WIFI | WIFI module | WIFI 802.11(a/b/g/n) frequency 2.4G+5.8G dual band WIFI, |
| Bluetooth | Built-in | BT4.0 (BLE) class1.5 transmission distance:10m |
| 2G/3G/4G | Built-in | GSM/WCDMA Quad band,TD-SCDMA(B34,B39) & TDD(B38,B39,B40,B41)&
FDD(B1,B2,B3,B4,B5,B7,B8,B 17,B 20) |
| NFC | option | NXP NFC 13.56MHz support SO/IEC 14443A/14443B/15693/18092/mifare
protocol, Card reading distance: 4cm |
| Barcode scanner | option | Moto 4710 Optical Resolution:1280*800；5mil Scan speed:50/s Symbol
system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse
Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han
Xin,Han Xin Inverse |
| GPS | Built-in | MTK6625 4 in one,GPS+GLONASS |
| Interface Configuration |
| Type | Details | Descriptions |
| TF slot | Extensive External Memory | support SDHC/SDXC x1 max: 128G |
| SIM slot | SIM card | SIM card x1 |
| USB interface | data transmission | USB 2.0*1 (Host)for windows Android OTG x1 |
| Earphone Jack | Audio Output | ∮3.5mm standard earphone jack x1 |
| DC Jack | Power | DC 5V 3A ∮3.5mm Power connector x1 |
| HDMI interface | Video Output | HDMI 1.4a Type C x1 |
| Extensive Slot | pogo Pin | 12pin Pogo Pin x1 |
| Power on | press key | power key x1 |
| Volume + - | press key | power key x1,Volume + - x2 |
| Standard Accessories |
| Type | Details | Description |
| OTG cable | OTG cable | USB OTG to MICRO USB cable length:45mm |
| USB cable | USB cable | USB to micro 5P L=1.2M 4core aluminum foil shield cable |
| Power Adaptor | Standard | AC100V ~ 240V, 50Hz/60Hz output DC 5V/3A USA Standard CE approval |
|
| Optional Accessories |
| vehicle mount | vehicle mount | vehicle mount with charging/data transfer or USB transfer into RJ45 |
| docking station | docking station | docking station for charging and RJ45 |
| stylus | stylus | stylus |
| Software Configuration |
| Type | Details | Description |
| Operation System | OS version | Android 8.1 |
| Reliability |
| Type | Details | Descriptions |
| Product Reliability | Drop Height | 1.2m composite wood floors, in operation status |
| Operate Temperature | ‘-10 °C to 50 °C (-20 °C to 60 °C optional) |
| Store Temperature | ’-30 °C to 70 °C |
| Humidity | Humidity: 95% Non-Condensing |
Bright Alliance Services
Bright Alliance based on the continuous development of industrial
terminal technology, and independently develops the industrial
rugged devices, including Handheld computer (4 "/5" /6 "),rugged
tablet "7/8/10"), The protection level is as high as IP65~IP68, the
U.S. standard Mil-std-810g is shock-resistant and including 4G,
dual-frequency WiFi, Bluetooth 4.0, GLONASS/GPS, NFC, 1D/2D Barcode
scanner,Biometric fingerprint and RFID etc other technologies.And a
variety of accessories can be selected to meet customers' demand
for industry, aviation, aerospace, vehicle-mounted, police,
education, exploration, fishing animal husbandry, finance and other
industries.now our customers are mainly system integrator and
solution provider,create new service and usages to the end users.
FAQ
Question 1: Would you like to supply 1 sample for testing?
Yes, Of course. We can provide 1 sample rugged android tablet for
testing.
Question 2: What's the total price for 1 sample?
As a manufacturer of rugged tablets,the more you buy, the cheaper
it'll be.
The sample price is a little bit higher than the common wholesale
price
Question 3: What's your MOQ?
The MOQ of rugged android tablet is 1 piece.
Question 4: How long is the delivery time?
The delivery time of rugged android tablet goods is different from
quantities:
for samples, It's about 3-5 working days;
If 100~500 pcs, it's about 10--20 working days;
If More than 500 pcs, It's about 20-30 working days.
Question 5: Are you a manufacturer of rugged devices?
Yes, we have our own R&D team including software and hardware
engineers and assembly factory,mainly producing industrial PDA and
windows android rugged tablet ,.
Question 6: What kind of services do you support ?
1.We provide you Free SDK and Technical Support
2.We also provide ODM/OEM Customization Services based to your
demands.
3.We support 12 months Warranty for all the device and 6 months for
the batteries. Extension warranty, it costs 10% at the first year,
and 20% for the second year.
Question 7: What's for payment term and delivery term ?
1.It's generally 40%-100% TT in advance for all orders. Meanwhile,
Paypal or West Union is acceptable.
2. Exw Shenzhen or FCA HK as Trade Term.
Question 8: Who are your customers?
1. Our products have been sold to worldwide,especially market in
South/North America, Europe, Asia, Africa Mid-east, etc.
2.The market share is increasing quickly every year and we get more
and more positive feedbacks from our customers.
