| Product Outlook |
| Type | Details | Standard Configuration |
| Product Form | Type | Rugged Tablet |
| Dimension | 280*187*22mm |
| Weight | Device unit: 1014g
Unit with giftbox and standard accessories:1990g
Docking:290g,10000mAh battery:250g |
| Device Color | Black |
| LCD | Screen Size | 10.1 inch 16:10,800 (RGB)*1280,320 nits |
| TP | Touch Panel | 10 points Capacitive,G+G,Rigidity: above 7H-Anti-scratch,TP
thickness:1.1mm,COF |
| Camera | Front | Front:2.0MP with chargeing indicator light,Rear: 5.0MP |
| Speaker | Built-in | Embedded 8Ω/0.8W waterproof speaker x 1 |
| Mic | | Sensitivity:-42db, output resistance:2.2kΩ |
| Battery | Type | Lithium-ion polymer battery , pluggable, dimension:
21.8*92.3*9.5mm,3.7V/10000mAh |
| Endurance | 8hrs |
| System Hardware Configuration |
| Type | Details | Description |
| CPU | Type | Intel cherry Trail Z8350 |
| Speed | 1.33Ghz-1.92GHz |
| GPU | Type | Intel HD Graphic(Gen7) |
| RAM | DDR3L | 4GB |
| ROM | Emmc | 64GB,Option 128GB |
| G_sensor | Built-in | Gravity acceleration sensor |
| Network Connections |
| Type | Details | Descriptions |
| WIFI | WIFI Module | WIFI 802.11(a/b/g/n) Frequency 2.4G+5.8G dual band WIFI, |
| Bluetooth | Built-in | BT4.2 (BLE) class1.5 transmission distance:10m |
| 3G | Built-in | IC:H350-A30 WCDMA(900/2100MHz)HSDPA 7.2Mbps,HSUPA 5.76Mbps |
| 4G | Built-in | European/USA/Latin America bands |
| GPS | Built-in | Support :GLONASS,QZSS,GPS; Capture sensitivity: -160 dBm；Cool Start
Time:<30second,Hot start time:<28seconds,frequency:0.25 Hz …
10 MHz |
| NFC | Optional | NXP NFC 13.56MHz Support ISO/IEC 14443A/14443B/15693/18092/mifare
protocol,Card reading distance:4cm |
| Data Collection |
| Type | Details | Description |
| Fingerprint | Optional | S22A 120MHz basic frequency,1M Bits Flash Memory,128KB SRAM,Process
speed: fingerprint recognized time< 0.45 seconds |
|
| 1D Barcode scanner | Optional | MOTO SE655E100R Optical Position: 5mil Scan speed: 50/s Symbol
system:UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 93
,Code 11 |
|
|
| 2D Barcode Scanner | Optional | Honeywell N3680 Hardware decoder,Optical
Resolution:1280*800；5mil,Scan speed:50/s,Symbol system:PDF417,
MicroPDF417, Data Matrix, Aztec Inverses,Han Xin,Han Xin Inverse |
|
|

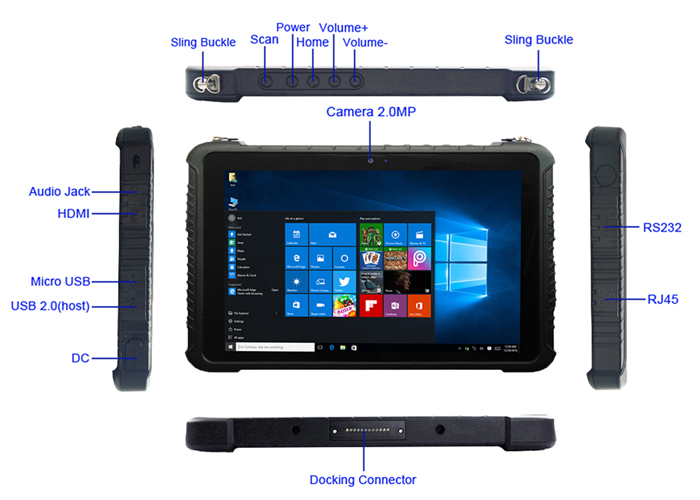

| Interface Configuration |
| Type | Details | Descriptions |
| TF slot | Extensive External Memory | Support SDHC/SDXC x1 max:128G |
| USB Interface | Extend external memory and data transfer | USB 2.0*1 (Host)for windows Android OTG x1 |
| Earphone Jack | Audio Output | ∮3.5mm standard earphone jack x1 |
| DC Jack | Power | DC 5V 3A ∮3.5mm Power connector x1 |
| HDMI | Video Output | HDMI 1.4a Type C x1 |
| Extensive Slot | pogo Pin | 12pin Pogo Pin x1 |
| DB9 PORT | Serial port | *1 (RS232) TTL electrical level |
| RJ45 PORT | internet port | *1(10/100 self-adaption) |
| Air outlet | Optional | *1( build in small board for customer customized )
TLU1HPO2H0709J-50( tong mao Plug)
LU1HR04H0709K(tong mao Plug) |
| Standard Accessories |
| Type | Details | Description |
| OTG Cable | OTG Cable | USB OTG to MICRO USB cable length:45mm |
| USB Cable | USB Cable | USB to micro 5P L=1.2M 4core aluminum foil shield cable |
| Power Adaptor | Standard | AC100V ~ 240V,50Hz/60Hz output DC 5V/3A USA Standard CE approval |
|
| Software Configuration |
| Type | Details | Description |
| Operation System | OS version | windows 10 Home Default language:English,optional Windows 10
Pro,Windows 10 IOT |
|
|
| Reliability |
| Type | Details | Descriptions |
| Product Reliability | Drop Height | 100cm composite wood floors, in operation status |
| Operate Temperature | ‘-10 °C to 50 °C (-20 °C to 60 °C optional) |
| Store Temperature | ’-30 °C to 70 °C |
| Humidity | Humidity: 95% Non-Condensing |
