    Rugged Windows Tablet Rugged Tablet Pc China 10.1 Inch IP65 BT616

    Ask Lasest Price
    Brand Name : BATL
    Model Number : BT616
    Certification : CE/ROSH/IP65
    Price : negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 2000 pieces/month
    Delivery Time : 5-25 working days
    • Product Details
    • Company Profile

    Rugged Windows Tablet Rugged Tablet Pc China 10.1 Inch IP65 BT616

    Rugged Windows Tablet Rugged Tablet Pc China 10.1 Inch IP65 BT616

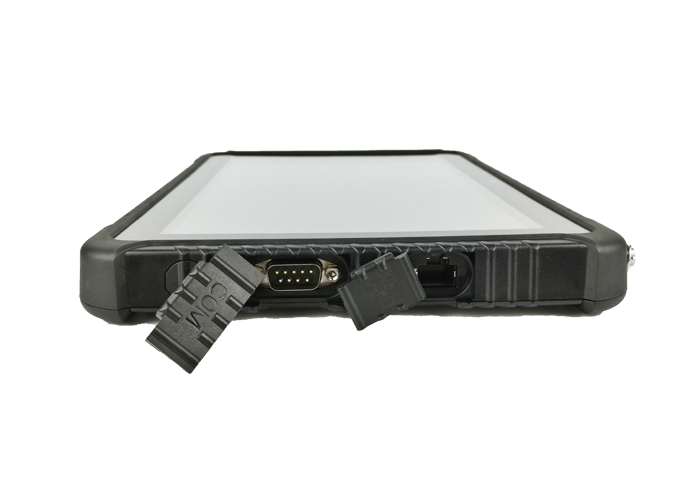

    BT616 it is a 10.1 inch IP65 Windows 10 Rugged tablet with option modules 1D/2D Barcode scanner,NFC reader and Biometric fingerprint, we use Corning Gorilla tempered glass touch panel with 7H anti-scratch and double injection mould housing to make it shockproof and sealed completely to make it IP65 water resistant,and the model we use Intel Cherrytrail Z8350 and Microsoft Windows 10 o.s,with dual band WIFI,Bluetooth 4.2 and 2G/3G/4G etc wireless technology,Meanwhile the model 2.0M front and 5.0M rear one and 10000 mah big battery make it working whole day,there are micro USB,type A,POGO PIN,D.C,HDMI,RS232,Ethernet etc ports,And we also design handstrap to better hold the device,cradle for better charging,and vehicle mount for better fixing and charging on the truck,and briefcase strap and shoulder strap for better carry,our customers they mainly use the devices in warehouse management,logistic,vehicle diagnosis, etc filed


    Product Outlook
    TypeDetailsStandard Configuration
    Product FormTypeRugged Tablet
    Dimension280*187*22mm
    WeightDevice unit: 1014g
    Unit with giftbox and standard accessories:1990g
    Docking:290g,10000mAh battery:250g
    Device ColorBlack(frant and rear Panel: black,Decorate board:black)
    LCDScreen Size10.1 inch 16:10,800 (RGB)*1280,320 nits
    TPTouch Panel10 points Capacitive,G+G,Rigidity: above 7H-Anti-scratch,TP thickness:1.1mm,COF
    CameraFrontFront:2.0MP with chargeing indicator light,Rear: 5.0MP
    SpeakerBuilt-inEmbedded 8Ω/0.8W waterproof speaker x 1
    MicSensitivity:-42db, output resistance:2.2kΩ
    BatteryTypeLithium-ion polymer battery , pluggable, dimension: 21.8*92.3*9.5mm,3.7V/10000mAh
    Endurance8hrs(default 50% volumn,default200nit,play 1080P HD video)
    System Hardware Configuration
    TypeDetailsDescription
    CPUTypeIntel cherry Trail Z8350
    Speed1.33Ghz-1.92GHz
    GPUTypeIntel HD Graphic(Gen7)
    RAMDDR3L4GB
    ROMEmmc64GB,Option 128GB
    G_sensorBuilt-inGravity acceleration sensor
    Network Connections
    TypeDetailsDescriptions
    WIFIWIFI ModuleWIFI 802.11(a/b/g/n) Frequency 2.4G+5.8G dual band WIFI,
    BluetoothBuilt-inBT4.2 (BLE) class1.5 transmission distance:10m
    3GBuilt-inIC:H350-A30 WCDMA(900/2100MHz)HSDPA 7.2Mbps,HSUPA 5.76Mbps
    4GBuilt-inEuropean/USA/Latin America bands
    GPSBuilt-inSupport :GLONASS,QZSS,GPS; Capture sensitivity: -160 dBm;Cool Start Time:<30second,Hot start time:<28seconds,frequency:0.25 Hz … 10 MHz (configurable)
    NFCOptionalNXP NFC 13.56MHz Support ISO/IEC 14443A/14443B/15693/18092/mifare protocol,Card reading distance:4cm
    Data Collection
    TypeDetailsDescription
    FingerprintOptionalS22A(FPC1020 Sensor, capacitance pressure type) 120MHz basic frequency,1M Bits Flash Memory,128KB SRAM,Process speed: fingerprint recognized time< 0.45 seconds
    1D Barcode scannerOptionalMOTO SE655E100R Optical Position: 5mil Scan speed: 50/s Symbol system:UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39 ,Code 32,Code 93 ,Code 11
    2D Barcode ScannerOptionalHoneywell N3680 Hardware decoder,Optical Resolution:1280*800;5mil,Scan speed:50/s,Symbol system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse
    Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse
    Interface Configuration
    TypeDetailsDescriptions
    TF slotExtensive External MemorySupport SDHC/SDXC x1 max:128G
    USB InterfaceExtend external memory and data transferUSB 2.0*1 (Host)for windows Android OTG x1
    Earphone JackAudio Output∮3.5mm standard earphone jack x1
    DC JackPowerDC 5V 3A ∮3.5mm Power connector x1
    HDMIVideo OutputHDMI 1.4a Type C x1
    Extensive Slotpogo Pin12pin Pogo Pin x1
    DB9 PORTSerial port*1 (RS232) TTL electrical level
    RJ45 PORTinternet port*1(10/100 self-adaption)
    Air outletOptional*1( build in small board for customer customized )
    TLU1HPO2H0709J-50( tong mao Plug)
    LU1HR04H0709K(tong mao Plug)
    Standard Accessories
    TypeDetailsDescription
    OTG CableOTG CableUSB OTG to MICRO USB cable length:45mm
    USB CableUSB CableUSB to micro 5P L=1.2M 4core aluminum foil shield cable
    Power AdaptorStandardAC100V ~ 240V,50Hz/60Hz output DC 5V/3A USA Standard CE approval
    Software Configuration
    TypeDetailsDescription
    Operation SystemOS versionwindows 10 Home Default language:English,optional Windows 10 Pro,Windows 10 IOT
    Reliability
    TypeDetailsDescriptions
    Product ReliabilityDrop Height100cm composite wood floors, in operation status
    Operate Temperature‘-10 °C to 50 °C (-20 °C to 60 °C optional)
    Store Temperature’-30 °C to 70 °C
    HumidityHumidity: 95% Non-Condensing

    Bright Alliance Services

    We focus on rugged tablet and handheld pda over 8 years.


    We can support completely Free SDK and technical support for you.


    ODM/OEM customization services according to your requirements.


    12 months warranty for your devices and other parts. and 6 months for the batteries. Free maintenance of the devices and part of accessories replacement in the warranty .if out of the warranty, you'll have to pay the basic cost for them.


    And experienced sales have better communication to get what you need and save your time

    FAQ

    Question 1: How about the model Memory?


    4GB RAM +64GB ROM

    Question 2: How long is the delivery time?

    The delivery time of rugged android tablet goods is different from quantities:
    for samples, It's about 3-5 working days;
    If 100~500 pcs, it's about 10--20 working days;
    If More than 500 pcs, It's about 20-30 working days.

    Question 3: Would you like to supply 1 sample for testing?

    Yes, Of course. We can provide 1 sample android rugged tablet for your testing.

    Question 4: What's the total price for 1 sample?

    As a manufacturer of rugged devices,the more you buy, the cheaper it'll be.
    The sample price is a little bit higher than the common wholesale price excluding the freight fee.

    Question 5: Are you a manufacturer of rugged devices?

    Yes, we have our own R&D team including software and hardware engineers and assembly factory,mainly producing

    industrial PDA and rugged tablet ,.

    Question 6: What kind of services do you support ?

    1.We provide you Free SDK and Technical Support

    2.We also provide ODM/OEM Customization Services based to your demands.
    3.We support 12 months Warranty for all the device and 6 months for the batteries. Extension warranty, it costs 10% at the first year, and 20% for the second year.
