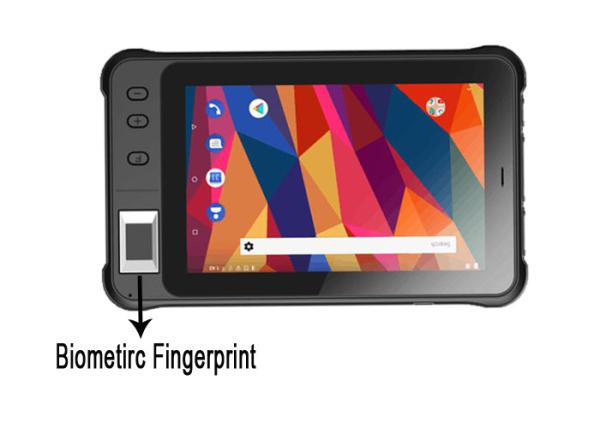

Rugged Android Tablet With Fingerprint Rugged IP67 Tablet Pc Nfc
BT75
Dual band WIFI,BT 4.0,2G/3G/LTE data transfer
Front 5.0M/Back 13.0M camera
7500mah big battery continuously working 10-12 hours
IP67 7 inch 1000 nits brightness display for outdoor use
MTK Quad core Android 8.1 o.s
Corning touch panel and Double injection mould housing for better
shockproof
Big memory 2 GB RAM and 32 GB ROM
GPS+Glonass navigation
Optional Biometric fingerprint,UHF RFID,NFC etc
Standard accessories hand strap,charger,OTG cable,USB cable etc
  Product Appearance |
| Type | Details | Standard Configuration |
| Product Form | Product Form | 7 inch 2 in1 rugged notebook |
| Dimension | 217*134*18.6mm |
| Weight | |
| Product Color | Black (front + rear) |
| LCD | Screen Size | 7 inch 16:10 |
| Resolution | 800*1280 IPS |
| Brightness | Minimum 1000cd/m2 |
| TP | Touch panel | 5 points capacity TP,G+G,hardness over 7H, scratch resistant, TP
thickness:1.1mm,COF, support touch with wearing gloves and wet
finger |
| Camera | Front | Front 5.0MP |
| Rear | Rear 13MP ,Auto focus with flash |
| Speaker | Built-in | built-in 8Ω/1W Boss speaker x 1 |
| Microphone | Built-in | Sensitivity: -42db, output impedance 2.2kΩ |
| Battery(tablet) | Type | Removable Li-polymer battery |
| Capacity | calculate 3.7V/7500mAh |
| Endurance | nearly 10hours ( 50% volume sounds, Max top brightness, 1080P HD
video display by default ) |
| System Hardware Configuration |
| Type | Details | Descriptions |
| CPU | Type | MTK 8735A quadcore |
| Speed | 1.45GHZ |
| GPU | type | ARM ® Cortex-A53 |
| RAM | DDR3L | 2GB LPDDR3 |
| ROM | Emmc | 32GB EMMC |
| Indicator light | Built-in | Charging indicator light,which is red flash when low power,keeping
on red light when power more than 20% , ,keeping on green light
when full charged .
|
| L/P-Sensor | Built-in | Light/Proximity sensors |
| Compass sensor | Built-in | Compass sensor |
| gyroscope | Gyroscope | Gyroscope |
| G_sensor | Built-in | G_sensor |
| Internet Connections |
| Type | Details | Descriptions |
| WIFI | WIFI module | WIFI 802.11(ac/a/b/g/n) dual frequency 2.4G+5.8G WIFI |
| Bluetooth | Built-in | BT4.0 (BLE) class1.5 Transmission distance :10m |
| 2G/3G/4G | Built-in | GSM & WCDMA & TD-S(B34,B39) & TDD(B38,B39,B40,B41)&
FDD(B1,B2,B3,B4,B5,B7,B8,B 17,B 20) |
| GPS | Built-in | MT6630 4in1 chipset,support GPS,BeiDou,Glonass,(GPS+BeiDou by
default) |
| Data collection |
| Type | Details | Descriptions |
| one-dimension barcode | optional | Honeywell N4313,Optical resolution:5 mil,scan speed:50 times/s,Code
system:UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code
128,GS1-128,etc |
| Two-dimension barcode | optional | Honeywell N3680/SE4710/6603,Optical resolution:5 mil,scan speed:50
times/sCode system:PDF417, MicroPDF417, Data Matrix, Data Matrix
Inverse
Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses, |
| NFC | optional | DS_ST21NFCD_V3:
identification distance :2-4cm |
| RFID | optional | 1:read ISO14443A UID；
2:read ISO14443A/B,the 2nd generation UID；
3:read ISO14443A/B/15693/Felica；
PS:(Select one from three as above) |
| ID Module | optional | support reading the 2nd,the 3rd ID card information and the
fingerprint information built-in. |
| Fingerprint | optional | the fingerprint module authenticated by Chinese Ministry of public
security, support the collection of resident fingerprint which
built in their ID card. |
| UHF | optional | 1:PR9200,recognition distance:1m~1.5M,TTL port
2:M-550 UHF RFID slim all-in-one module: |
| I/O Ports |
| Type | Details | Descriptions |
| TF card | Extending external storage | x1 max:128G |
| USB port | Extending external storage and data exchange | MicroUSB 2.0*1 , Android OTG x1 |
| earphone jack | audio output | ∮3.5mm standard earphone jack x1 |
| DC jack | power | waterproof DC 5V 3A ∮3.5mm DC jack x1 |
| HDMI port | video,audio output | HDMI 1.4a Type C x1 |
| Extension interface | pogo Pin | 12pin Pogo Pin x1( USB + UART + power ) |
| Standard Accessories |
| Type | Details | Descriptions |
| OTG Cable | OTG Cable | USB OTG turn MICRO USB cable length 45mm |
| USB Cable | USB Cable | USB turn micro 5P L=1.2M 4 wires with aluminium foil and shielding |
| Adapter | Standard | AC100V ~ 240V,50Hz/60Hz Output DC 5V/3A Europe standard with CE
certificate |
|
| Software Configuration |
| Type | Details | Descriptions |
| Operation System | Operation System
Version | Android 8.1 |
| Product Certificate |
| Type | Details | Descriptions |
| Certificates System | IP67 | IPX7
Testing:soaking in short time
Testing equipment:soaking tank.
Testing condition:put the sample into the soaking tank which is
filled with water,the distance which is from sample bottom side to
water surface,should be more than 1m. The distance which is from
sample top side to water surface,should be more than 0.15m.
Testing time: 30 min |
| CE NB | Y |
| MIL-STD-810G | Y |
| Battery | UN38.3,MSDS, Aviation report, Sea transportation report, IEC62133 |
| Reliability |
| Type | Details | Descriptions |
| Product reliability | Falling height | from 120cm height to wooden floor with booting status |
| Working temperature | ‘-10 °C to 50°C |
| Storage temperature | ’-30 °C to 70 °C |
| Humidity | Humidity: 95% Non-Condensing |
Bright Alliance Services
We focus on rugged tablet and handheld pda over 8 years.
We can support completely Free SDK and technical support for you.
ODM/OEM customization services according to your requirements.
12 months warranty for your devices and other parts. and 6 months
for the batteries. Free maintenance of the devices and part of
accessories replacement in the warranty .if out of the warranty,
you'll have to pay the basic cost for them.
And experienced sales have better communication to get what you
need and save your time
FAQ
Q: What kind of services do you support ?
1.We provide you Free SDK and Technical Support
2.We also provide ODM/OEM Customization Services based to your
demands.
3.We support 12 months Warranty for all the device and 6 months for
the batteries. Extension warranty, it costs 10% at the first year,
and 20% for the second year.
Q: How long is the delivery time?
The delivery time of rugged android tablet goods is different from
quantities:
for samples, It's about 3-5 working days;
If 100~500 pcs, it's about 10--20 working days;
If More than 500 pcs, It's about 20-30 working days
Q: Are you a manufacturer of rugged devices?
Yes, we have our own R&D team including software and hardware
engineers and assembly factory,mainly producing industrial PDA and
rugged tablet ,.
Q:how many pcs we have sold one year.
A:we sold 30000 pcs one year
Q: How can I pay for the order?
A: Our payment terms: T/T, Western Union, Paypal, Credit card
1) For sample order: 100% T/T or Western Union in advance, Paypal
is also acceptable.
2) For bulk order: 40%deposit T/T in advance, balance clear before
pick up or shipment.
Q: How long is the delivery time?
The delivery time of rugged android tablet goods is different from
quantities:
for samples, It's about 3-5 working days;
If 100~500 pcs, it's about 10--20 working days;
If More than 500 pcs, It's about 20-30 working days
