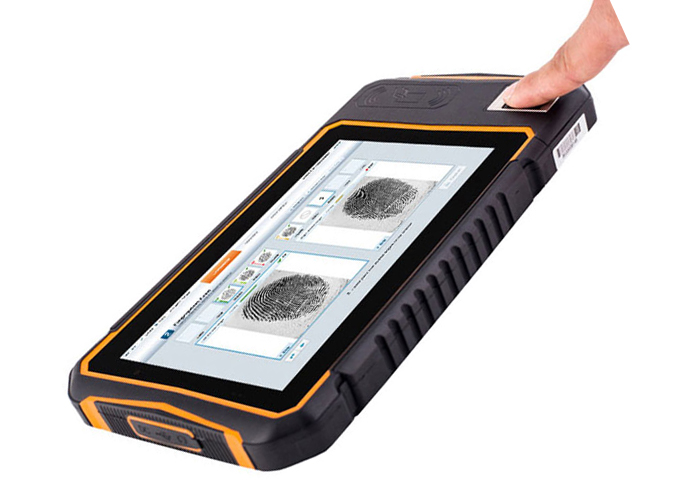

| Features | IP64 7.0 inch rugged tablet |
| Physical Parameters | Weight | 650g(including battery) |
| Size | 242*129*21mm |
| Basic | CPU | MTK6737 Quad A53 1.3GHz quad-core |
| Memory | 2GB RAM + 16GB ROM |
| OS | Android 7.0 |
| Display | Gorilla Glass 3 9H 7.0 inch TFT-LCD(720x1280)touch screen with
backlight |
| Touch Screen | 5 point touch |
| GSM | 850/900/1800/1900MHz |
| WCDMA | 850/1900/2100MHz |
| LTE | TDD-LTE Band 38, 39, 40, 41 FDD-LTE Band 1, 2, 3, 4, 7, 17, 20; |
| Camera | 2.0MP Front + 8.0MP Camera, Auto-focus with LED flash |
| WIFI | 2.4GHz/5.8GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac |
| Bluetooth | Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0 |
| GPS | GPS(embedded A-GPS), accuracy of 5 m |
| Battery | 10000mAh |
| Standby Time | 720 hours |
| Charging Time | < 5 hours |
RFID
(Optional) | Ultra High Frequency | Built-in 1.5m or with pack 5m distance for EPC C1 GEN2 / ISO18000-6
- c protocol of 860-960MHZ tag read operation |
| High frequency | 0 - 7 cm range for ISO15693, ISO14443A double deal 13.56 MHz tags
for reading and writing |
| Low frequency | 125 K / 134.2 K animal ear tag (Mifare Classic) |
NFC (NXP548)
Built in | Frequency | 13.56MHz |
| Baud Rate | 9600-115200 bits/s |
| Support Protocol | ISO/IEC 14443A/B/15693 |
| Support Card | Mifare One S50/Ultralight/One S70/Pro, Ntag203, AT88RF020,
66CL160S, SR176, SRIX4K, I-code 1/2, TI RFID Tag-it HF-I, EM4135,
EM4034 |
1D Barcode
(Optional) | Module | Honeywell N4313 |
| Support | Code 39, Code 93, Code 128, UPC-A, UPC-E, ITF 14, UCC/EAN-128, ITF
25, Matrix 25,etc. |
| Read distance | 0 cm - 50 cm |
| Read Speed | 104 ± 12 scans/S |
| First read rate | > 99% |
| Error rate | < 0.01% |
| false reject rate | < 0.01% |
QR code scanner
(Optional) | Honeywell-6603 | Software decoding - error rate < 0.01% |
| 2D Code | PDF417, MicroPDF417, MaxiCode, Data Matrix, QR Code, etc |
| 1D Code | Code 39, Code 128, Codabar, UPC,Codablock |
| Postal Code | Postnet (US), Planet Code, Japanese Post, etc |
Fingerprint
(Optional) | Module | TouchChip® TCS1 |
| Sensor types | inductive, image size: 256 * 360, image resolution: 508 dpi |
| Registration time | < 0.5 seconds |
| comparing time | < 0.1 s |
| Boomed from | < 0.1% |
| recognize rate | > 99.999% |
| fingerprint capacity | 1000 |
Active in Close Communication
(Optional) | Active 2.45G | Distance is 200m, can be read all at once |
| 433 | Can Read more than 200m distance(Adjustablet) |
| Development Environment |
| SDK | HHW Software Development Kit |
| Language | Java |
| Environment | Android Studio or Eclipse |
| Accessories |
| Accessories | Standard | 1xPower Supply; 1xLithium Polymer Battery; 1xDC charging cable;
1xUSB data cable |
| Optional accessories | carry bag/docking station |
| Environment | Operating temperature | (-20℃) - (50℃) |
| Storage temperature | (-20℃) - (70℃) |
| Relative humidity | 10% - 90%RH |
