Rugged Industrial Tablet Rugged 7 Inch Android Tablet IP67 BT75

BT75 it is a 7.0 inch IP67 Sunlight readable Rugged tablet with option modules 1D/2D barcode scanner,NFC reader,built in UHF RFID,13.56 HF RFID,Biometric fingerprint etc,we use Corning Gorilla tempered glass touch panel and double injection mould housing to make it shockproof and the model with Quad core CPU and Android 8.1 o.s,with dual band WIFI,Bluetooth 4.0 and 2G/3G/4G etc wireless technology,Meanwhile the model with 5.0M front camera and 13.0M rear one,the most important with built in 7500mah big battery to make it continuously working 10-14 hours, And there are HDMI D.c Micro USB etc ports,And we also design hand strap to better hold the device,they mainly use the devices in warehouse management,Security,retail shops and some install their own Application to control special projects

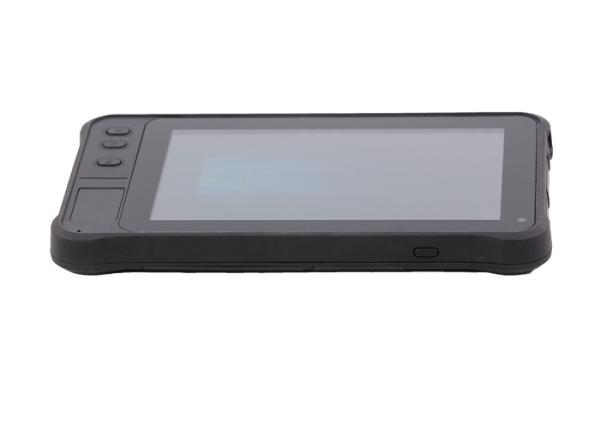

Product Appearance
Type		Details		Standard Configuration
Product Form		Product Form		7 inch 2 in1 rugged notebook
		Dimension		217*134*18.6mm
		Weight
		Product Color		Black (front + rear)
LCD		Screen Size		7 inch 16:10
		Resolution		800*1280 IPS
		Brightness		Minimum 1000cd/m2
TP		Touch panel		5 points capacity TP,G+G,hardness over 7H, scratch resistant, TP thickness:1.1mm,COF, support touch with wearing gloves and wet finger
Camera		Front		Front 5.0MP
		Rear		Rear 13MP ,Auto focus with flash
Speaker		Built-in		built-in 8Ω/1W Boss speaker x 1
Microphone		Built-in		Sensitivity: -42db, output impedance 2.2kΩ
Battery(tablet)		Type		Removable Li-polymer battery
		Capacity		calculate 3.7V/7500mAh
		Endurance		nearly 10hours ( 50% volume sounds, Max top brightness, 1080P HD video display by default )
System Hardware Configuration
Type		Details		Descriptions
CPU		Type		MTK 8735A quadcore
		Speed		1.45GHZ
GPU		type		ARM ® Cortex-A53
RAM		DDR3L		2GB LPDDR3
ROM		Emmc		32GB EMMC
Indicator light		Built-in		Charging indicator light,which is red flash when low power,keeping on red light when power more than 20% , ,keeping on green light when full charged .
L/P-Sensor		Built-in		Light/Proximity sensors
Compass sensor		Built-in		Compass sensor
gyroscope		Gyroscope		Gyroscope
G_sensor		Built-in		G_sensor
Internet Connections
Type		Details		Descriptions
WIFI		WIFI module		WIFI 802.11(ac/a/b/g/n) dual frequency 2.4G+5.8G WIFI
Bluetooth		Built-in		BT4.0 (BLE) class1.5 Transmission distance :10m
2G/3G/4G		Built-in		GSM & WCDMA & TD-S(B34,B39) & TDD(B38,B39,B40,B41)& FDD(B1,B2,B3,B4,B5,B7,B8,B 17,B 20)
GPS		Built-in		MT6630 4in1 chipset,support GPS,BeiDou,Glonass,(GPS+BeiDou by default)
Data collection
Type		Details		Descriptions
one-dimension barcode		optional		Honeywell N4313,Optical resolution:5 mil,scan speed:50 times/s,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Code 93 ,Code 11
Two-dimension barcode		optional		Honeywell N3680/SE4710/6603,Optical resolution:5 mil,scan speed:50 times/sCode system:PDF417, QR Code, MicroQR, Aztec Inverses,Han Xin,Han Xin Inverse
NFC		optional		DS_ST21NFCD_V3: identification distance :2-4cm
RFID		optional		1:read ISO14443A UID； 2:read ISO14443A/B,the 2nd generation UID； 3:read ISO14443A/B/15693/Felica； PS:(Select one from three as above)
ID Module		optional		support reading the 2nd,the 3rd ID card information and the fingerprint information built-in.
Fingerprint		optional		the fingerprint module authenticated by Chinese Ministry of public security, support the collection of resident fingerprint which built in their ID card.
UHF		optional		1:PR9200,recognition distance:1m~1.5M,TTL port 2:M-550 UHF RFID slim all-in-one module:
I/O Ports
Type		Details		Descriptions
TF card		Extending external storage		x1 max:128G
USB port		Extending external storage and data exchange		MicroUSB 2.0*1 , Android OTG x1
earphone jack		audio output		∮3.5mm standard earphone jack x1
DC jack		power		waterproof DC 5V 3A ∮3.5mm DC jack x1
HDMI port		video,audio output		HDMI 1.4a Type C x1
Extension interface		pogo Pin		12pin Pogo Pin x1( USB + UART + power )
Standard Accessories
Type		Details		Descriptions
OTG Cable		OTG Cable		USB OTG turn MICRO USB cable length 45mm
USB Cable		USB Cable		USB turn micro 5P L=1.2M 4 wires with aluminium foil and shielding
Adapter		Standard		AC100V ~ 240V,50Hz/60Hz Output DC 5V/3A Europe standard with CE certificate
Software Configuration
Type		Details		Descriptions
Operation System		Operation System Version		Android 8.1
Product Certificate
Type		Details		Descriptions
Certificates System		IP67		IPX7 Testing:soaking in short time Testing equipment:soaking tank. Testing condition:put the sample into the soaking tank which is filled with water,the distance which is from sample bottom side to water surface,should be more than 1m. The distance which is from sample top side to water surface,should be more than 0.15m. Testing time: 30 min
		CE NB		Y
		MIL-STD-810G		Y
		Battery		UN38.3,MSDS, Aviation report, Sea transportation report, IEC62133
Reliability
Type		Details		Descriptions
Product reliability		Falling height		from 120cm height to wooden floor with booting status
		Working temperature		‘-10 °C to 50°C
		Storage temperature		’-30 °C to 70 °C
		Humidity		Humidity: 95% Non-Condensing

Bright Alliance Services

Bright Alliance based on the continuous development of industrial terminal technology, and independently develops the industrial rugged devices,including Handheld pda and rugged tablet And a variety of accessories can be selected to meet customers' demand for industry, aviation, aerospace, vehicle-mounted, police, education, exploration, fishing animal husbandry, finance and other industries.now our customers are mainly system integrator and solution provider,create new service and usages to the end users.

FAQ

Question 1: Does it readable under sunlight?

Yes.the model with 1000 nits high brightness display,you can see it under sunlight easily

Question 2: Would you like to supply 1 sample for testing?

Yes, Of course. We can provide 1 sample rugged android tablet for testing.

Question 3: What's the total price for 1 sample?

As a manufacturer of rugged tablets,the more you buy, the cheaper it'll be.
The sample price is a little bit higher than the common wholesale price

Question 4: How long is the delivery time?

The delivery time of rugged android tablet goods is different from quantities:
for samples, It's about 3-5 working days;
If 100~500 pcs, it's about 10--20 working days;
If More than 500 pcs, It's about 20-30 working days.

Bright Alliance uses its expertise to create and provide Rugged Mobile Appliances based on wireless and contactless technologies.Barcode scanner,RFID,NFC,Biometric strong authentication,and secure hardware architecture.

We are a rugged device manufacturer,and our customers are integrators and solution providers,creating new services and usages such as Fleet management,warehouse management,retails,security,ID control,voting control,offense ticket management,SIM card registration,or mobile payment.Medication,logistic and Government & private sector,to name just a few.

We control the full chain.from mechanical design to PCB,or even antennas,and we are able to work on various project sizes,from pilots to high volumes.
