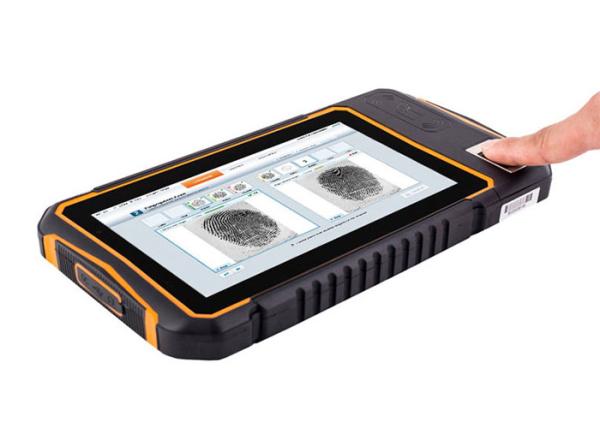

Rugged Android Tablet With Fingerprint Best Rugged Android Tablet
7.0 inch IP64 BT77
7 inch professional android rugged tablet for many fields we use
Corning Gorilla tempered glass touch panel and double injection
mould housing to make it MIL-STD-810G standard and shockproof
option modules built in uhf rfid and external long range uhf
rfid,lf rfid,nfc reader,barcode scanner,with 2.0M front camera and
back 8.0M,10000mah big battery to make it work for whole day,micro
USB port it can support OTG transfer into RJ45,Quad core CPU and
Android 7.0 OS,hand strap for better carry,Now our customers they
mainly use the devices in animal management,identification for
VIP,goods tracking etc
| Features | IP64 7.0 inch rugged tablet |
| Physical Parameters | Weight | 650g(including battery) |
| Size | 242*129*21mm |
| Basic | CPU | MTK6737 Quad A53 1.3GHz quad-core |
| Memory | 2GB RAM + 16GB ROM |
| OS | Android 7.0 |
| Display | Gorilla Glass 3 9H 7.0 inch TFT-LCD(720x1280)touch screen with
backlight |
| Touch Screen | 5 point touch |
| GSM | 850/900/1800/1900MHz |
| WCDMA | 850/1900/2100MHz |
| LTE | TDD-LTE Band 38, 39, 40, 41 FDD-LTE Band 1, 2, 3, 4, 7, 17, 20; |
| Camera | 2.0MP Front + 8.0MP Camera, Auto-focus with LED flash |
| WIFI | 2.4GHz/5.8GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac |
| Bluetooth | Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0 |
| GPS | GPS(embedded A-GPS), accuracy of 5 m |
| Battery | 10000mAh |
| Standby Time | 720 hours |
| Charging Time | < 5 hours |
RFID
(Optional) | Ultra High Frequency | Built-in 1.5m or with pack 5m distance for EPC C1 GEN2 / ISO18000-6
- c protocol of 860-960MHZ tag read operation |
| High frequency | 0 - 7 cm range for ISO15693, ISO14443A double deal 13.56 MHz tags
for reading and writing |
| Low frequency | 125 K / 134.2 K animal ear tag (Mifare Classic) |
NFC (NXP548)
(Optional) | Frequency | 13.56MHz |
| Baud Rate | 9600-115200 bits/s |
| Support Protocol | ISO/IEC 14443A/B/15693 |
| Support Card | Mifare One S50/Ultralight/One S70/Pro, Ntag203, AT88RF020,
66CL160S, SR176, TI RFID Tag-it HF-I, etc |
1D Barcode
(Optional) | Module | Honeywell N4313 |
| Support | Code 39, Code 93, Code 128, Code bar, EAN-8, UPC-A, UPC-E, ITF 14
etc |
| Read distance | 0 cm - 50 cm |
| Read Speed | 104 ± 12 scans/S |
| First read rate | > 99% |
| Error rate | < 0.01% |
| false reject rate | < 0.01% |
QR code scanner
(Optional) | Honeywell-6603 | Software decoding - error rate < 0.01% |
| 2D Code | PDF417, MicroPDF417, MaxiCode, Data Matrix, QR Code, Aztec, Aztec
Mesa, Code 49 |
| 1D Code | Code 39, Code 128, Codabar, UPC, EAN, Reduced Space Symbology |
| Postal Code | Postnet (US), Planet Code, BPO 4 State, Canadian Post, Japanese
Post |
Fingerprint
Built in | Module | TouchChip® TCS1 |
| Sensor types | inductive, image size: 256 * 360, image resolution: 508 dpi |
| Registration time | < 0.5 seconds |
| comparing time | < 0.1 s |
| Boomed from | < 0.1% |
| recognize rate | > 99.999% |
| fingerprint capacity | 1000 |
Active in Close Communication
(Optional) | Active 2.45G | Distance is 200m, can be read all at once |
| 433 | Can Read more than 200m distance(Adjustablet) |
| Development Environment |
| SDK | HHW Software Development Kit |
| Language | Java |
| Environment | Android Studio or Eclipse |
| Accessories |
| Accessories | Standard | 1xPower Supply; 1xLithium Polymer Battery; 1xDC charging cable;
1xUSB data cable |
| Optional accessories | carry bag/docking station |
| Environment | Operating temperature | (-20℃) - (50℃) |
| Storage temperature | (-20℃) - (70℃) |
| Relative humidity | 10% - 90%RH |
FAQ
Question 1: What kind of services do you support ?
1.We provide you Free SDK and Technical Support
2.We also provide ODM/OEM Customization Services based to your
demands.
3.We support 12 months Warranty for all the device and 6 months for
the batteries. Extension warranty, it costs 10% at the first year,
and 20% for the second year.
Question 2: Are you a manufacturer of rugged devices?
Yes, we have our own R&D team including software and hardware
engineers and assembly factory,mainly producing industrial PDA and
rugged tablet ,.
Question 3: How long is the delivery time?
The delivery time of rugged android tablet goods is different from
quantities:
for samples, It's about 3-5 working days;
If 100~500 pcs, it's about 10--20 working days;
If More than 500 pcs, It's about 20-30 working days.
Question 4: Who are your customers?
1. Our products have been sold to worldwide,especially market in
South/North America, Europe, Asia, Africa Mid-east, etc.
2.The market share is increasing quickly every year and we get more
and more positive feedbacks from our customers
Question 5: What's your MOQ?
The MOQ of rugged tablet is 1 piece.
Question 6: What's for payment term and delivery term ?
1.It's generally 40%-100% TT in advance for all orders. Meanwhile,
Paypal or West Union is acceptable.
2. Exw Shenzhen or FCA HK as Trade Term.
Bright Alliance based on the continuous development of industrial
terminal technology and independently develops the industrial
rugged devices, including Handheld computer and rugged tablet,And a
variety of accessories can be selected to meet customers' demand
for industry, aviation, aerospace, vehicle-mounted, police,
education, exploration, fishing animal husbandry, finance and other
industries.now our customers are mainly system integrator and
solution provider,create new service and usages to the end users.
