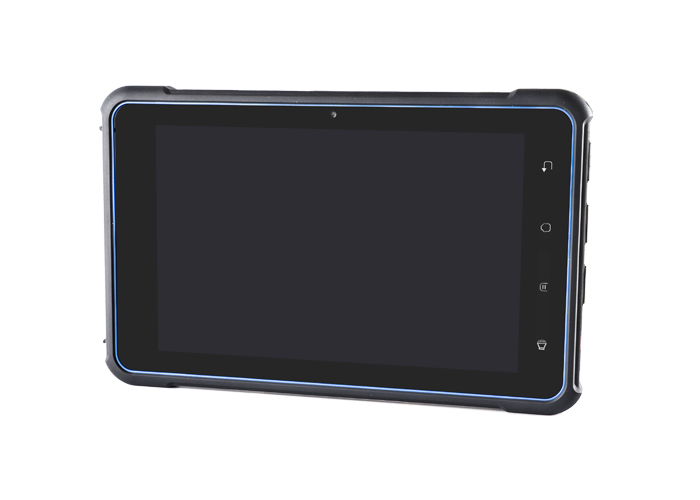

Industrial Grade Tablet Pc Ruggedized Tablet Pc 8.0 Inch BT89
Standard accessories hand strap,wall charger etc
Scenario install customers app for special projects,goods tracking
Corning Gorilla tempered glass and Double injection mould housing
to make it shockproof
Octa core Android 7.0 o.s
8 inch IP67 800*1280 380 nits display
RAM 2GB/ROM 32GB
Dual band WIFI,BT 4.0,2G/3G/LTE wireless transmit
Support GPS/GLONASS navigation
Front 5.0M/rear 13.0M camera
8000mah big battery
Option Barcode scanner ,rfid reader,nfc etc
Support OTG and USB transfer into RS232 or Ethernet
| BT89--RUGGED TABLET SPECIFICATION |
| Model No. | BT89 |
| IP Standard | IP67 Waterproof/Shockproof |
| Shockproof | 1 meter high drop |
| Basic | CPU | MT6753 Quad Core 1.3GHz |
| Memory | LPDDR3 2GB + EMMC 16GB or 3GB RAM+32GB ROM |
| OS | Android 7.0 |
| Display | 8.0 inch OGS sunlight readable 1280*800 |
| Touch Screen | 5 point touch |
| GSM | 850/900/1800/1900MHz |
| WCDMA | 850/1900/2100MHz |
| LTE | FDD B1/B2/B3/B4/B7/B17/B20 TDD B38/B39/B40 |
| Camera | 5.0MP Front + 13.0MP Camera with auto focus |
| WIFI | IEEE 802.11a/b/g/n |
| Bluetooth | v4.0 - Low Energy Consumption |
| GPS | Satellite Navigation GPS chip Built-in, Support A-GPS,EPO |
| Battery | 8000mAh |
| Standby Time | 720 hours |
| Charging Time | < 5 hours |
| Interface(optional) | UART-TTL/RS485/SPI/I2C/USB OTG/ADC/GPIO/INT |
| special functions | we can install cusotmer modules inside of tablet for fulfill
customers projects |
RFID
(Optional) | Ultra High Frequency | Built-in 2-8 m for EPC C1 GEN2 / ISO18000-6 - c protocol of
860-960MHZ tag read operation |
| High frequency | 0 - 7 cm range for ISO15693, ISO14443A double deal 13.56 MHz tags
for reading and writing |
| Low frequency | 125 K / 134.2 K animal ear tag (Mifare Classic) |
NFC (NXP548)
Built in | Frequency | 13.56MHz |
| Baud Rate | 9600-115200 bits/s |
| Support Protocol | ISO/IEC 14443A/B/15693 |
| Support Card | Mifare One S50/Ultralight/One S70/Pro, Ntag203, |
1D Barcode
(Optional) | Module | Honeywell N4313 |
| Support | Code 39, Code 93, Code 128, Code bar |
| Read distance | 0 cm - 50 cm |
| Read Speed | 104 ± 12 scans/S |
| First read rate | > 99% |
| Error rate | < 0.01% |
| false reject rate | < 0.01% |
2D Barcode
(Optional) | Honeywell-6603/Newland 3396 | Software decoding - error rate < 0.01% |
| 2D Code | PDF417, MicroPDF417, MaxiCode, QR Code, |
| 1D Code | Code 39, Code 128, Codabar, UPC, Code 93, Codablock |
| Postal Code | Postnet (US), Planet Code, BPO 4 State, Canadian Post |
Active in Close Communication
(Optional) | Active 2.45G | Distance is 200m, can be read all at once |
| 433 | Can Read more than 200m distance(Adjustablet) |
| Environment | Operating temperature | (-20℃) - (50℃) |
| Storage temperature | (-20℃) - (70℃) |
| Relative humidity | 10% - 90%RH |
| Physical Parameters | Weight | 670g(including battery) |
| Size | 230*146*20mm |
