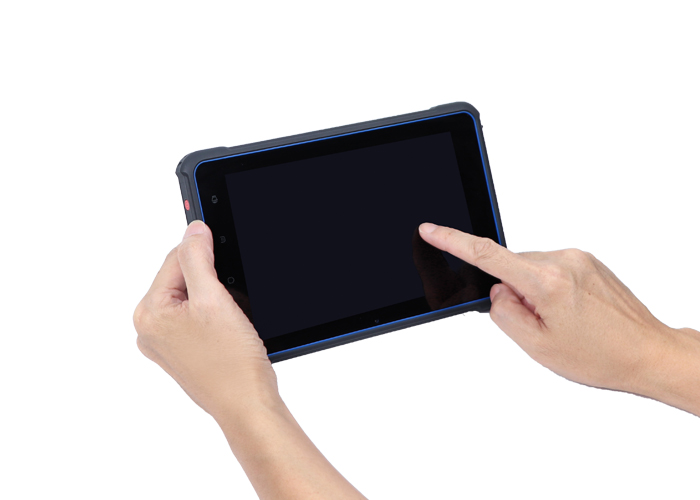

Rugged Tablet IP67 Rugged Android Tablet Industrial 8.0 Inch BT89
8 inch professional android rugged tablet for many fields we use
Corning Gorilla tempered glass touch panel and double injection
mould housing to make it MIL-STD-810G standard and shockproof and
sealed completely to make it waterproof,option modules uhf rfid,lf
rfid,nfc reader,barcode scanner,with 5.0M front camera and back
13.0M,8000mah big battery to make it work for whole day,USB port it
can support OTG transfer into RJ45 Octa core CPU and Android 7.0
OS,hand strap for better carry,Now our customers they mainly use
the devices in animal management,identification for VIP etc
| BT89--RUGGED TABLET SPECIFICATION |
| Model No. | BT89 |
| IP Standard | IP67 Waterproof/Shockproof |
| Shockproof | 1 meter high drop |
| Basic | CPU | MT6753 Quad Core 2.0 GHz |
| Memory | 2GB RAM+16GB ROM or 3GB RAM+32GB ROM |
| OS | Android 7.0 |
| Display | 8.0 inch OGS sunlight readable 1280*800 |
| Touch Screen | 5 point touch |
| GSM | 850/900/1800/1900MHz |
| WCDMA | 850/1900/2100MHz |
| LTE | FDD B1/B2/B3/B4/B7/B17/B20 TDD B38/B39/B40 |
| Camera | 5.0MP Front + 13.0MP Camera with auto focus, Flashlight |
| WIFI | IEEE 802.11a/b/g/n |
| Bluetooth | v4.0 - Low Energy Consumption |
| GPS | Satellite Navigation GPS chip Built-in, Support A-GPS,EPO |
| Battery | 8000mAh |
| Standby Time | 720 hours |
| Charging Time | < 5 hours |
| Interface(optional) | UART-TTL/RS485/SPI/I2C/USB OTG/ADC/GPIO/INT |
| special functions | we can install cusotmer modules inside of tablet for fulfill
customers projects |
RFID
(Optional) | Ultra High Frequency | Built-in 2-8 m for EPC C1 GEN2 / ISO18000-6 - c protocol of
860-960MHZ tag read operation |
| High frequency | 0 - 7 cm range for ISO15693, ISO14443A double deal 13.56 MHz tags
for reading and writing |
| Low frequency | 125 K / 134.2 K animal ear tag (Mifare Classic) |
NFC (NXP548)
Built in | Frequency | 13.56MHz |
| Baud Rate | 9600-115200 bits/s |
| Support Protocol | ISO/IEC 14443A/B/15693 |
| Support Card | Mifare One S50/Ultralight/One S70/Pro, Ntag203, |
1D Barcode
(Optional) | Module | Honeywell N4313 |
| Support | Code 39, Code 93, Code 128, Code bar |
| Read distance | 0 cm - 50 cm |
| Read Speed | 104 ± 12 scans/S |
| First read rate | > 99% |
| Error rate | < 0.01% |
| false reject rate | < 0.01% |
2D Barcode
(Optional) | Honeywell-6603/Newland 3396 | Software decoding - error rate < 0.01% |
| 2D Code | PDF417, MicroPDF417, MaxiCode, Data Matrix, QR Code, |
| 1D Code | Code 39, Code 128, Codabar, UPC, EAN, Reduced Space Symbology, Code
93, Codablock |
| Postal Code | Postnet (US), Planet Code, BPO 4 State, Canadian Post, Japanese
Post, KIX (Netherlands) Post |
Active in Close Communication
(Optional) | Active 2.45G | Distance is 200m, can be read all at once |
| 433 | Can Read more than 200m distance(Adjustablet) |
| Environment | Operating temperature | (-20℃) - (50℃) |
| Storage temperature | (-20℃) - (70℃) |
| Relative humidity | 10% - 90%RH |
| Physical Parameters | Weight | 670g(including battery) |
| Size | 230*146*20mm |
FAQ
Question 1: What kind of services do you support ?
1.We provide you Free SDK and Technical Support
2.We also provide ODM/OEM Customization Services based to your
demands.
3.We support 12 months Warranty for all the device and 6 months for
the batteries. Extension warranty, it costs 10% at the first year,
and 20% for the second year.
Question 2: Are you a manufacturer of rugged devices?
Yes, we have our own R&D team including software and hardware
engineers and assembly factory,mainly producing industrial PDA and
rugged tablet ,.
Question 3: What's for payment term and delivery term ?
1.It's generally 40%-100% TT in advance for all orders. Meanwhile,
Paypal or West Union is acceptable.
2. Exw Shenzhen or FCA HK as Trade Term.
Question 4: How long is the delivery time?
The delivery time of rugged android tablet goods is different from
quantities:
for samples, It's about 3-5 working days;
If 100~500 pcs, it's about 10--20 working days;
If More than 500 pcs, It's about 20-30 working days.
Question 5: Who are your customers?
1. Our products have been sold to worldwide,especially market in
South/North America, Europe, Asia, Africa Mid-east, etc.
2.The market share is increasing quickly every year and we get more
and more positive feedbacks from our customers
Question 6: What's your MOQ?
The MOQ of rugged tablet is 1 piece.
Bright Alliance based on the continuous development of industrial
terminal technology and independently develops the industrial
rugged devices, including Handheld computer and rugged tablet,And a
variety of accessories can be selected to meet customers' demand
for industry, aviation, aerospace, vehicle-mounted, police,
education, exploration, fishing animal husbandry, finance and other
industries.now our customers are mainly system integrator and
solution provider,create new service and usages to the end users.
