| Product Outlook |
| Type | Details | Standard Configuration |
| Product Form | Type | Rugged handheld device ( Rugged PDA) |
| Dimension | 185*93*20.7mm |
| Weight | device unit 380g |
| Device Color | black |
| LCD | Screen Size | 5.98",16:9 ,720*1280, 720P,IPS screen,430 Nits |
| TP | Touch Panel | 5points Capacitive,G+FF,Corning Gorilla Glass, Rigidity: above
7H-Anti-scratch,TP thickness:1.1mm,COF,support glove/wet hand touch |
| Camera | Front/rear | front 2.0MP ,Rear 5.0MP automatic focusing |
| Speaker | Built-in | build in 8Ω/0.8W waterproof speaker x 1 |
| Mic | Built-in | Sensitivity::-42db, output resistance2.2kΩ |
| Battery | Type | Li_polyment, removeable battery |
| Capacity | 3.7V/5000mAh,4hrs |
| System Hardware Configuration |
| Type | Details | Description |
| CPU | Type | intel cherrytrail Z8350,1.44Ghz-1.92GHz |
| GPU | Type | Intel® HD Graphics |
| RAM | DDR3L | 2GB,option 4GB |
| ROM | Emmc | 32GB,option 64GB |
| Electronic compass | Built-in | electronic compass |
| Gyroscope | Built-in | gyroscope |
| G_sensor | Built-in | Gravity acceleration sensor |
| Network Connections |
| Type | Details | Descriptions |
| WIFI | WIFI module | WIFI 802.11(a/b/g/n) frequency 2.4G+5.8G dual band WIFI |
| Bluetooth | Built-in | BT4.2 (BLE) class1.5 transmission distance:10m |
| 3G | Built-in | IC:H350-A30-20 bands: WCDMA(900/2100MHz) GSM(900/1800MHz), HSDPA
7.2Mbps, HSUPA 5.7Mbps |
| NFC | Built-in | NXP NFC 13.56MHz support SO/IEC 14443A/14443B/15693/18092/mifare
protocol, Card reading distance: 4cm |
| 1D/2D Barcode scanner | Built-in | 2D QR code Scanner: Honeywell N3680 Hardware decode
Scan Speed: 50 times/s
Optical resolution: 5mil
Support code system: Data Matrix Inverse Maxicode, QR Code,
MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin
Inverse. |
| GPS | Built-in | support satellites: GLONASS,QZSS,GPS; Capture sensitivity:-160 dBm;
Cool Start Time: <30s, hot Start Time: <28 seconds,
frequency: 0.25 Hz … 10 MHz (configurable) |
| Key button |
| Type | Details | Description |
| power | power on/off button | x1 |
| volume | Volume + - | Volume + - x2 |
| barcode | barcode scan key | barcode key(left,right) x2 |
| HOME | system HOME key | x1 |
| Interface |
| Type | Details | Descriptions |
| Micr usb | charging and data transmission | charging and OTG x1 |
| Earphone Jack | audio output | ∮3.5mm standard earphone jack x1 |
| TF Card | Extensive External Memory | support SDHC/SDXC x1 max:128G |
| SIM Card | 3G/4G SIM card | SIM card interface x1 |

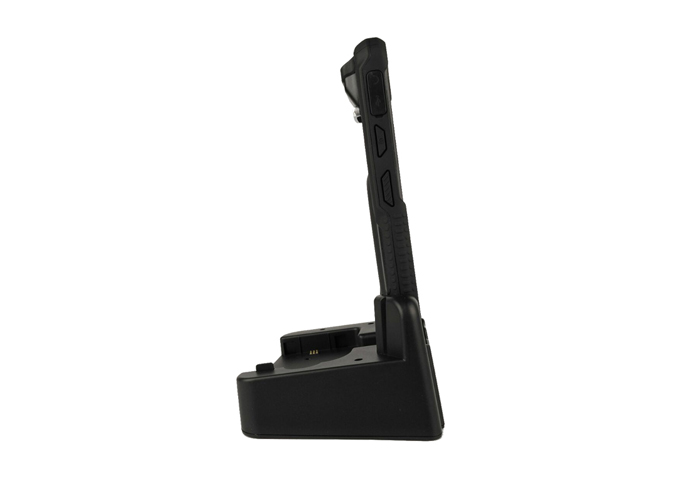

| POGO PIN 2 | docking charging | be used to docking charge x1 |
| Standard Accessories |
| Type | Details | Description |
| USB cable | USB connect cable | Micro USB cable 5P L=1.2M 4core plus aluminum foil plus screen
shielding |
| power adapter | standard | Input:100~240VAC 50/60HZ output:5VDC 2.5A USB ,adapter for ( EU,
US,UK) |
| Software Configuration |
| Type | Details | Description |
| Operation System | OS version | windows 10 IOT |
|
|
| Reliability |
| Type | Details | Descriptions |
| Product Reliability | Drop Height | 1.2m composite wood floors, in operation status |
| Operate Temperature | ‘-10 °C to 50 °C (-20 °C to 60 °C optional) |
| Store Temperature | ’-30 °C to 70 °C |
| Humidity | Humidity: 95% Non-Condensing |
