Industrial Pda Windows Mobile Handheld Data Terminal Handheld
Terminal BH862
◪ 6.0 inch IP67 rugged tablet with option Barcode scanner
◪ Quad core Intel cherry trail Z8350
◪ Corning Gorrila glass and Double injection housing to make it shockproof
2GB RAM /32GB ROM memory
◪ Dual band WIFI,BT 4.0,2G/3G/LTE wireless transmit
Support GPS and GLOANSS navigation
◪ Double camera 2.0M+5M
◪ Built in 5000mah big battery
Scenario: Customization Apps for special use.Logistic

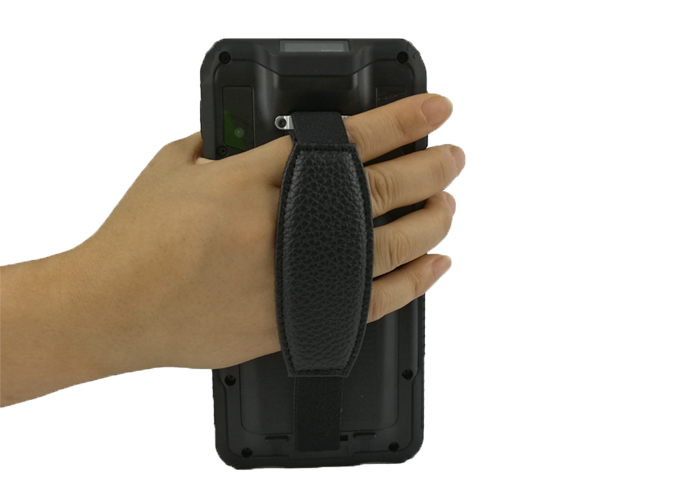

| Product Outlook |
| Type | Details | Standard Configuration |
| Product Form | Type | Rugged handheld device ( Rugged PDA) |
| Dimension | 185*93*20.7mm |
| Weight | device unit 380g |
| Device Color | black |
| LCD | Screen Size | 5.98",16:9 (TP and screen adopts full joint technology),720*1280,
720P,IPS screen,430 Nits |
| TP | Touch Panel | 5points Capacitive,G+FF,Corning Gorilla Glass, Rigidity: above
7H-Anti-scratch,TP thickness:1.1mm,COF,support glove/wet hand touch |
| Camera | Front/rear | front 2.0MP ,Rear 5.0MP automatic focusing |
| Speaker | Built-in | build in 8Ω/0.8W waterproof speaker x 1 |
| Mic | Built-in | Sensitivity::-42db, output resistance2.2kΩ |
| Battery | Type | Li_polyment, removeable battery |
| Capacity | 3.7V/5000mAh,4hrs |
| System Hardware Configuration |
| Type | Details | Description |
| CPU | Type | intel cherrytrail Z8350,1.44Ghz-1.92GHz |
| GPU | Type | Intel® HD Graphics |
| RAM | DDR3L | 2GB,option 4GB |
| ROM | Emmc | 32GB,option 64GB |
| Electronic compass | Built-in | electronic compass |
| Gyroscope | Built-in | gyroscope |
| G_sensor | Built-in | Gravity acceleration sensor |
| Network Connections |
| Type | Details | Descriptions |
| WIFI | WIFI module | WIFI 802.11(a/b/g/n) frequency 2.4G+5.8G dual band WIFI |
| Bluetooth | Built-in | BT4.2 (BLE) class1.5 transmission distance:10m |
| 3G | Built-in | IC:H350-A30-20 bands: WCDMA(900/2100MHz) GSM(900/1800MHz), HSDPA
7.2Mbps, HSUPA 5.7Mbps |
| NFC | Built-in | NXP NFC 13.56MHz support SO/IEC 14443A/14443B/15693/18092/mifare
protocol, Card reading distance: 4cm |
| 1D/2D Barcode scanner | Built-in | 2D QR code Scanner: Honeywell N3680 Hardware decode
Scan Speed: 50 times/s
Optical resolution: 5mil
Support code system: PDF417, MicroPDF417, MicroQR, QR Inverse,
Aztec, Aztec Inverses, Han Xin, Han Xin Inverse. |
| GPS | Built-in | support satellites: GLONASS,QZSS,GPS; Capture sensitivity:-160 dBm;
Cool Start Time: <30s, hot Start Time: <28 seconds,
frequency: 0.25 Hz … 10 MHz |
| Key button |
| Type | Details | Description |
| power | power on/off button | x1 |
| volume | Volume + - | Volume + - x2 |
| barcode | barcode scan key | barcode key(left,right) x2 |
| HOME | system HOME key | x1 |
| Interface |
| Type | Details | Descriptions |
| Micr usb | charging and data transmission | charging and OTG x1 |
| Earphone Jack | audio output | ∮3.5mm standard earphone jack x1 |
| TF Card | Extensive External Memory | support SDHC/SDXC x1 max:128G |
| SIM Card | 3G/4G SIM card | SIM card interface x1 |
| POGO PIN 2 | docking charging | (4pin machine buttom)be used to docking charge x1 |
| Standard Accessories |
| Type | Details | Description |
| USB cable | USB connect cable | Micro USB cable 5P L=1.2M 4core plus aluminum foil plus screen
shielding |
| power adapter | standard | Input:100~240VAC 50/60HZ output:5VDC 2.5A USB ,adapter for ( EU,
US,UK) |
| Software Configuration |
| Type | Details | Description |
| Operation System | OS version | windows 10 IOT |
|
|
| Reliability |
| Type | Details | Descriptions |
| Product Reliability | Drop Height | 1.2m composite wood floors, in operation status |
| Operate Temperature | ‘-10 °C to 50 °C (-20 °C to 60 °C optional) |
| Store Temperature | ’-30 °C to 70 °C |
| Humidity | Humidity: 95% Non-Condensing |
FAQ
Question 1: what is the windows rugged tablet size from your factory?
Now we have 6.0/7.0/8.0/10.0/12.2 inch etc
Question 1: What's your MOQ?
The MOQ of rugged tablet is 1 piece.
Question 2: How long is the delivery time?
The delivery time of rugged android tablet goods is different from
quantities:
for samples, It's about 3-5 working days;
If 100~500 pcs, it's about 10--20 working days;
If More than 500 pcs, It's about 20-30 working days.
Bright Alliance Services
We focus on rugged tablet and handheld pda over 8 years.
We can support completely Free SDK and technical support for you.
ODM/OEM customization services according to your requirements.
12 months warranty for your devices and other parts. and 6 months
for the batteries. Free maintenance of the devices and part of
accessories replacement in the warranty .if out of the warranty,
you'll have to pay the basic cost for them.
And experienced sales have better communication to get what you
need and save your time
