| Product Outlook |
| Type | Details | Standard Configuration |

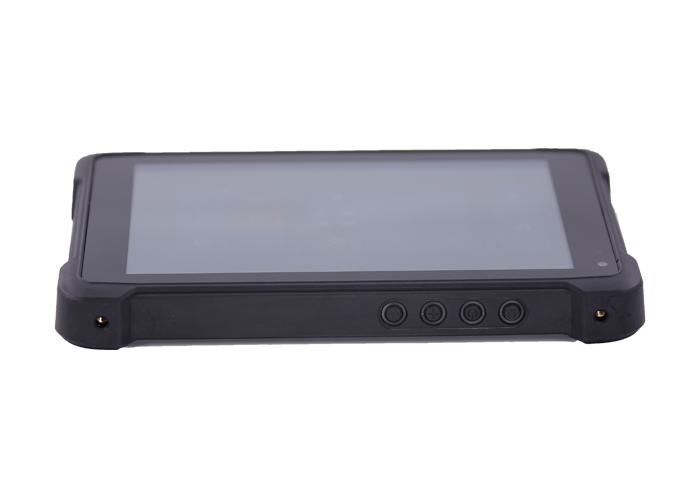

| Product Form | Type | Rugged Tablet |
| Dimension | 227.5*150*21mm |
| Weight | Device unit: 0.558kg ,Unit with giftbox and standard
accessories:1330g,docking:290g |
| Device Color | black |
| LCD | Screen Size | 8“ 16:10 |
| Resolution | 800*1280 IPS |
| Brightness | 250nits |
| TP | Touch Panel | Multipoints Capacitive,G+G,Rigidity: above 7H-Anti-scratch,TP
thickness:1.1mm,COF,support handwriting |
| Camera | Front | Front: 2.0MP with indicator light |
| Rear | Rear: 5.0MP |
| Speaker | Built-in | Embedded 8Ω/0.8W waterproof speakerx 1 |
| Mic | Built-in | Sensitivity:-42db, output resistance2.2kΩ |
| Battery | Type | Build in Polymer li-ion battery |
| Capacity | 3.7V/6000mAh |
| Endurance | 10Hrs |
| System Hardware Configuration |
| Type | Details | Description |
| CPU | Type | Intel Cherrytrail Z8350 |
| Speed | 1.33Ghz-1.92GHz |
| GPU | Type | Intel HD Graphic(Gen7) |
| RAM | DDR3L | 2GB |
| ROM | Emmc | 32GB |
| G_sensor | Built-in | Gravity acceleration sensor |
| Network Connections |
| Type | Details | Descriptions |
| WIFI | WIFI module | WIFI 802.11(a/b/g/n) frequency 2.4G+5.8G dual band WIFI, |
| Bluetooth | Built-in | BT4.2 (BLE) class1.5 transmission distance:10m |
| 3G | option | IC:H350-A30-20 bands: WCDMA(900/2100MHz) GSM(900/1800MHz), HSDPA
7.2Mbps, HSUPA 5.7Mbps, LGA interface |
| 1D/2D Barcode | option | 2D QR code Scanner: MOTO SE2707 Hardware decoder,Scan Speed: 50
times/s,Optical resolution: 5mil
Support code system: PDF417, MicroPDF417, Data Matrix, Data Matrix
Inverse Maxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec
Inverses |
| NFC | option | NXP NFC 13.56MHz support SO/IEC 14443A/14443B/15693/18092/mifare
protocol, Card reading distance: 4cm |
| GPS | option | gps+glonass |
| Interface Configuration |
| Type | Details | Descriptions |
| TF slot | Extensive External Memory | support SDHC/SDXC x1 max: 128G |
| SIM slot | SIM card | SIM card x1 |
| USB interface | data transmission | USB 2.0*1 (Host)for windows |
| Earphone Jack | Audio Output | ∮3.5mm standard earphone jack x1 |
| DC Jack | Power | DC 5V 3A ∮3.5mm Power connector x1 |
| HDMI interface | Video Output | HDMI 1.4a Type C x1 |
| Extensive Slot | pogo Pin | 12pin Pogo Pin x1 option |
| Power on | press key | power key x1 |
| Volume + - | press key | power key x1,Volume + - x2 |
| Standard Accessories |
| Type | Details | Description |
| OTG cable | OTG cable | USB OTG to MICRO USB cable length:45mm |
| USB cable | USB cable | USB to micro 5P L=1.2M 4core aluminum foil shield cable |
| Power Adaptor | Standard | AC100V ~ 240V, 50Hz/60Hz output DC 5V/3A USA Standard CE approval |
| Software Configuration |
| Type | Details | Description |
| Operation System | OS version | windows 10 HOME or Windows 10 Pro |
|
|
| Product Certificate |
| Type | Details | Description |
| Certificate System | IP67 | IPX7
Method name:short time submerging test
test device and test condition:submerge water box.the size should
make the testing sample into submerge box and after then , the
distance from sample bottom to water surface at least 1m. and
distance from sample top side to water surface at least 0.15m.
Testing time: 30 min
|
| CE | YES |
| 810G | YES |
| Battery | UN38.3, MSDS, IEC62133 |
| Reliability |
| Type | Details | Descriptions |
| Product Reliability | Drop Height | 1.2m composite wood floors, in operation status |
| Operate Temperature | ‘-10 °C to 50 °C (-20 °C to 60 °C optional) |
| Store Temperature | ’-30 °C to 70 °C |
| Humidity | Humidity: 95% Non-Condensing |
