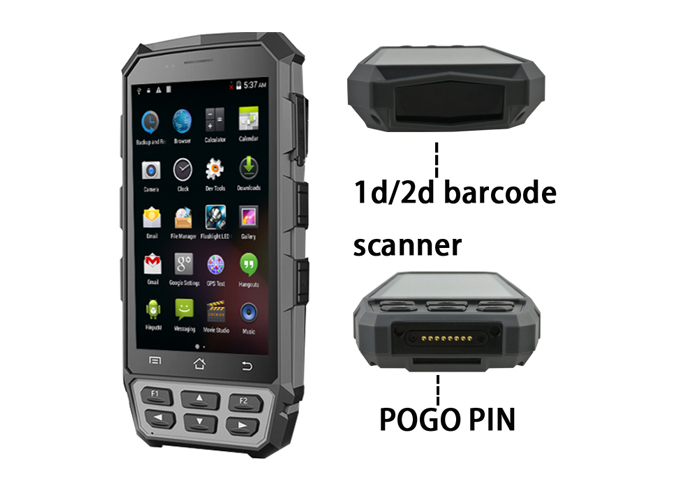

RFID Handheld Terminal Handheld RFID Reader Rugged PDA Android 5.0
Inch BH95
5.0 inch IP65 handheld RFID reader with long range UHF RFID
reader,built in UHF RFID Reader,NFC reader,Barcode
scanner,fingerprint etc,Corning Gorilla glass touch panel and
double injection mould housing sealed completely for better
protection,MTK Quad core CPU and Android 7.0 OS,2.4/5.8G WIFI,BT
4.0 and 2G/3G/LTE for data transfer,with 8.0M rear camera ,the most
important with 4500mah big battery for long time working,for the
memory,And we also have hand strap as standard accessories,Now our
customers they mainly use the devices to warehouse management,goods
tracking etc
| Physical Parameters | Weight | 370g(including battery and wrist strap |
| Size | 170mm(H)x85mm(W)x23mm(D)±2 mm |
| Basic | CPU | Quad A53 1.3GHz quad-core |
| Memory | 2GB+16GB |
| OS | Android 7.0 |
| Display | Gorilla Glass 3, 5.0 inch, TFT-LCD, 1280x720 |
| Touch Screen | 5 point capacitive touch screen backlight |
| WWAN | TDD-LTE B38/B39/B40/B41 FDD-LTE B1/B2/B3/B4/B7/B17/B20
WCDMA 850/1900/2100MHz GSM 850/900/1800/1900MHz |
| Camera | 8.0MP Camera, Auto-focus with LED flash |
| WIFI | 2.4GHz/5.8GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac |
| Bluetooth | Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0 |
| GPS | GPS(embedded A-GPS), accuracy of 5 m |
| Battery | Rechargeable li-ion polymer, 3.7V, 4500mAh |
| Optional Modules |
RFID
(Optional) | Ultra High frequency | 1-1.5 m distance for EPC C1 GEN2/ISO 18000-6C protocol of
865~868MHz or 920~925MHz tag reading, Circular antenna(2dBi) |
| High frequency | 2-8 cm range for ISO15693, ISO14443A double deal 13.56 MHz tags for
reading and writing |
| PSAM | Support two PSAM card |
| Low frequency | 125KHz/134.2KHz, ISO 11784&11785, reading range up to 2-10cm |
Active in Close Communication
(Optional) | Active 2.45G | Reading range more than 200 m |
| 433MHz | Reading range more than 200m |
1D Barcode
(Optional) | Module | 1D Laser Engine Symbol SE955 |
| Support | All major 1D barcodes, Code 39, Code 93, Code 128, Code bar,
EAN-13, EAN-8, UPC-A, UPC-E, ITF 14, UCC/EAN-128, ITF 25, Matrix
25, EAN-128, ISBN, ect. |
2D Barcode
(Optional) | Module | Newland 3396 or Honeywell 6603 |
| Support | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code,
Micro QR code, Aztec, MaxiCode, Postal Codes, Dutch Postal. etc. |
Fingerprint
(Optional) | Sensor types | TCS1CT, Capacitive, area sensor 508 DPI or FBI certification
fingerprint |
| Performance | FRR<0.008%, FAR<0.005% |
| Capacity | 1000 |
| PSAM SECURITY(OPTIONAL) | Protocol | ISO 7816 |
| Baudrate | 9600, 19200, 38400,43000, 56000, 57600, 115200 |
| Slot | 2 slots(maximum) |
| Development Environment |
| SDK | HHW Software Development Kit |
| Language | Java |
| Environment | Android Studio or Eclipse |
| Accessories |
| Accessories | Standard | 1xPower Supply; 1xLithium Polymer Battery; 1xDC charging cable;
1xUSB data cable |
| Optional | Carrying case; Cradle |
| Other features |
| Environment | Operating temperature | (-20℃) - (50℃) |
| Storage temperature | (-20℃) - (70℃) |
| Relative humidity | 5%RH to 95%RH |
| ESD | ±15kv air discharge, ±8kv direct discharge |
Bright Alliance based on the continuous development of industrial
terminal technology, and independently develops the industrial
rugged devices, including Handheld computer and rugged tablet for
many outdoor fileds or industrial fileds,And a variety of
accessories can be selected to meet customers' demand for industry,
aviation, aerospace, vehicle-mounted, police, education,
exploration, fishing animal husbandry, finance and other
industries.now our customers are mainly system integrator and
solution provider,create new service and usages to the end users
Now we mainly sell to European/USA/South America/Middle east etc
Keep moving for cooperation with more partners
FAQ:
Question 1: What's your MOQ?
The MOQ of rugged tablet is 1 piece.
Question 2: What's for payment term and delivery term ?
1.It's generally 40%-100% TT in advance for all orders. Meanwhile,
Paypal or West Union is acceptable.
2. Exw Shenzhen or FCA HK as Trade Term.
Question 3: how many modules can be in one devices?
For BH95,normally we can add 3-4 modules,but better within 3
modules.for example
2D+UHF,2D+Barcode scanner,UHF+Fingerprint etc
