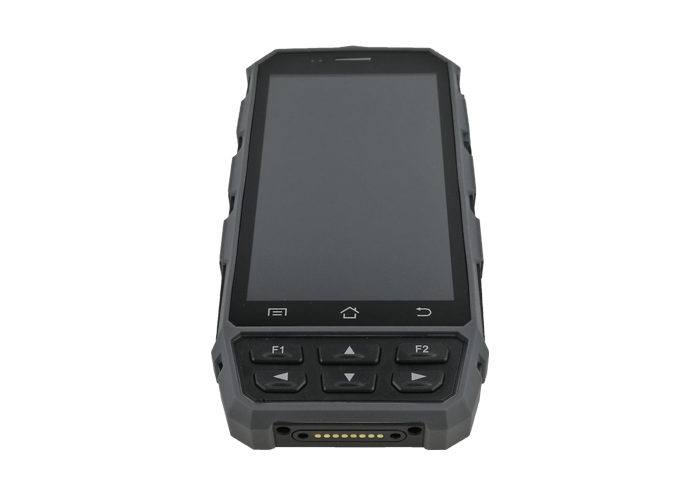

RFID Handheld Reader Handheld RFID Reader PDA For Warehouse 5.0
Inch BH95
Standard accessories hand strap,wall charger etc
Option:docking station,pistol grip,bags etc
Scenario install customers app for special projects,goods
tracking,security checking
Corning Gorilla tempered glass and Double injection mould housing
to make it shockproof
Quad core Android 7.0 o.s
5 inch IP65 720*1280
RAM 2GB/ROM 16GB or 3GB/32GB
Dual band WIFI,BT 4.0,2G/3G/LTE wireless transmit
Support GPS navigation
Rear 8.0M camera
4500mah big battery or 8000 mah for pistol grip version
Option Barcode scanner ,rfid reader,nfc,fingerprint etc and
customers extra modules
| Physical Parameters | Weight | 370g(including battery and wrist strap |
| Size | 170mm(H)x85mm(W)x23mm(D)±2 mm |
| Basic | CPU | Quad A53 1.3GHz quad-core |
| Memory | 2GB+16GB |
| OS | Android 7.0 |
| Display | Gorilla Glass 3, 5.0 inch, TFT-LCD, 1280x720 |
| Touch Screen | 5 point capacitive touch screen backlight |
| WWAN | TDD-LTE B38/B39/B40/B41 FDD-LTE B1/B2/B3/B4/B7/B17/B20
WCDMA 850/1900/2100MHz GSM 850/900/1800/1900MHz |
| Camera | 8.0MP Camera, Auto-focus with LED flash |
| WIFI | 2.4GHz/5.8GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac |
| Bluetooth | Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0 |
| GPS | GPS(embedded A-GPS), accuracy of 5 m |
| Battery | Rechargeable li-ion polymer, 3.7V, 4500mAh |
| Optional Modules |
RFID
(Optional) | Ultra High frequency | 1-1.5 m distance for EPC C1 GEN2/ISO 18000-6C protocol of
865~868MHz or 920~925MHz tag reading, Circular antenna(2dBi) |
| High frequency | 2-8 cm range for ISO15693, ISO14443A double deal 13.56 MHz tags for
reading and writing |
| PSAM | Support two PSAM card |
| Low frequency | 125KHz/134.2KHz, ISO 11784&11785, reading range up to 2-10cm |
Active in Close Communication
(Optional) | Active 2.45G | Reading range more than 200 m |
| 433MHz | Reading range more than 200m |
1D Barcode
(Optional) | Module | 1D Laser Engine Symbol SE955 |
| Support | All major 1D barcodes, Code 39, Code 93, Code 128, Code bar,
EAN-13, EAN-8, UPC-A, UPC-E, ITF 14, UCC/EAN-128, ITF 25. ect. |
2D Barcode
(Optional) | Module | Newland 3396 or Honeywell 6603 |
| Support | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code,
Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US
Planet, UK Postal, Australian Postal. etc. |
Fingerprint
(Optional) | Sensor types | TCS1CT, Capacitive, area sensor 508 DPI or FBI certification
fingerprint |
| Performance | FRR<0.008%, FAR<0.005% |
| Capacity | 1000 |
| PSAM SECURITY(OPTIONAL) | Protocol | ISO 7816 |
| Baudrate | 9600, 19200, 38400,43000, 56000, 57600, 115200 |
| Slot | 2 slots(maximum) |
| Development Environment |
| SDK | HHW Software Development Kit |
| Language | Java |
| Environment | Android Studio or Eclipse |
| Accessories |
| Accessories | Standard | 1xPower Supply; 1xLithium Polymer Battery; 1xDC charging cable;
1xUSB data cable |
| Optional | Carrying case; Cradle |
| Other features |
| Environment | Operating temperature | (-20℃) - (50℃) |
| Storage temperature | (-20℃) - (70℃) |
| Relative humidity | 5%RH to 95%RH(non-condensing) |
| ESD | ±15kv air discharge, ±8kv direct discharge |
FAQ:
Q: What is your guarantee period?
A: SMDT provides 1 (one) year quality guarantee for the products
from your purchase date, except the human damage and force majeure
factor.professional engineer follow after service.
Q: How can I pay for the order?
A: Our payment terms: T/T, Western Union, Paypal, Credit card
Q:Where is your factory located?how to visit?
A:we are located in Shenzhen city,guangdong province China.Welcome
to visit us any working days
Q: Do you provide OEM/ODM service?
A:Yes,we familiar with whole process and we can support
Question 2: how many modules can be in one devices?
For BH95,normally we can add 3-4 modules,but better within 3
modules.for example
2D+UHF,2D+Barcode scanner,UHF+Fingerprint etc
Question 3: do you have any certification for the model?
Yes,now we passed CE/IP65/SOTI etc certification.
