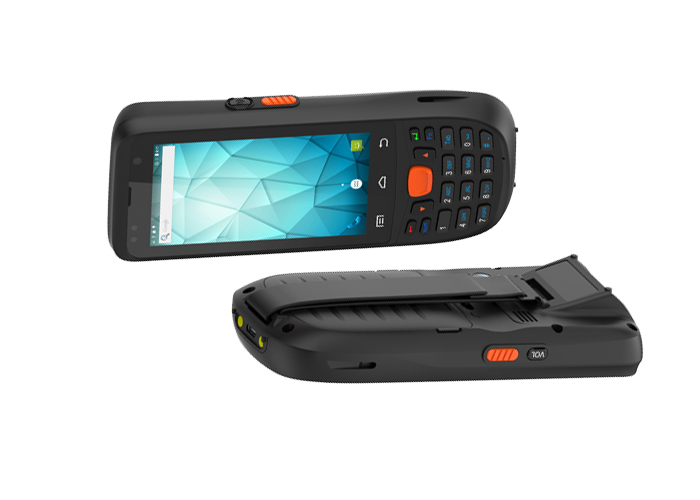

Handheld Logistic Pda Handheld Computer With Barcode Scanner
Handheld Pda BH85
4.0 inch IP65 android pda scanner,Corning Gorilla glass touch panel
and double injection mould housing sealed completely for better
protection,MTK Quad core CPU and Android 7.0 OS,2.4/5.8G WIFI,BT
4.0 and 2G/3G/LTE for data transfer,with 5.0M front camera and 8.0M
rear one,the most important with 4100mah big battery for long time
working,we also have hand strap as standard accessories,Now our
customers they mainly use the devices in warehouse
management,retails etc
| Product Outlook |
| Type | Details | Standard Configuration |
| Product Form | Type | Rugged handheld computer |
| Dimension | 164*71*23 |
| Weight | Device unit: 400g ,Unit with giftbox and standard
accessories:550g,Docking:200g |
| Device Color | fully black |
| LCD | Screen Size | 4.0 inch |
| Resolution | 480*800 |
| Brightness | 300Nit |
| TP | Touch Panel | 5points Capacitive,Corning gorrila glass |
| Camera | Front | Front5.0MP |
| Rear | Rear 8.0MP,with flash and auto-focus |
| Speaker | Built-in | Embedded 8Ω/0.7W speaker x 1 |
| Mic | Built-in | Sensitivity:-42db, output resistance2.2kΩ |
| Battery | type | Li_polyment,battery loadable |
| Capacity | 3.8V/4100mAh |
| Endurance | 12hrs |
| System Hardware Configuration |
| Type | Details | Descriptions |
| CPU | Type | 4core |
| Speed | 1.3GHz |
| GPU | Type | ARM MaliT720-MP3 450MHz |
| RAM | DDR3L | 2GB/ LPDDR3 |
| ROM | Emmc | 16GB |
| Network Connections |
| Type | Details | Descriptions |
| WIFI | WIFI | WIFI 802.11(a/b/g/n) Frequency 2.4G+5.8G dual band WIFI, |
| Bluetooth | Built-in | BT4.0(BLE) class1transmission |
| 3G/4G | Built-in | CMCC 5M:
LTE 1/2/3/4/7/17/20/38/39/40/41
WCDMA 1/2/5/8
TD-SCDMA 34/39
GSM 2/3/5/8 |
| GPS | Built-in | support:GPS;Capture sensitivity::-160 dBm；Cool Start Time:<60
seconds,Hot start time:<28seconds,frequency::0.25 Hz … 10 MHz |
| NFC | Option | ISO/IEC 14443A, ISO/IEC 14443B PCD 106 kbit/s to 848 kbit/s
ISO/IEC 14443A, ISO/IEC 14443B PICC 106 kbit/s to 424 kbit/s
MIFARE reader encryption mechanism (MIFARE 1K/4K)
Reading NFC Forum tags (MIFARE Ultralight, Jewel, FeliCa open
tag,ISO/IEC 14443-4)
Reading DESFire card
ISO/IEC 15693/ICODE reader
NFC-IP1 and NFC-IP2 protocols 106 kbit/s to 424 kbit/s
B’ and MIFARE card emulation
|
| 1D barcode scanner | Option | Honeywell N4313 |
| 2D barcode scanner | Option | SE4710 or 2100 |
| Interface Configuration |
| Type | Details | Descriptions |
| TF slot | Extensive External Memory | support SDHC/SDXC x1 max:64G |
| SIM slot | SIM card | SIMx1 |
| PSAM slot | PSAM card | PSAM*1 |
| Type c interface | data transmission | Type C usb 2.0*1 OTG |
| HOME key | home | HOME*1 |
| Menu Key | Menu | MENU*1, |
| Back Key | Back | BACK*1, |
| number key | number | numbers*10 |
| barcode | barcode | barcode *3 |
| D.C PIN | docking charger | charging function x1 |
| Power on | press key | power key x1 |
| Volume + - | press key | Volume + - x1 |
| Standard Accessories |
| Type | Details | Description |
| USB cable | USB cable | Type c USB cable |
| Power Adaptor | Standard | AC100V ~ 240V,50Hz/60Hz output DC 5V/2A USA Standard CE approval |
| Docking station | Optional | charing |
| bag | optional | holder |
| Software Configuration |
| Type | Details | Description |
| Operation System | OS version | Andriod 7.0 |
| Reliability |
| Type | Details | Descriptions |
| Product Reliability | Drop Height | 1.2m composite wood floors, in operation status |
| Operate Temperature | ‘-10 °C to 50 °C |
| Store Temperature | ’-30 °C to 70 °C |
| Humidity | Humidity: 95% Non-Condensing |
Bright Alliance based on the continuous development of industrial
terminal technology, and independently develops the industrial
rugged devices, including Handheld computer and rugged tablet for
many outdoor fileds or industrial fileds,And a variety of
accessories can be selected to meet customers' demand for industry,
aviation, aerospace, vehicle-mounted, police, education,
exploration, fishing animal husbandry, finance and other
industries.now our customers are mainly system integrator and
solution provider,create new service and usages to the end users
Now we mainly sell to European/USA/South America/Middle east etc
Keep moving for cooperation with more partners
FAQ:
Question 1: What's your MOQ?
The MOQ of rugged tablet is 1 piece.
Question 2: What's for payment term and delivery term ?
1.It's generally 40%-100% TT in advance for all orders. Meanwhile,
Paypal or West Union is acceptable.
2. Exw Shenzhen or FCA HK as Trade Term.
Question 3: What kind of services do you support ?
1.We provide you Free SDK and Technical Support
2.We also provide ODM/OEM Customization Services based to your
demands.
3.We support 12 months Warranty for all the device and 6 months for
the batteries. Extension warranty, it costs 10% at the first year,
and 20% for the second year.
