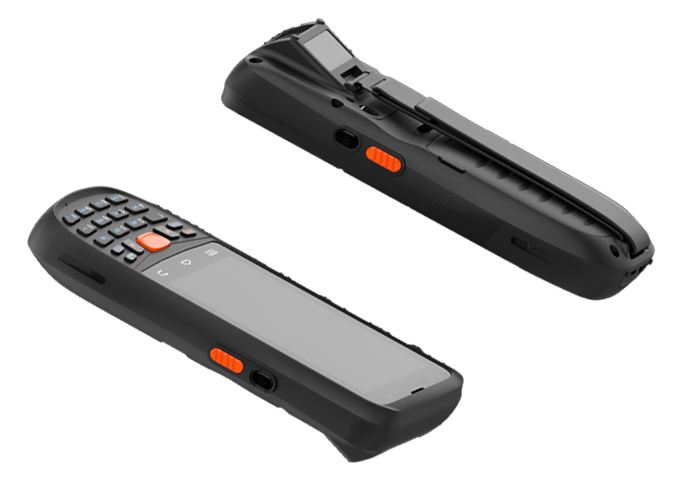

Android Pda With Barcode Scanner Handheld Terminal 4.0 Inch BH85
Standard accessories hand strap,USB cable,charger etc
Scenario warehouse management,logistic,retail etc
4 inch IP65 800*480
Corning Gorilla tempered glass and Double injection mould housing
to make it MIL-STD-810G standard and shockproof
Quad core Android 7.0 O.S
2GB RAM and 16GB ROM
Dual band WIFI,BT 4.0,2G/3G/LTE wireless transmit
Support GPS navigation
Front 5.0M and rear 8.0M camera
4100 mah big battery
Option:docking station,pistol grip etc
| Product Outlook |
| Type | Details | Standard Configuration |
| Product Form | Type | Rugged handheld computer |
| Dimension | 164*71*23 |
| Weight | Device unit: 400g ,Unit with giftbox and standard
accessories:550g,Docking:200g |
| Device Color | fully black |
| LCD | Screen Size | 4.0 inch |
| Resolution | 480*800 |
| Brightness | 300Nit |
| TP | Touch Panel | 5points Capacitive,Corning gorrila glass |
| Camera | Front | Front5.0MP |
| Rear | Rear 8.0MP,with flash and auto-focus |
| Speaker | Built-in | Embedded 8Ω/0.7W speaker x 1 |
| Mic | Built-in | Sensitivity:-42db, output resistance2.2kΩ |
| Battery | type | Li_polyment,battery loadable |
| Capacity | 3.8V/4100mAh |
| Endurance | 12hrs |
| System Hardware Configuration |
| Type | Details | Descriptions |
| CPU | Type | 4core |
| Speed | 1.3GHz |
| GPU | Type | ARM MaliT720-MP3 450MHz |
| RAM | DDR3L | 2GB/ LPDDR3 |
| ROM | Emmc | 16GB |
| Network Connections |
| Type | Details | Descriptions |
| WIFI | WIFI | WIFI 802.11(a/b/g/n) Frequency 2.4G+5.8G dual band WIFI, |
| Bluetooth | Built-in | BT4.0(BLE) class1transmission |
| 3G/4G | Built-in | CMCC 5M:
LTE 1/2/3/4/7/17/20/38/39/40/41
WCDMA 1/2/5/8
TD-SCDMA 34/39
GSM 2/3/5/8 |
| GPS | Built-in | support:GPS;Capture sensitivity::-160 dBm；Cool Start Time:<60
seconds,Hot start time:<28seconds,frequency::0.25 Hz … 10 MHz
(configurable) |
| NFC | Option | ISO/IEC 14443A, ISO/IEC 14443B PCD 106 kbit/s to 848 kbit/s
ISO/IEC 14443A, ISO/IEC 14443B PICC 106 kbit/s to 424 kbit/s
MIFARE reader encryption mechanism (MIFARE 1K/4K)
Reading NFC Forum tags (MIFARE Ultralight, Jewel, FeliCa open
tag,ISO/IEC 14443-4)
Reading DESFire card
ISO/IEC 15693/ICODE reader
NFC-IP1 and NFC-IP2 protocols 106 kbit/s to 424 kbit/s
B’ and MIFARE card emulation
|
| 1D barcode scanner | Option | Honeywell N4313 |
| 2D barcode scanner | Option | SE4710 or 2100 |
| Interface Configuration |
| Type | Details | Descriptions |
| TF slot | Extensive External Memory | support SDHC/SDXC x1 max:64G |
| SIM slot | SIM card | SIMx1 |
| PSAM slot | PSAM card | PSAM*1 |
| Type c interface | data transmission | Type C usb 2.0*1 OTG |
| HOME key | home | HOME*1 |
| Menu Key | Menu | MENU*1, |
| Back Key | Back | BACK*1, |
| number key | number | numbers*10 |
| barcode | barcode | barcode *3 |
| D.C PIN | docking charger | charging function x1 |
| Power on | press key | power key x1 |
| Volume + - | press key | Volume + - x1 |
| Standard Accessories |
| Type | Details | Description |
| USB cable | USB cable | Type c USB cable |
| Power Adaptor | Standard | AC100V ~ 240V,50Hz/60Hz output DC 5V/2A USA Standard CE approval |
| Docking station | Optional | charing |
| bag | optional | holder |
| Software Configuration |
| Type | Details | Description |
| Operation System | OS version | Andriod 7.0 |
| Reliability |
| Type | Details | Descriptions |
| Product Reliability | Drop Height | 1.2m composite wood floors, in operation status |
| Operate Temperature | ‘-10 °C to 50 °C |
| Store Temperature | ’-30 °C to 70 °C |
| Humidity | Humidity: 95% Non-Condensing |
Who we are?
Bright Alliance based on the continuous development of industrial
terminal technology, and independently develops the industrial
rugged devices, including Handheld computer and rugged PDA,Rugged
tablet,And a variety of accessories can be selected to meet
customers' demand for industry, aviation, aerospace,
vehicle-mounted, police, education, exploration, fishing animal
husbandry, finance and other industries.now our customers are
mainly system integrator and solution provider,create new service
and usages to the end users.
Question 1: What kind of services do you support ?
1.We provide you Free SDK and Technical Support
2.We also provide ODM/OEM Customization Services based to your
demands.
3.We support 12 months Warranty for all the device and 6 months for
the batteries. Extension warranty, it costs 10% at the first year,
and 20% for the second year.
Question 2: What's your MOQ?
The MOQ of rugged tablet is 1 piece.
Question 3: What's for payment term and delivery term ?
1.It's generally 40%-100% TT in advance for all orders. Meanwhile,
Paypal or West Union is acceptable.
2. Exw Shenzhen or FCA HK as Trade Term.
