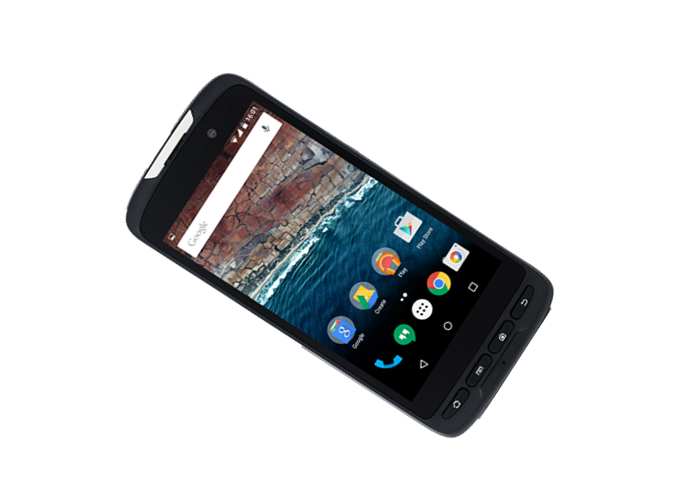

Rugged Android Handheld Computer With Barcode Scanner Android
Handheld Pda BH52
Dual band WIFI,BT 4.0,2G/3G/LTE data transfer
Front 2.0M/Back 8.0M camera
4000mah big battery continuously working 8-10 hours
IP65 5 inch rugged handheld pda
MTK Quad core Android 8.1 o.s
Corning touch panel and Double injection mould housing for better
shockproof
Big memory 2GB RAM and 16GB ROM
GPS+GLONASS navigation
Optional docking cradle
Standard accessories hand strap,charger,USB cable etc
| Product Outlook |
| Type | Details | Standard Configuration |
| Product Form | Type | Rugged handheld Terminal |
| Dimension | 155.8*72*25 |
| Weight | Device unit: g ,Unit with giftbox and standard
accessories:g,Docking:g |
| Device Color | black+black color(bottom shell : black color, front shell: black
color ) |
| LCD | Screen Size | 5.0 inch 16:9 |
| Resolution | 720*1280 IPS |
| Brightness | 300Nit |
| TP | Touch Panel | 5points Capacitive,G+F,,Rigidity: above 7H-Anti-scratch,TP
thickness:1.1mm,COF,support handwrite |
| Camera | Front | Front2.0MP |
| Rear | Rear 8.0MP,with flash and auto-focus |
| Speaker | Built-in | Embedded 8Ω/0.7W speaker x 1 |
| Mic | Built-in | Sensitivity:-42db, output resistance2.2kΩ |
| Earphone | Built-in | built inx 1 |
| Battery | type | Li_polyment,battery loadable |
| Capacity | 3.8V/4000mAh |
| Endurance | 7hrs |
| System Hardware Configuration |
| Type | Details | Descriptions |
| CPU | Type | MT8735b(4core) |
| Speed | 1.1GHz |
| GPU | Type | ARM MaliT720-MP3 450MHz |
| RAM | DDR3L | 2GB/ LPDDR3 |
| ROM | Emmc | 16GB |
| Compass | Built-in | electronic compass |
| G_sensor | Built-in | Gravity acceleration sensor |
| Light sensor | Built-in | yes |
| range sensor | Built-in | yes |
| led indicate | Built-in | In charging led |
| Network Connections |
| Type | Details | Descriptions |
| WIFI | WIFI | WIFI 802.11(a/b/g/n) Frequency 2.4G+5.8G dual band WIFI, |
| Bluetooth | Built-in | BT4.0(BLE) class1transmission distance:10m |
| 3G/4G | Built-in | CMCC 5M:
LTE 1/2/3/4/7/17/20/38/39/40/41
WCDMA 1/2/5/8
TD-SCDMA 34/39
GSM 2/3/5/8 |
| GPS | Built-in | support:GLONASS,QZSS,GPS;Capture sensitivity::-160 dBm；Cool Start
Time:<60 seconds,Hot start time:<28seconds,frequency::0.25 Hz
… 10 MHz (configurable) |
| NFC | optional | ISO/IEC 14443A, ISO/IEC 14443B PCD 106 kbit/s to 848 kbit/s
ISO/IEC 14443A, ISO/IEC 14443B PICC 106 kbit/s to 424 kbit/s
MIFARE reader encryption mechanism (MIFARE 1K/4K)
Reading NFC Forum tags (MIFARE Ultralight, Jewel, FeliCa open
tag,ISO/IEC 14443-4)
Reading DESFire card
ISO/IEC 15693/ICODE reader
NFC-IP1 and NFC-IP2 protocols 106 kbit/s to 424 kbit/s
B’ and MIFARE card emulation
|
| 1D barcode scanner | Optional | Honeywell N4313 |
| 2D barcode scanner | Optional | Zebra 4710 |
| Interface Configuration |
| Type | Details | Descriptions |
| TF slot | Extensive External Memory | support SDHC/SDXC x1 max:64G |
| SIM slot | SIM card | SIMx1 |
| USB2.0 interface | data transmission | Micr usb2.0*1 OTG |
| Earphone Jack | Audio Output | ∮3.5mm standard earphone jack x1 |
| HOME key | home | HOME*1 |
| Menu Key | Menu | MENU*1, |
| Back Key | Back | BACK*1, |
| barcode | barcode | barcode *3 |
| POGO PIN | docking charger | charging function x1 |
| Power on | press key | power key x1 |
| Volume + - | press key | Volume + - x1 |
| Standard Accessories |
| Type | Details | Description |
| USB cable | USB cable | micro USB cable 5P L=1.2M 4 core aluminum foil shield cable |
| Power Adaptor | Standard | AC100V ~ 240V,50Hz/60Hz output DC 5V/2A USA Standard CE approval |
| Docking station | Optional | charing battery and devices |
| Software Configuration |
| Type | Details | Description |
| Operation System | OS version | Andriod 8.1 |
| Software Configuration |
| Type | Details | Description |
| Certificate System | IP65 | IP65 Report: Water resistance:IP-X5,Dust resistance:IP-6X Report ID
no.:SET2015-07677
a.Inner Nozzle diameter:6.3mm； b. water speed:12.5±0.625L/min；
c. Water Pressure:adjust according to water volumn；
d.Central part of water volumn:diameter of 40mm, distance from
nozzle: 2.5M
e.Spray time in surface of panel:about 1min；f.test time:at least
3min；
g.distance between nozzle and panel surface:2.5～3m.
After test,there is no water leakage in sample. |
| CE NB | Y |
| MIL-STD-810G | Y |
| Battery | UN38.3,MSDS,IEC62133 |
| Reliability |
| Type | Details | Descriptions |
| Product Reliability | Drop Height | 1.2m composite wood floors, in operation status |
| Operate Temperature | ‘-10 °C to 50 °C |
| Store Temperature | ’-30 °C to 70 °C |
| Humidity | Humidity: 95% Non-Condensing |
Bright Alliance Services
We focus on rugged tablet and handheld pda over 8 years
We can support completely Free SDK and technical support for you.
ODM/OEM customization services according to your requirements.
12 months warranty for your devices and other parts. and 6 months
for the batteries. Free maintenance of the devices and part of
accessories replacement in the warranty .if out of the warranty,
you'll have to pay the basic cost for them.
And experienced sales have better communication to get what you
need and save your time
FAQ
Q: What is your guarantee period?
A: SMDT provides 1 (one) year quality guarantee for the products
from your purchase date, except the human damage and force majeure
factor.professional engineer follow after service.
Q: What kind of services do you support ?
1.We provide you Free SDK and Technical Support
2.We also provide ODM/OEM Customization Services based to your
demands.
3.We support 12 months Warranty for all the device and 6 months for
the batteries. Extension warranty, it costs 10% at the first year,
and 20% for the second year.
Q: Are you a manufacturer of rugged devices?
Yes, we have our own R&D team including software and hardware
engineers and assembly factory,mainly producing industrial PDA and
rugged tablet ,.
Q:how many pcs we have sold one year.
A:we sold 30000 pcs one year
Q: How can I pay for the order?
A: Our payment terms: T/T, Western Union, Paypal, Credit card
1) For sample order: 100% T/T or Western Union in advance, Paypal
is also acceptable.
2) For bulk order: 40%deposit T/T in advance, balance clear before
pick up or shipment.
Q: How long is the delivery time?
The delivery time of rugged android tablet goods is different from
quantities:
for samples, It's about 3-5 working days;
If 100~500 pcs, it's about 10--20 working days;
If More than 500 pcs, It's about 20-30 working days
