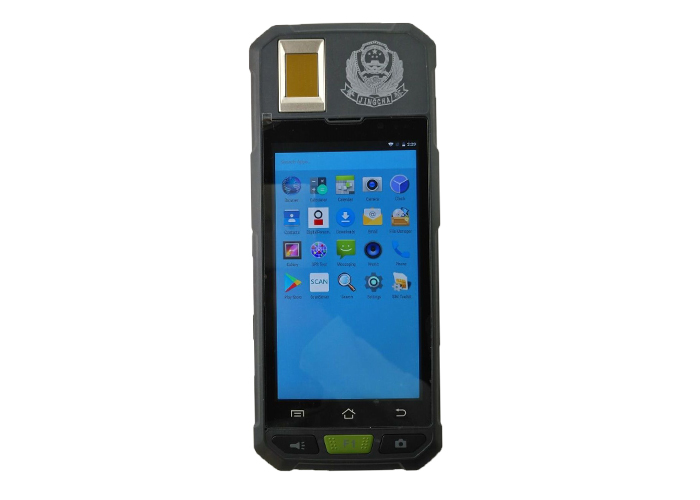

Android Handheld Terminal Rugged Handheld PDA Pos Terminal Handheld
BH88
Dual band WIFI,BT 4.0,2G/3G/LTE data transfer
Back 8.0M camera/front 2.0M
4750mah big battery continuously working 8-10 hours
IP65 5 inch
MTK Quad core Android 7 o.s
Corning touch panel and Double injection mould housing for better
shockproof
Big memory 2GB RAM and 16GB ROM
GPS navigation
Optional LF 125K/134.2K RFID for animal management,Biometric
fingerprint for security etc
Standard accessories hand strap,charger,USB cable etc
| Android multi function PDA BH88 |
| Model No. | BH88 |
| IP Standard | IP65 Waterproof/Shockproof |
| Drop rating | 1m drop to concrete across the operating temperature range |
| Basic | CPU | Quad A53 1.3GHz quad-core |
| Memory | 2GB+16GB |
| OS | Android 7.0 |
| Display | Gorilla Glass 3, 5.0 inch, TFT-LCD, 1280x720 |
| Touch Screen | 5 point capacitive touch screen backlight |
| WWAN | TDD-LTE B38/B39/B40 FDD-LTE B1/B2/B3/B4/B7/B17/B20
WCDMA 850/1900/2100MHz
GSM 850/900/1800/1900MHz |
| Camera | 2.0MP+8.0MP Camera, Auto-focus with LED flash |
| WIFI | 2.4GHz/5GHz Dual Frequency, IEEE 802.11 a/b/g/n |
| Bluetooth | Bluetooth v4.0 |
| GPS | GPS(embedded A-GPS), accuracy of 5 m |
| Battery | Rechargeable li-ion polymer, 3.7V, 4750mAh |
| Optional Modules |
RFID
(Optional) | Ultra High frequency | 2-4 m distance for EPC C1 GEN2/ISO 18000-6C protocol of 865~868MHz
or 902~928MHz tag reading, Circular antenna(2dBi) |
| High frequer | 0-7 cm range for ISO15693, ISO14443A double deal 13.56 MHz tags for
reading and writing |
| PSAM | Support two PSAM card(optional) |
| Low frequency | 125KHz/134.2KHz(FDX-B/HDX), ISO 11784&11785, reading range up
to 2-10cm |
Active in Close Communication
(Optional) | Active 2.45G | Reading range more than 200 m |
| 433MHz | Reading range more than 200m |
1D Barcode
(Optional) | Module | Honeywell N431x |
| Support | All major 1D barcodes, Code 93, Code 128, Code bar, EAN-13, EAN-8,
UPC-A, UPC-E, ITF 14, ITF 25, Matrix 25, EAN-128, ISBN, ect. |
2D Barcode
(Optional) | Module | Honeywell N6603 |
| Support | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code,
Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, Australian
Postal, Japan Postal, Dutch Postal. etc. |
Fingerprint
(Optional) | Sensor types | TCS1CT, Capacitive, area sensor 508 DPI or FBI certification
fingerprint |
| Performance | FRR<0.008%, FAR<0.005% |
| Capacity | 1000 |
| PSAM SECURITY(OPTIONAL) | Protocol | ISO 7816 |
| Baudrate | 9600, 19200, 38400,43000, 56000, 57600, 115200 |
| Slot | 2 slots(maximum) |
| Development Environment |
| SDK | HHW Software Development Kit |
| Language | Java |
| Environment | Android Studio or Eclipse |
| Accessories |
| Accessories | Standard | 1xPower Supply; 1xLithium Polymer Battery; 1xDC charging cable;
1xUSB data cable |
| Optional | Carrying case; Docking Cradle |
| Other features |
| Environment | Operating temperature | (-20℃) - (50℃) |
| Storage temperature | (-20℃) - (70℃) |
| Relative humidity | 5%RH to 95%RH |
| ESD | ±15kv air discharge, ±8kv direct discharge |
| Physical Parameters | Weight | 450g(including battery and wrist strap) |
| Size | 195mm(H)x82mm(W)x23mm(D)±2 mm |
Bright Alliance Services
We focus on rugged tablet and handheld pda over 8 years.
We can support completely Free SDK and technical support for you.
ODM/OEM customization services according to your requirements.
12 months warranty for your devices and other parts. and 6 months
for the batteries. Free maintenance of the devices and part of
accessories replacement in the warranty .if out of the warranty,
you'll have to pay the basic cost for them.
And experienced sales have better communication to get what you
need and save your time
FAQ
Q: What kind of services do you support ?
1.We provide you Free SDK and Technical Support
2.We also provide ODM/OEM Customization Services based to your
demands.
3.We support 12 months Warranty for all the device and 6 months for
the batteries. Extension warranty, it costs 10% at the first year,
and 20% for the second year.
Q: Are you a manufacturer of rugged devices?
Yes, we have our own R&D team including software and hardware
engineers and assembly factory,mainly producing industrial PDA and
rugged tablet ,.
Q:how many pcs we have sold one year.
A:we sold 30000 pcs one year
Q: How can I pay for the order?
A: Our payment terms: T/T, Western Union, Paypal, Credit card
1) For sample order: 100% T/T or Western Union in advance, Paypal
is also acceptable.
2) For bulk order: 40%deposit T/T in advance, balance clear before
pick up or shipment.
Q: Do you have any devices with front NFC reader?
Yes.we have many models the NFC on the front or Top.because
traditional NFC reader if on the backside.it will be block by
holding hands.
Q: How about the shockproof of your models?
For professional rugged devices manufacture,we will make shockproof
from 3 items
1. Corning Gorilla glass
2. Housing,we use double injection mould or outside rubber+inside
Aluminum Alloy/magnesium Alloy
3. Inside structure
Q: how many modules can be in one devices?
For BH88,normally we can add 3-4 modules,but better within 3
modules.for example
2D+UHF,2D+Barcode scanner,UHF+Fingerprint etc
Q: do you have any certification for the model?
Yes,now we passed CE/IP65 etc certification.
