Handheld PDA With Thermal Printer Handheld Terminal With Printer

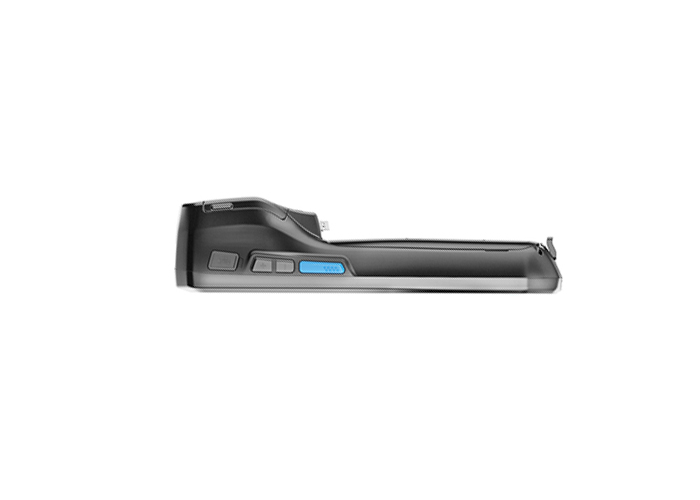

PDA Handheld Computer BH98
5.0 inch IP65 handheld pda with thermal printer, option built in
UHF RFID Reader,Barcode scanner,fingerprint etc,Corning Gorilla
glass touch panel and double injection mould housing sealed
completely for better protection,MTK Quad core CPU and Android 7.0
OS,2.4/5.8G WIFI,BT 4.0 and 2G/3G/LTE for data transfer,with 8.0M
rear camera ,the most important with 4800mah big battery for long
time working,for the memory,And we also have hand strap as standard
accessories,Now our customers they mainly use the devices to
warehouse management,security and printing invoice etc
| Physical Parameters | Weight | 389g,including battery |
| Size | 172mm(L) X 80mm(W) X 27mm(D) |
| Basic | CPU | Quad A53 1.3GHz quad-core |
| Memory | 2GB+16GB |
| OS | Android 7.0 |
| Display | 5.0 inch Corning Gorilla glass,IPS TFT-LCD, 1280x720 |
| Touch Screen | 5 point capacitive touch screen backlight |
| WWAN | TDD-LTE (B1/B2/B3/B5/B7/B8/B20),FDD-LTE (B40),WCDMA B1,B2,B5,B8,GSM
Quad band |
| Camera | 8.0MP Camera, Auto-focus with LED flash |
| WIFI | 2.4GHz/5.8GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac |
| Bluetooth | Support Bluetooth 2.0+EDR/3.0+HS/4.1+HS, transmission distance is
5-10m |
| GPS | GPS(embedded A-GPS), accuracy of 5m |
| Battery | Rechargeable li-ion polymer, 3.7V, 4800mAh |
| Optional Modules |
| Thermal printer | Effective print width | 58mm |
| Print method | Thermal line printing |
| Print speed | Up to 90mm/sec |
| Resolution | 8 dots/mm(203dpi) |
| Print font | 12x24/ 24x24 |
1D Barcode
(Optional) | Module | HONEYWELL N4313, Minde966 |
| Support | All major 1D barcodes, Code 39, Code 93, Code 128, Code bar,
EAN-13, ITF 14, UCC/EAN-128, ITF 25, Matrix 25, EAN-128, ISBN, ect. |
2D Barcode
(Optional) | Module | HONEYWELL N6603, HONEYWELL N3680, NewLand 3096 |
| Support | PDF417, TLC-39, Datamatrix, QR code, Micro QR code, Aztec,
MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal,
Australian Postal, Japan Postal, Dutch Postal. etc. |
Fingerprint
(Optional) | Sensor types | TCS2SS, Capacitive, area sensor 508 DPI or FBI certification
fingerprint |
| Performance | FRR<0.008%, FAR<0.005% |
| Capacity | 1000 |
RFID
(Optional) | Ultra High frequency | 1-1.5 m distance for EPC C1 GEN2/ISO 18000-6C protocol of
865~868MHz or 920~925MHz tag reading, Circular antenna(2dBi) |
| HF/NFC | 2-8 cm range for ISO15693, ISO14443A double deal 13.56 MHz tags for
reading and writing |
| PSAM | Support two PSAM card |
| Low frequency | 125KHz/134.2KHz, ISO 11784&11785, reading range up to 2-10cm |
| Development Environment |
| SDK | HHW Software Development Kit |
| Language | Java |
| Environment | Android Studio or Eclipse |
| Accessories |
| Accessories | Standard | 1xPower Supply; 1xLithium Polymer Battery;1xUSB data cable |
| Optional | Cradle docking station and bag |
| Other features |
| Environment | Operating temperature | (-20℃) - (50℃) |
| Storage temperature | (-20℃) - (70℃) |
| Relative humidity | 5%RH to 95%RH |
| ESD | ±15kv air discharge, ±8kv direct discharge |
Bright Alliance based on the continuous development of industrial
terminal technology, and independently develops the industrial
rugged devices, including Handheld computer and rugged tablet for
many outdoor fileds or industrial fileds,And a variety of
accessories can be selected to meet customers' demand for industry,
aviation, aerospace, vehicle-mounted, police, education,
exploration, fishing animal husbandry, finance and other
industries.now our customers are mainly system integrator and
solution provider,create new service and usages to the end users
Now we mainly sell to European/USA/South America/Middle east etc
Keep moving for cooperation with more partners
FAQ:
Question 1: What's your MOQ?
The MOQ of rugged tablet is 1 piece.
Question 2: What's for payment term and delivery term ?
1.It's generally 40%-100% TT in advance for all orders. Meanwhile,
Paypal or West Union is acceptable.
2. Exw Shenzhen or FCA HK as Trade Term.
Question 1: Do you have any devices with thermal printer?
Yes.BH98 it is 5.0 inch with width 58mm thermal printer
Question 3: do you have any bags to make hands free?
Yes,we customized a bags to carry it.
