UHF RFID Handheld Reader Handheld RFID Reader Biometric Handheld
Terminal BH95
5 inch professional handheld UHF RFID Reader with option Barcode
scanner,Biometric fingerprint,LF RFID etc,we use Corning Gorilla
tempered glass touch panel and double injection mould housing to
make it MIL-STD-810G standard and shockproof with back 8.0M,4500mah
big battery to make it work for whole day,micro USB port it can
support OTG transfer into RJ45,Quad core CPU and Android 7.0
OS,hand strap for better carry,Now our customers they mainly use
the devices in warehouse management,logistic,Bank,security
inspection and livestock management etc
| Physical Parameters | Weight | 370g(including battery and wrist strap |
| Size | 170mm*85mm*23mm ±2 mm |
| Basic | CPU | Quad A53 1.3GHz quad-core |
| Memory | 2GB+16GB |
| OS | Android 7.0 |
| Display | Gorilla Glass 3, 5.0 inch, TFT-LCD, 1280x720 |
| Touch Screen | 5 point capacitive touch screen backlight |
| WWAN | TDD-LTE B38/B39/B40/B41 FDD-LTE B1/B2/B3/B4/B7/B17/B20
WCDMA 850/1900/2100MHz GSM 850/900/1800/1900MHz |
| Camera | 8.0MP Camera, Auto-focus with LED flash |
| WIFI | 2.4GHz/5.8GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac |
| Bluetooth | Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0 |
| GPS | GPS, accuracy of 5 m |
| Battery | Rechargeable li-ion polymer, 3.7V, 4500mAh |
| Optional Modules |
RFID
(Optional) | Ultra High frequency | 1-1.5 m distance for EPC C1 GEN2/ISO 18000-6C protocol of
865~868MHz or 920~925MHz tag reading, Circular antenna(2dBi) |
| High frequency | 2-8 cm range for ISO15693, ISO14443A double deal 13.56 MHz tags for
reading and writing |
| PSAM | Support two PSAM card |
| Low frequency | 125KHz/134.2KHz(FDX-B/HDX), ISO 11784&11785, reading range up
to 2-10cm |
Active in Close Communication
(Optional) | Active 2.45G | Reading range more than 200 m |
| 433MHz | Reading range more than 200m |
1D Barcode
(Optional) | Module | 1D Laser Engine Symbol SE955 |
| Support | All major 1D barcodes, Code 39, Code 93, Code 128, Code bar,
EAN-13, EAN-8, UPC-A, UPC-E, ITF 14, etc |
2D Barcode
(Optional) | Module | Newland 3396 or Honeywell 6603 |
| Support | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code,
Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US
Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal.
etc. |
Fingerprint
(Optional) | Sensor types | TCS1CT, Capacitive, area sensor 508 DPI or FBI certification
fingerprint |
| Performance | FRR<0.008%, FAR<0.005% |
| Capacity | 1000 |
| PSAM SECURITY(OPTIONAL) | Protocol | ISO 7816 |
| Baudrate | 9600, 19200, 38400,43000, 56000, 57600, 115200 |
| Slot | 2 slots(maximum) |
| Development Environment |
| SDK | HHW Software Development Kit |
| Language | Java |
| Environment | Android Studio or Eclipse |
| Accessories |
| Accessories | Standard | 1xPower Supply; 1xLithium Polymer Battery; 1xDC charging cable;
1xUSB data cable |

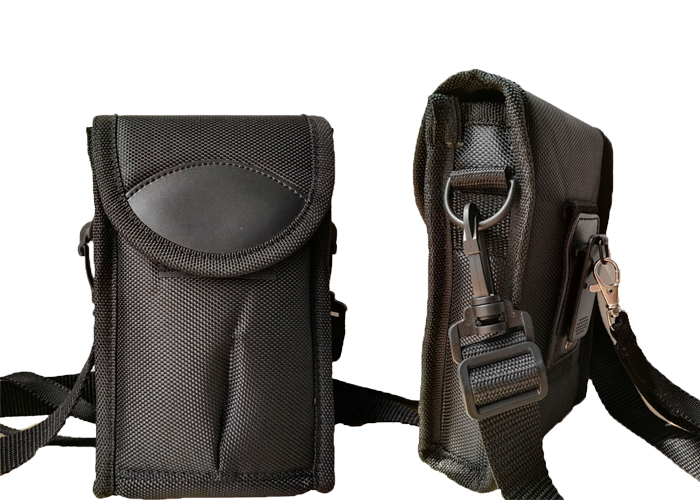

| Optional | Carrying case; Cradle |
| Other features |
| Environment | Operating temperature | (-20℃) - (50℃) |
| Storage temperature | (-20℃) - (70℃) |
| Relative humidity | 5%RH to 95%RH |
| ESD | ±15kv air discharge, ±8kv direct discharge |
FAQ:
Question 1:for the fingerprint sensor,do you have any
certifications?
Yes,our fingerprint module from Crossmatch with FBI certification
Question 1: What kind of services do you support ?
1.We provide you Free SDK and Technical Support
2.We also provide ODM/OEM Customization Services based to your
demands.
3.We support 12 months Warranty for all the device and 6 months for
the batteries. Extension warranty, it costs 10% at the first year,
and 20% for the second year.
Question 2: Are you a manufacturer of rugged devices?
Yes, we have our own R&D team including software and hardware
engineers and assembly factory,mainly producing industrial PDA and
rugged tablet ,.
Question 3: How long is the delivery time?
The delivery time of rugged android tablet goods is different from
quantities:
for samples, It's about 3-5 working days;
If 100~500 pcs, it's about 10--20 working days;
If More than 500 pcs, It's about 20-30 working days.
Question 4: Who are your customers?
1. Our products have been sold to worldwide,especially market in
South/North America, Europe, Asia, Africa Mid-east, etc.
2.The market share is increasing quickly every year and we get more
and more positive feedbacks from our customers
Bright Alliance based on the continuous development of industrial
terminal technology and independently develops the industrial
rugged devices, including Handheld computer and rugged tablet,And a
variety of accessories can be selected to meet customers' demand
for industry, aviation, aerospace, vehicle-mounted, police,
education, exploration, fishing animal husbandry, finance and other
industries.now our customers are mainly system integrator and
solution provider,create new service and usages to the end users.
