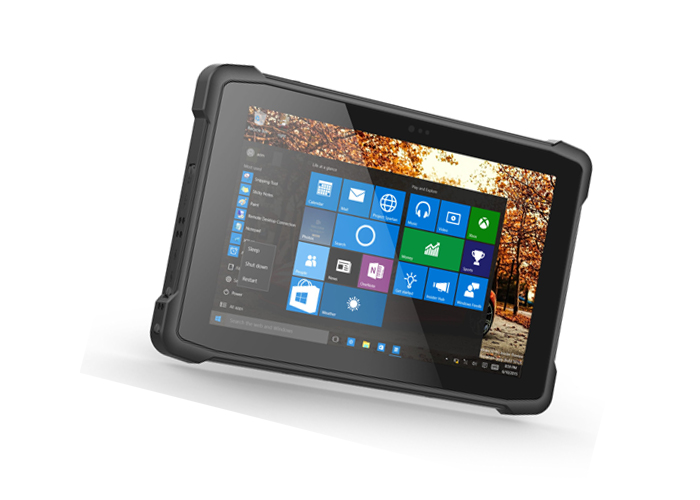

Rugged Windows Tablet With Barcode Scanner Tough Tablet pc 10.1
Inch BT611
◪ IP67 10.1 inch 250 nits brightness display for outdoor use
◪ Intel Quad core windows 10 Home
◪ Corning Gorrila tempered glass and Double injection mould housing for shockproof
Big memory 2GB RAM and 32GB ROM
GPS and GLOANSS double satellite
◪ Dual band WIFI,BT 4.0,2G/3G/LTE wireless transmit
◪ Front 2.0M/Back 5.0M camera
◪ 8000mah big battery continuously working 8-10 hours
◪ Option 1D/2D Barcode scanner/docking station etc
| Product Outlook |
| Type | Details | Standard Configuration |
| Product Form | Type | Rugged Tablet |
| Dimension | 275.5*187.5*22mm |
| Weight | Device unit: 1014g
Unit with giftbox and standard accessories:1990g
Docking:290g,8000mAh battery:250g |
| Device Color | Black(frant and rear Panel: black,Decorate board:black) |
| LCD | Screen Size | 10.1 inch 16:10 |
| Resolution | 800 (RGB)*1280 |
| Brightness | 250 cd/m2 |
| TP | Touch Panel | 10 points Capacitive,G+G,Rigidity: above 7H-Anti-scratch,TP
thickness:1.1mm,COF |
| Camera | Front | Front:2.0MP with chargeing indicator light |
| Rear | Rear: 5.0MP |
| Speaker | Built-in | Embedded 8Ω/0.8W waterproof speaker x 1 |
| Mic | | Sensitivity:-42db, output resistance:2.2kΩ |
| Battery | Type | Lithium-ion polymer battery , pluggable, dimension: 21.8*92.3*9.5mm |
| Capacity | 3.7V/8000mAh |
| Endurance | 8hrs |
| System Hardware Configuration |
| Type | Details | Description |
| CPU | Type | Intel cherry Trail Z8350 |
| Speed | 1.33Ghz-1.92GHz |
| GPU | Type | Intel HD Graphic(Gen7) |
| RAM | DDR3L | 2GB |
| ROM | Emmc | 32GB |
| G_sensor | Built-in | Gravity acceleration sensor |
| Network Connections |
| Type | Details | Descriptions |
| WIFI | WIFI Module | WIFI 802.11(a/b/g/n) Frequency 2.4G+5.8G dual band WIFI, |
| Bluetooth | Built-in | BT4.2 (BLE) class 1 Transmission distance :10m |
| 3G | Option | IC:H350-A30 WCDMA(900/2100MHz)HSDPA 7.2Mbps,HSUPA 5.76Mbps Huawei
MU609 WCDMA Band 1/2/5/8
GSM/GPRS/EDGE: 850 MHz/900
MHz/1800 MHz/1900 MHz |
| GPS | option | Support :GLONASS,QZSS,GPS; Capture sensitivity: -160 dBm；Cool Start
Time:<30second,Hot start time:<28seconds,frequency:0.25 Hz …
10 MHz |
| NFC | option | NXP NFC 13.56MHz Support ISO/IEC 14443A/14443B/15693/18092/mifare
protocol,Card reading distance:4cm |
| Data Collection |
| Type | Details | Description |
| 2D Barcode Scanner | Option | Honeywell N3680 Hardware decoder Optical Resolution:1280*800；5mil
Scan speed:50/s Symbol system: QR Code, MicroQR, QR
Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse |
| Interface Configuration |
| Type | Details | Descriptions |
| TF slot | Extensive External Memory | Support SDHC/SDXC x1 max:128G |
| USB Interface | Extend external memory and data transfer | USB 2.0*1 (Host)for windows Android OTG x1 |
| Earphone Jack | Audio Output | ∮3.5mm standard earphone jack x1 |
| DC Jack | Power | DC 5V 3A ∮3.5mm Power connector x1 |
| HDMI | Video Output | HDMI 1.4a Type C x1 |
| Extensive Slot | pogo Pin | 12pin Pogo Pin x1 Option |
| Standard Accessories |
| Type | Details | Description |
| OTG Cable | OTG Cable | USB OTG to MICRO USB cable length:45mm |
| USB Cable | USB Cable | USB to micro 5P L=1.2M 4core aluminum foil shield cable |
| Power Adaptor | Standard | AC100V ~ 240V,50Hz/60Hz output DC 5V/3A USA Standard CE approval |
| Software Configuration |
| Type | Details | Description |
| Operation System | OS version | windows 10 Home or Pro or IOT Default language:English |
| Product Certificate |
| Type | Details | Description |
| Certificate System | IP67 | IP67 Report: Water resistance:IP-X7,Dust resistance:IP-6X Report ID
no.:SET2015-07677
a.Inner Nozzle diameter:6.3mm； b. water speed:12.5±0.625L/min；
c. Water Pressure:adjust according to water volumn；
d.Central part of water volumn
e.Spray time in surface of panel:about 1min；f.test time:at least
3min；
g.distance between nozzle and panel surface:2.5～3m.
After test,there is no water leakage in sample. |
| CE-NB | Y |
| MIL-STD-810G | Y |
| Battery | UN3803,MSDS,IEC62133 |
| Reliability |
| Type | Details | Descriptions |
| Product Reliability | Drop Height | 100cm composite wood floors, in operation status |
| Operate Temperature | ‘-10 °C to 50 °C (-20 °C to 60 °C optional) |
| Store Temperature | ’-30 °C to 70 °C |
| Humidity | Humidity: 95% Non-Condensing |
| Accessories | Standard | 1 USB cable,1 charger,1 handstrap, |
| Optional | Docking station |
FAQ
Question 1: What's your MOQ?
The MOQ of rugged tablet is 1 piece.
Question 2: How long is the delivery time?
The delivery time of rugged android tablet goods is different from
quantities:
for samples, It's about 3-5 working days;
If 100~500 pcs, it's about 10--20 working days;
If More than 500 pcs, It's about 20-30 working days.
Question 4: Who are your customers?
1. Our products have been sold to worldwide,especially market in
South/North America, Europe, Asia, Africa Mid-east, etc.
2.The market share is increasing quickly every year and we get more
and more positive feedbacks from our customers.
Question 5: Would you like to supply 1 sample for testing?
Yes, Of course. We can provide 1 sample android rugged tablet for
your testing.
Bright Alliance Services
We focus on rugged tablet and handheld pda over 8 years.
We can support completely Free SDK and technical support for you.
ODM/OEM customization services according to your requirements.
12 months warranty for your devices and other parts. and 6 months
for the batteries. Free maintenance of the devices and part of
accessories replacement in the warranty .if out of the warranty,
you'll have to pay the basic cost for them.
And experienced sales have better communication to get what you
need and save your time
