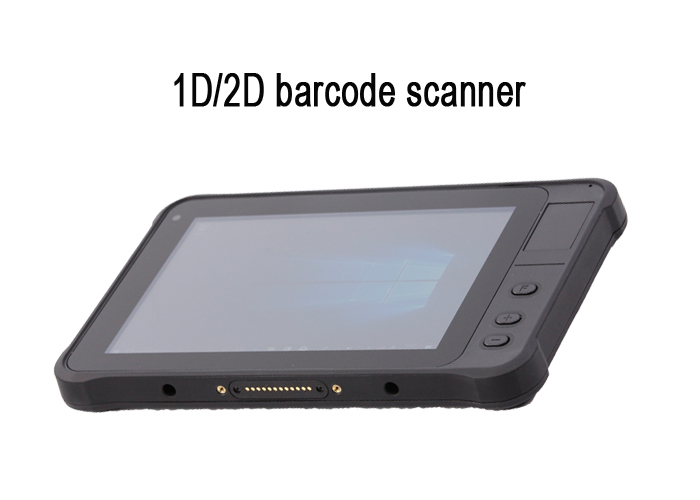

| Product Appearance |
| Type | Details | Standard Configuration |
| Product Form | Product Form | 7 inch rugged Tablet |
| Dimension | 216.98*133.96*21.4 |
| Weight | 680g |
| Product Color | Black (front + rear) |
| LCD | Screen Size | 7 inch 16:10 |
| Resolution | 800*1280 IPS |
| Brightness | Minimum 1000cd/m2 |
| TP | Touch panel | 5 points capacity TP,G+G,hardness over 7H, scratch resistant, TP
thickness:1.1mm,COF, support touch with wearing gloves and wet
finger |
| Camera | Front | Front 2.0MP |
| Rear | Rear 5MP ,Auto focus with flash |
| Speaker | Built-in | built-in 8Ω/1W Boss speaker x 1 |
| Microphone | Built-in | Sensitivity: -42db, output impedance 2.2kΩ |
| Battery(tablet) | Type | Removable Li-polymer battery |
| Capacity | calculate 3.7V/7500mAh |
| Endurance | nearly 10hours |
| System Hardware Configuration |
| Type | Details | Descriptions |
| CPU | Type | Intel Cherrytrail Z8350 |
| Speed | 1.44Ghz-1.92GHz |
| GPU | type | Intel® HD Graphics |
| RAM | DDR3L | 4GB LPDDR3 |
| ROM | Emmc | 64GB EMMC |
| Indicator light | Built-in | Charging indicator light,which is red flash when low power,keeping
on red light when power more than 20% , ,keeping on green light
when full charged .
|
| L/P-Sensor | Built-in | Light/Proximity sensors |
| G_sensor | Built-in | G_sensor |
| Internet Connections |
| Type | Details | Descriptions |
| WIFI | WIFI module | WIFI 802.11(ac/a/b/g/n) dual frequency 2.4G+5.8G WIFI |
| Bluetooth | Built-in | BT4.0 (BLE) class1.5 Transmission distance :10m |
| 3G | Built-in | H350
GSM/GPRS/EDGE Band(MHz):900/1800;WCDMA Band(MHz):900/2100 |
| 4G | Built-in | EC25-E :
LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8
GSM: B3/B8 |
| GPS | Built-in | U-BLOX M8Q GNSS.Support GPS/Beidou/glonass |
| Data collection |
| Type | Details | Descriptions |
| one-dimension barcode | optional | Honeywell N4313,Optical resolution:5 mil,scan speed:50 times/s,Code
system:UPC/EAN, Bookland EAN ,UCC Coupon Code,Code 39,Trioptic Code
39 ,Code 32,Code 93 ,Code 11 |
| Two-dimension barcode | optional | Honeywell N3680/SE4710/6603,Optical resolution:5 mil,scan speed:50
times/sCode system:PDF417, MicroQR, QR Inverse,Aztec,Aztec
Inverses,etc |
|
|
|
| NFC | optional | DS_ST21NFCD_V3:
identification distance :2-4cm |
| HF RFID | optional | 1:read ISO14443A UID；
2:read ISO14443A/B,the 2nd generation UID；
3:read ISO14443A/B/15693/Felica；
|
| ID Module | optional | support reading the 2nd,the 3rd ID card information and the
fingerprint information built-in. |
| Fingerprint | optional | the fingerprint module authenticated by Chinese Ministry of public
security, support the collection of resident fingerprint which
built in their ID card. |
| UHF RFID | Built in | 1:PR9200,recognition distance:1m~1.5M,TTL port
2:M-550 UHF RFID slim all-in-one module: |
| I/O Ports |
| Type | Details | Descriptions |
| TF card | Extending external storage | x1 max:128G |
| SIM card | SIM card storage | SIM x1 |
| USB port | Extending external storage and data exchange | MicroUSB 2.0*1 , Android OTG x1 |
| earphone jack | audio output | ∮3.5mm standard earphone jack x1 |
| DC jack | power | waterproof DC 5V 3A ∮3.5mm DC jack x1 |
| HDMI port | video,audio output | HDMI 1.4a Type C x1 |
| Extension interface | pogo Pin | 12pin Pogo Pin x1( USB + power ) |
| Standard Accessories |
| Type | Details | Descriptions |
| OTG Cable | OTG Cable | USB OTG turn MICRO USB cable length 45mm |
| USB Cable | USB Cable | USB turn micro 5P L=1.2M 4 wires with aluminium foil and shielding |
| Adapter | Standard | AC100V ~ 240V,50Hz/60Hz Output DC 5V/3A Europe standard with CE
certificate |
|
| Software Configuration |
| Type | Details | Descriptions |
| Operation System | Operation System
Version | windows 10 home.option pro or IOT |
|
| Product Certificate |
| Type | Details | Descriptions |
| Certificates System | IP67 | IPX7
Testing:soaking in short time
Testing equipment:soaking tank.
Testing condition:put the sample into the soaking tank which is
filled with water,the distance which is from sample bottom side to
water surface,should be more than 1m. The distance which is from
sample top side to water surface,should be more than 0.15m.
Testing time: 30 min |
| CE NB | Y |
| MIL-STD-810G | Y |
| Battery | UN38.3,MSDS, Aviation report, Sea transportation report, IEC62133 |
| Reliability |
| Type | Details | Descriptions |
| Product reliability | Falling height | from 120cm height to wooden floor with booting status |
| Working temperature | ‘-10 °C to 50°C |
| Storage temperature | ’-30 °C to 70 °C |
| Humidity | Humidity: 95% Non-Condensing |
