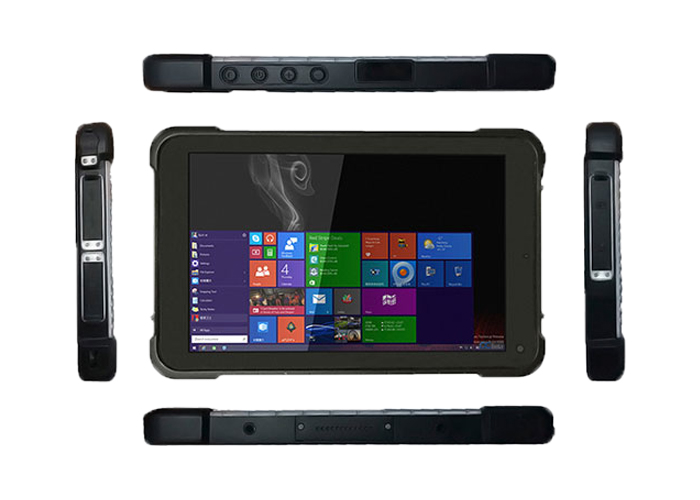

Barcode Scanner Tablet Rugged Tablet With Barcode Industrial Rugged
Tablet BT686
Windows rugged tablet pc IP67 and 8.0 inch,Corning Gorilla glass
touch panel and double injection mould housing, Cherry trail Intel
CPU and Windows 10 os,2.0M front camera and 5.0M rear one,2.4G/5.8G
Dual band WIFI,BT 4.0 and 2G/3G/LTE etc wireless
technology,Removable 8500mah big battery to make it continuously
working 10-14 hours, And there are HDMI,D.C,Micro USB,Type A etc
ports,hand strap to protect sliding from hand,Docking station for
better charging and the scenario warehouse management and some
install their own Application to control special projects
| Product Outlook |
| Type | Details | Standard Configuration |
| Product Form | Type | Rugged Tablet |
| Dimension | 225*143*19mm |
| Weight | Device unit: 0.558kg ,Unit with giftbox and standard
accessories:1330g,docking:290g |
| Device Color | black( bottom shell in black, front shell in black) |
| LCD | Screen Size | 8“ 16:10 |
| Resolution | 800*1280 IPS |
| Brightness | 320 Nit |
| TP | Touch Panel | Multipoints Capacitive,G+G,Rigidity: above 7H-Anti-scratch,TP
thickness:1.1mm,COF,support handwriting |
| Camera | Front | Front: 2.0MP with indicator light |
| Rear | Rear: 5.0MP |
| Speaker | Built-in | Embedded 8Ω/0.8W waterproof speakerx 1 |
| Mic | Built-in | Sensitivity:-42db, output resistance2.2kΩ |
| Battery | Type | Build in Polymer li-ion battery |
| Capacity | 3.7V/8500mAh |
| Endurance | 8Hrs(default 50% volumn,default200 lumens brightness,play 1080P HD
video) |
| System Hardware Configuration |
| Type | Details | Description |
| CPU | Type | Intel Cherrytrail Z8350/Z8300 or Baytrail Z3735F |
| Speed | 1.33Ghz-1.92GHz |
| GPU | Type | Intel HD Graphic(Gen7) |
| RAM | DDR3L | 4GB |
| ROM | Emmc | 64GB |
| Electronic compass | Built-in | electronic compass |
| Gyroscope | Built-in | gyroscope |
| G_sensor | Built-in | Gravity acceleration sensor |
| Network Connections |
| Type | Details | Descriptions |
| WIFI | WIFI module | WIFI 802.11(a/b/g/n) frequency 2.4G+5.8G dual band WIFI, |
| Bluetooth | Built-in | BT4.2 (BLE) class1.5 transmission distance:10m |
| 3G | Built-in | IC:H350-A30-20 bands: WCDMA, GSM, HSDPA 7.2Mbps, HSUPA 5.7Mbps, LGA
interface |
| LTE | Built-in | European version/South American/North American version etc |
| 1D/2D Barcode | option | 2D QR code Scanner: MOTO SE2707 Hardware decoder,Scan Speed: 50
times/s,Optical resolution: 5mil
Support code system: PDF417, MicroPDF417, Data Matrix, Data Matrix
Inverse Maxicode, QR Code, etc |
| NFC | option | NXP NFC 13.56MHz support SO/IEC 14443A/14443B/15693/18092/mifare
protocol, Card reading distance: 4cm |
| GPS | Built-in | U-blox NEO-7, support : GLONASS,QZSS,GPS; Capture sensitivity: -160
dBm; Cool Start Time: <30 seconds, Hot start time: <28
seconds, frequency: 0.25 Hz … 10 MHz |
| Interface Configuration |
| Type | Details | Descriptions |
| TF slot | Extensive External Memory | support SDHC/SDXC x1 max: 128G |
| SIM slot | SIM card | SIM card x1 |
| USB interface | data transmission | USB 2.0*1 (Host)for windows Android OTG x1 |
| Earphone Jack | Audio Output | ∮3.5mm standard earphone jack x1 |
| DC Jack | Power | DC 5V 3A ∮3.5mm Power connector x1 |
| HDMI interface | Video Output | HDMI 1.4a Type C x1 |
| Extensive Slot | pogo Pin | 12pin Pogo Pin x1 |
| Power on | press key | power key x1 |
| Volume + - | press key | power key x1,Volume + - x2 |
| Standard Accessories |
| Type | Details | Description |
| OTG cable | OTG cable | USB OTG to MICRO USB cable length:45mm |
| USB cable | USB cable | USB to micro 5P L=1.2M 4core aluminum foil shield cable |
| Power Adaptor | Standard | AC100V ~ 240V, 50Hz/60Hz output DC 5V/3A USA Standard CE approval |
|
| Software Configuration |
| Type | Details | Description |
| Operation System | OS version | windows 10 HOME Default language: English or Android 5.1
Windows 10 Pro optional |
|
|
| Product Certificate |
| Type | Details | Description |
| Certificate System | IP67 | IPX7
Method name:short time submerging test
test device and test condition:submerge water box.the size should
make the testing sample into submerge box and after then , the
distance from sample bottom to water surface at least 1m. and
distance from sample top side to water surface at least 0.15m.
Testing time: 30 min
|
| CE | YES |
| 810G | YES |
| Battery | UN38.3, MSDS, IEC62133 |
| Reliability |
| Type | Details | Descriptions |
| Product Reliability | Drop Height | 1.2m composite wood floors, in operation status |
| Operate Temperature | ‘-10 °C to 50 °C (-20 °C to 60 °C optional) |
| Store Temperature | ’-30 °C to 70 °C |
| Humidity | Humidity: 95% Non-Condensing |
Bright Alliance Services
We focus on rugged tablet and handheld pda over 8 years.
We can support completely Free SDK and technical support for you.
ODM/OEM customization services according to your requirements.
12 months warranty for your devices and other parts. and 6 months
for the batteries. Free maintenance of the devices and part of
accessories replacement in the warranty .if out of the warranty,
you'll have to pay the basic cost for them.
And experienced sales have better communication to get what you
need and save your time
FAQ
Question 1: how about your product warranty?
Yes,one year except display,touch panel.
Question 1: What's your MOQ?
The MOQ of rugged tablet is 1 piece.
Question 2: How long is the delivery time?
The delivery time of rugged android tablet goods is different from
quantities:
for samples, It's about 3-5 working days;
If 100~500 pcs, it's about 10--20 working days;
If More than 500 pcs, It's about 20-30 working days.
Question 3: Would you like to supply 1 sample for testing?
Yes, Of course
Question 4: What's the total price for 1 sample?
As a manufacturer of rugged devices,the more you buy, the cheaper
it'll be.
The sample price is a little bit higher than the common wholesale
price excluding the freight fee.
